Home > Products > Conventional Milling Machine > Fresadora / Vertical Turret Milling Machine with Low Price

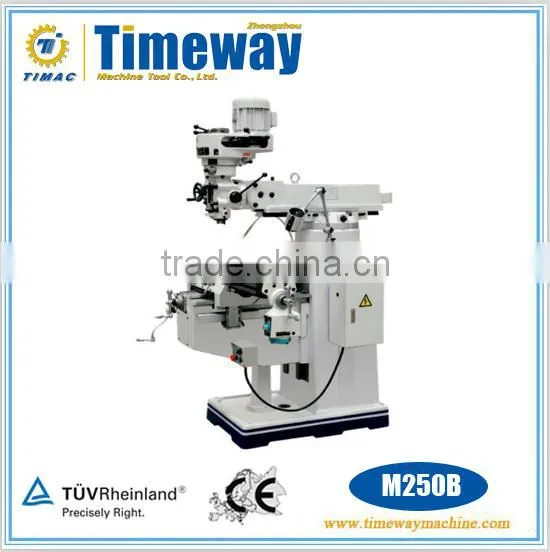

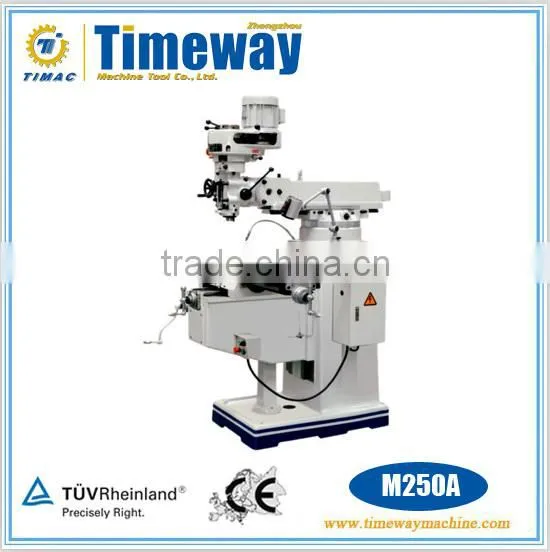

Fresadora / Vertical Turret Milling Machine with Low Price
- 50 Set / Sets per Month
- China Port
- T/T
- CNC Milling Machines,Mini CNC Milling Machines,DIY CNC Milling Machines,Hobby CNC Milling,DIY milling
- Benchtop CNC Mill, desktop cnc mill, Compact CNC, educational cnc, prototype cnc, cnc for school, training cnc
- CNC Milling Machines,Mini CNC Milling Machines,DIY CNC Milling Machines,Hobby CNC Milling,DIY milling
- Small CNC Milling Machine for School, Hobbist,Prototype,DIY
- YORNEW Desktop CNC Lathe Machine, education cnc, vocation cnc, hobby cnc, diy cnc
- Industrial 4.0 intelligent manufacturing production line, FMS, CIM, training system
Product Details
Condition: | New | Brand Name: | TIMAC | Model Number: | M230A/B,M250,M250A/B/U |
Type: | Vertical | CNC or Not: | Normal | Voltage: | as customer's request |
Dimension(L*W*H): | 1400*1476*2030mm | Weight: | 1100-1650kg | Certification: | CE norms, ISO9001 |
Warranty: | 1year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Fresadora, Swivel Head Miller , Turret Milling Machine Machine

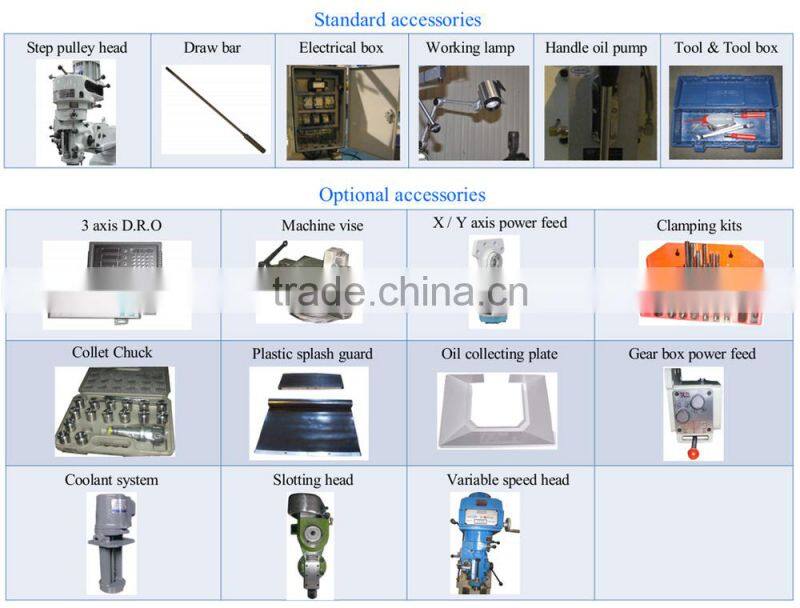

Standard Accessories:
Draw bar, Electric box, Working light, Hand Oil pump, Tool & tool box
Optional Accessories:
Digital readout sysytem(DRO), Machine vise, Power feed unit, Gear box power feed, Clamping kits, ISO30/ISO40 collect chuck, R8 collect chuck, Oil collecting plate, Plastic splash guard, Cooling system.
Parameters:
Specification | Unit | M230A | M230B | M250 | M250A | M250B | M250U | |
Table size | mm | 230×1670 | 254×1270 | 250×1270 | ||||
230×1246 | 254×1370 | |||||||
Longitudianl travel | mm | 650/840 | 850/950 | 770 | ||||
Cross travel | mm | 305 | 420 | 400 | 420 | |||
Vertical travel | mm | 400 | 420 | 400 | ||||
T-slot(NO.& Size) | mm | 3×16 | ||||||
Ram travel | mm | 312 | 470 | |||||
Distance from spndle to table | mm | 15-415 | 0-420 | 0-400 | ||||
Taper of spindle hole | Standard:R8 Optional:ISO30/ISO40 | |||||||
Spindle travel | mm | 127 | ||||||
Spindle speed | rpm | Standard:step16speed 50HZ:65-4500 60HZ:80-5440 | ||||||
Optional:Variable speed 65-4500(M250U:65-3750) | ||||||||
Auto.feed of quill | mm/r | 3steps:0.04(0.0015")/0.08(0.003")/0.15(0.006") | ||||||
Spindle motor | kw/HP | 2.25kw/3HP | ||||||
Head Swivel | 90º | |||||||
Head tilting | 45º | |||||||
Dimension of package | One | mm | 1400×1476×2030 | 1516×1550×2080 | ||||
Two | mm | 1450×1570×2080 | 1650×1790×2170 | |||||
Three | mm | 1450×2180×2080 | 1650×2285×2235 | |||||
Gross weight | kg | 1100 | 1600 | 1550 | 1380 | 1420 | 1650 |
