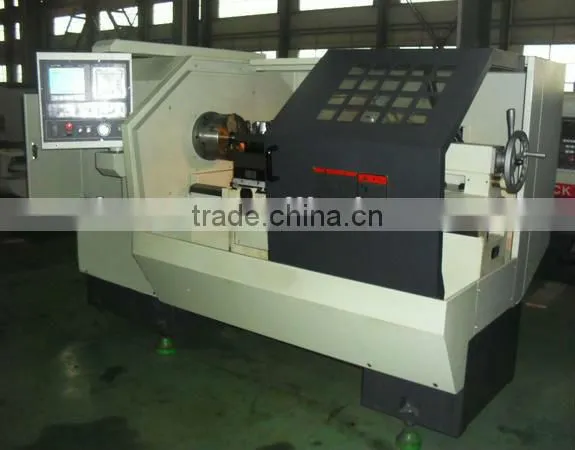

CK-400N High Precision CNC Turning Lathe
- 300 Set / Sets per Month
- China Port
- T/T Credit Card
- Micro CNC Lathe Benchtop CNC Pocket NC Small CNC China Mini Lathe hobby CNC Lathe For Training
- Small CNC Lathe, Metal turning machine, industrial machine, metal working cnc
- Small CNC Lathe, Metal turning machine, industrial machine, metal working cnc, turn-mill machine
- Small CNC Lathe, Metal turning machine, industrial machine, metal working cnc
- Small CNC Lathe, Metal turning machine, industrial machine, metal working cnc, turn-mill machine
- Small CNC Lathe, Metal turning machine, industrial machine, metal working cnc
Product Details
Condition: | New | Type: | Horizontal | CNC or Not: | CNC |
Automatic Grade: | Automatic | Max. Swing Diameter: | 400mm | Place of Origin: | Henan, China |
Brand Name: | TIMAC | Model Number: | CK-400N | Voltage: | As Customers' Request |
Power(W): | 5.5KW | Dimension(L*W*H): | 2630x1400x1550mm | Weight: | 2700kg |
Certification: | ISO, CE | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
1. High precision CNC lathe;2. FANUC 0i mate TD CNC system;
3. FANUC servo feed motor;
4. Driven by servo motors;

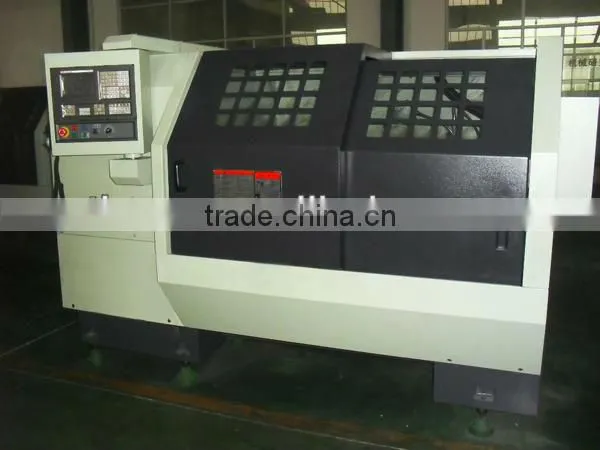

High Precision CNC Lathe
Features:
1. Longitudinal and cross feeds are effected by ball leadscrews. Driven by servo motors.
2. Either vertical or horizontal 4-station or 6-station tool post or gang tools can be selected. The post is located on precision contrite gears with a high repeated positioning accuracy.
3. Both chuck and tailstock are supplied with hydraulic or manual type.
4. The spindle system is high in the rigidity and accuracy.
Specification | CK-400N | CK-500N | |
Max. swing over bed | Ø440mm | Ø500mm | |
Max. swing over carriage | Ø210mm | Ø295mm | |
Width of bed | 405mm | ||
Maximum turned length | 1000mm | 1000mm/1500mm | |
Max. turning length | 900mm | ||
Spindle nose | A2—6 | D8 | |
Spindle bore | Ø56mm | Ø80mm | |
Cone hole diameter and taper of spindle hole | MT.No6 | MT.No7 | |
Steps of spindle speed(Manual) | Variable | 3(variable within each step) | |
Range of spindle speed | 450~2800 r/min | 40~165,160~660,660~2000r/min | |
Rapid feed for Axis Z | 10m/min | ||
Rapid feed for Axis X | 8 m/min | ||
Max. travel of Axis Z | 920mm | ||
Max. travel of Axis X | 290mm | 310mm | |
Min. input | 0.001 mm | ||
Tool post stations | 4-ways | ||
Tool cross section | 25×25 mm | 32×32 mm | |
External diameter | Ø75mm | ||
Taper of bore | MT.No.5 | ||
Max. Traverse | 150mm | ||
X/Z motor torque | 4.7/7Nm | 7/9.5Nm | |
Power of main motor | 5.5 KW | 7.5 KW | |
Power of cooling pump | 90W | ||
Overall dimensions(L×W×H) | 2630×1400×1550mm | 2530×1400×1600mm | |
Net weight | 2700kg | 2850kg | |
Standard Accessories:
FANUC 0i mate TD CNC system, FANUC servo feed motor, Inverter main motor, 3 jaw chuck, 4 station electric tool post, Coolant supply system, Auto. Lubrication unit, Lighting unit, General tools, Operation and maintenance manuals (English edition), etc.
Optional Accessories:
GSK980TD controller, 6 station electric toolpost, Hydraulic chuck, Hydraulic tailstock
