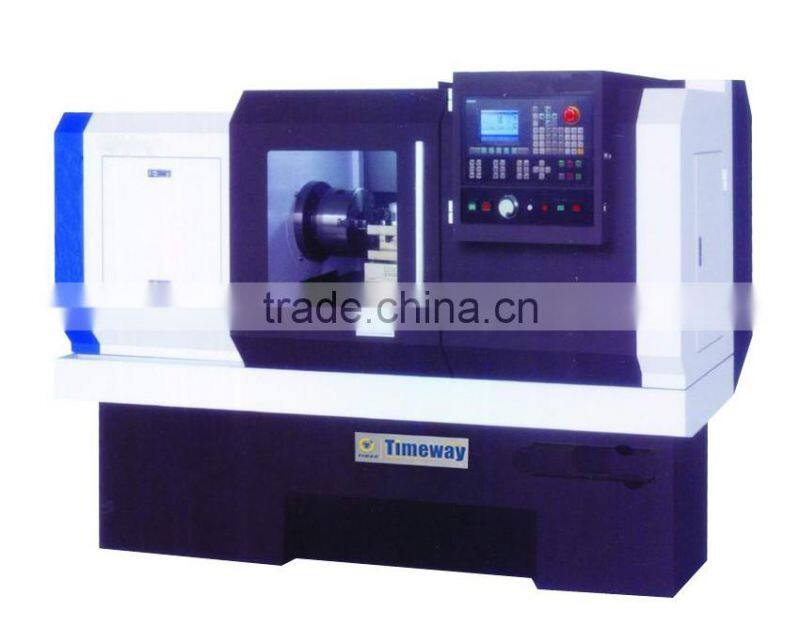

Horizontal CNC Tunring Machine (CNC Lathe)
US$ 5,000 - 12,500
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Horizontal
CNC or Not:
CNC
Payment & Shipping
Payment Methods:
Port of Shipment:
China Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Single Column CNC Vertical LatheUS$ 30,000 - 110,000MOQ: 1 Set -
CK-400N High Precision CNC Turning LatheUS$ 8,000 - 30,000MOQ: 1 Set
-
CNC Vertical LatheUS$ 30,000 - 110,000MOQ: 1 Set
-
Heavy Duty CNC Vertical LatheUS$ 30,000 - 150,000MOQ: 1 Set
-
Double Column CNC Vertical LatheUS$ 30,000 - 110,000MOQ: 1 Set
Condition
New
Type
Horizontal
CNC or Not
CNC
Automatic Grade
Automatic
Max. Swing Diameter
360mm
Brand Name
TIMAC
Model Number
CK-360
Voltage
380V/50HZ/3PH
Power(W)
5.5KW
Dimension(L*W*H)
2170*1540*1950mm
Weight
1700kg(750mm)
Certification
CE ISO
After-sales Service Provided
Engineers available to service machinery overseas

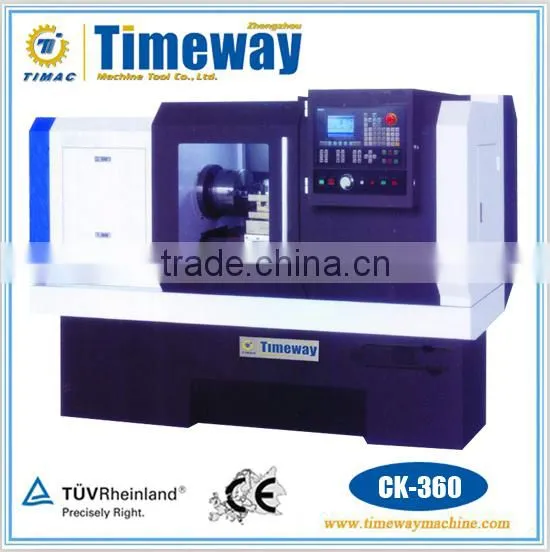

Horizontal CNC Turning Machine (CNC Lathe)
CK-360 CK-400
Main Outlook
Specifications List
Technical Parameters
| Specifications | Units | CK-360 | CK-400 |
| Max. swing diameter over bed | mm | Φ360 | Φ400 |
| Max. swing diameter over carriage | mm | Φ210 | Φ245 |
| Max. length of workpiece | mm | 750/1000/1500 | |
| Range of spindle speed | rpm |
Variable stepless 150-2000; With 2 change gears 60-600/280-1800 |
|
| Spindle bore | mm | Φ60 | |
| Spindle taper | MT6 | ||
| Number of tool carrier | 4/6/8 or gang-type tool carrier | ||
| Transverse min. setting unit of motor | mm | 0.001 | |
| Longitudinal min. setting unit of motor | mm | 0.001 | |
| Transverse moving speed of post(servo/stepper) | m/min | 8 | |
| Longitudinal moving speed of post(servo/stepper) | m/min | 6 | |
| Taper of tailstock quill | MT4 | ||
| Max. range of tailstock quill | mm | 120 | |
| Motor power | kw | 5.5 | |
| Packing size | mm | 2170/2420/2920*1540*1950 | |
| Net weight | kg | 1700/1900/2200 | |
Optional Accessories
Pneumatic chuck
Hydraulic chuck
Pneumatic tailstock
Hydraulic tailstock
Spring fastener
