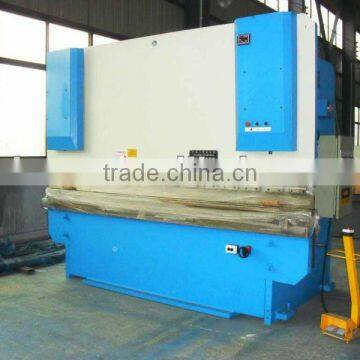

50 tons Pressure x 3200mm Length / Hydraulic Press Brake
Features:
Hydraulic Press Brake
1. Steel-welded construction, vibration to eliminate stress, with high strength and good rigidity.
2. Hydraulic top-strive, steadiness and reliability.
3. Mechanical stop, steel torsion bar to maintain synchronization, high precision.
4. Motorized-adjusting device of backgauge and rams stroke, fine adjusting by handwheel, numerical display.
5. Deflection compensation unit installed on the top die. Manual crowned bottom die holder is adopted for the machine.
6. Travel limit protection, and full machine guarding with safety interloocker.
Parameter:
Specification | Nominal pressure (KN) | Length of working table (mm) | Depth of throat (mm) | Ram stroke (mm) | Number of stroke(m/min-1) | Motor power(kw) |
HPB-40/2200 | 400 | 2200 | 200 | 100 | 11 | 4 |
HPB- 40/2500 | 400 | 2500 | 200 | 100 | 11 | 4 |
HPB-63/2500 | 630 | 2500 | 250 | 100 | 10 | 5.5 |
HPB-63/3200 | 630 | 3200 | 250 | 100 | 10 | 5.5 |
HPB-80/3200 | 800 | 3200 | 320 | 150 | 8 | 7.5 |
HPB-80/4000 | 800 | 4000 | 320 | 150 | 8 | 7.5 |
HPB-100/3200 | 1000 | 3200 | 320 | 150 | 8 | 7.5 |
HPB-100/4000 | 1000 | 4000 | 320 | 150 | 8 | 7.5 |
HPB-125/3200 | 1250 | 3200 | 320 | 150 | 8 | 7.5 |
HPB-125/4000 | 1250 | 4000 | 320 | 150 | 8 | 7.5 |
HPB-160/3200 | 1600 | 3200 | 400 | 180 | 8 | 11 |
HPB-160/4000 | 1600 | 4000 | 400 | 180 | 8 | 11 |
HPB-160/6000 | 1600 | 6000 | 400 | 180 | 7 | 15 |
HPB-200/3200 | 2000 | 3200 | 400 | 200 | 7 | 15 |
HPB-200/4000 | 2000 | 4000 | 400 | 200 | 7 | 15 |
HPB-200/6000 | 2000 | 6000 | 400 | 200 | 7 | 15 |
HPB-250/6000 | 2500 | 6000 | 400 | 250 | 7 | 18.5 |
HPB-300/6000 | 3000 | 6000 | 400 | 250 | 7 | 22 |
HPB-500/6000 | 3000 | 7000 | 400 | 250 | 7 | 37 |
HPB-600/7000 | 4000 | 7000 | 400 | 250 | 7 | 45 |
