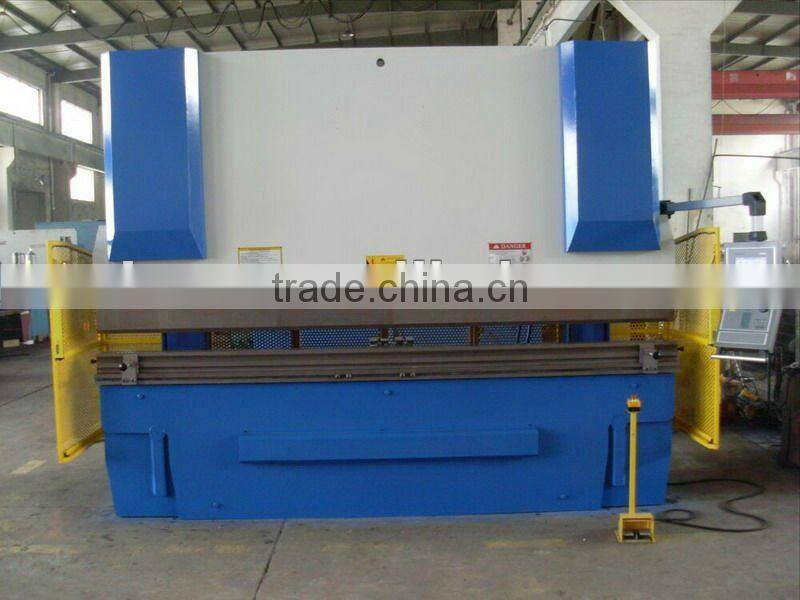

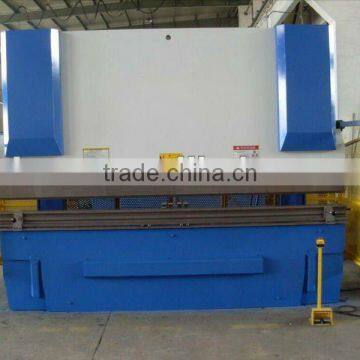

CPB-125 x 4000 / (CNC) Hydraulic Press Brake
- 65 Set / Sets per Month
- Any China Port
- T/T Credit Card PayPal
You May Like
Product Details
| Brand Name | TIMAC | Model Number | CPB-125/4000 | |
| Machine Type | Press Brake | Raw Material | Steel Bar | |
| Power | Hydraulic | Automation | Automatic | |
| Certification | CE |
Product Description
125 tons Pressure x 4000mm Length / Hydraulic Press Brake CPB-125/4000
Features:
Hydraulic Press Brake
1. Steel-welded construction, vibration to eliminate stress, with high strength and good rigidity.
2. Hydraulic top-strive, steadiness and reliability.
3. Mechanical stop, steel torsion bar to maintain synchronization, high precision.
4. Motorized-adjusting device of backgauge and rams stroke, fine adjusting by handwheel, numerical display.
5. Deflection compensation unit installed on the top die. Manual crowned bottom die holder is adopted for the
machine.
6. Travel limit protection, and full machine guarding with safety interloocker.
Parameter:
Specification | Nominal pressure (KN) | Length of working table (mm) | Depth of throat (mm) | Ram stroke (mm) | Number of stroke(m/min-1) | Motor power(kw) |
CPB-40/2200 | 400 | 2200 | 200 | 100 | 11 | 4 |
CPB-40/2500 | 400 | 2500 | 200 | 100 | 11 | 4 |
CPB-63/2500 | 630 | 2500 | 250 | 100 | 10 | 5.5 |
CPB-63/3200 | 630 | 3200 | 250 | 100 | 10 | 5.5 |
CPB-80/3200 | 800 | 3200 | 320 | 150 | 8 | 7.5 |
CPB-80/4000 | 800 | 4000 | 320 | 150 | 8 | 7.5 |
CPB-100/3200 | 1000 | 3200 | 320 | 150 | 8 | 7.5 |
CPB-100/4000 | 1000 | 4000 | 320 | 150 | 8 | 7.5 |
CPB-125/3200 | 1250 | 3200 | 320 | 150 | 8 | 7.5 |
CPB-125/4000 | 1250 | 4000 | 320 | 150 | 8 | 7.5 |
CPB-160/3200 | 1600 | 3200 | 400 | 180 | 8 | 11 |
CPB-160/4000 | 1600 | 4000 | 400 | 180 | 8 | 11 |
CPB-160/6000 | 1600 | 6000 | 400 | 180 | 7 | 15 |
CPB-200/3200 | 2000 | 3200 | 400 | 200 | 7 | 15 |
CPB-200/4000 | 2000 | 4000 | 400 | 200 | 7 | 15 |
CPB-200/6000 | 2000 | 6000 | 400 | 200 | 7 | 15 |
CPB-250/6000 | 2500 | 6000 | 400 | 250 | 7 | 18.5 |
CPB-300/6000 | 3000 | 6000 | 400 | 250 | 7 | 22 |
CPB-500/6000 | 3000 | 7000 | 400 | 250 | 7 | 37 |
CPB-600/7000 | 4000 | 7000 | 400 | 250 | 7 | 45 |
