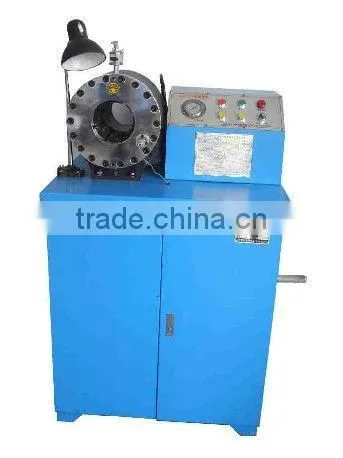

QTD-51C Hydraulic Hose Crimping Machine
* Larger crimping forece up to 640T.
* Higher speed, good working efficiency, save time, use the same time get you more money and more profit: Oil Pump Output: 14 L/min
* Good efficiency to crimp the elbow, for biger opening. Max opening: 120mm.
* Using variable pump/ variable desplacement pump, have two types of speed, at the beginning with much quicker speed to save power, and when reach the hose, gradually with slower speed to crimp hose perfect, power saved and high speed.
* With self-filling oil cup, the work surface can be lubricated and never leakage oil.
* With base-protective resin gasket not damage the working surface.
Crimp range | 0.23" ~2" 6SP/φ 6 - φ 51mm |
| Precision of Scale | 0.02 mm |
| Standard voltage & motor | 220V, 50HZ /380V, 50HZ /4kw |
| Maximum Fastening and Pressing Force | 640 T |
| Systematic pressure | 31.5Mpa |
| Oil Pump Output | 14 L/min |
| Opening without dies | 120mm |
| Opening | ± 25mm |
| No. of standard die set | 10sets |
| Dimensions( LxWxH) | 850x450x1300mm |
| Weight | 280Kg |
