EHP D CNC Electric Hydraulic Synchro Press Brakes(63T-320T)
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
TIMAC
Model Number:
63/2500, 80/3200, 100/3200, 125/4100, 160/3200, 200/3200, 320/4100
Machine Type:
Press Brake
Payment & Shipping
Payment Methods:
Port of Shipment:
CHINA PORT
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Electric 3-IN-1 Combina of Shear, Brake & Roll MachineNegotiableMOQ: 1 Set -
Metal Plate(sheet) 4 Rollers Bending MachineNegotiableMOQ: 1 Set
-
HPB-40 x 2200 / Hydraulic Press BrakeUS$ 5,000 - 15,000MOQ: 1 Set
-
CPB-100 x 2500 / (CNC) Hydraulic Press BrakeUS$ 5,000 - 15,000MOQ: 1 Set
-
HPB-63 x 2500 / Hydraulic Press BrakeUS$ 5,000 - 15,000MOQ: 1 Set
Brand Name
TIMAC
Model Number
63/2500, 80/3200, 100/3200, 125/4100, 160/3200, 200/3200, 320/4100
Machine Type
Press Brake
Raw Material
Sheet / Plate Rolling
Power
Other, Electric, Hydraulic, CNC
Automation
Automatic

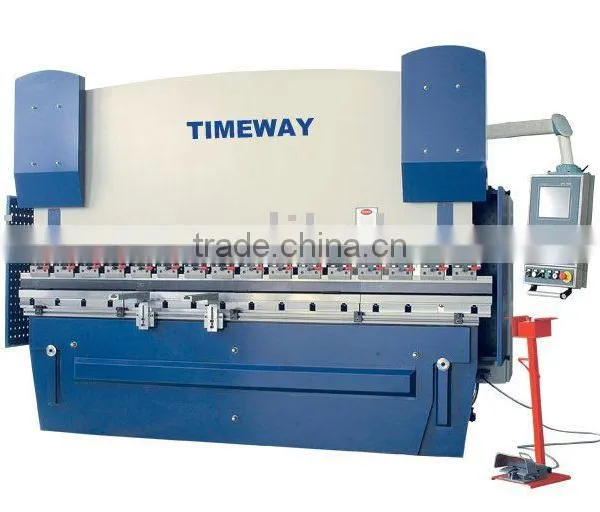

EHP D CNC Electric Hydraulic Synchro Press Brakes(63T-320T)
* Advanced configuration,high precision and high efficiency CNC hydraulic press brake.
* Holistic welding structure treated by annealing.
* Stand configuration with 4+1 axes:
Y1 (upward-downward of left cylinder),
Y2 (upward-downward of right cylinder),
X (forward-backward of backguage),
R (upward-downward of backguage),
V (hydraulic crowning ),
Optional 6+1 axes,8+1 axes or more axes.
* CYBELEC DNC880S is the standard system,DNC60S,DNC600S,ModEva 10S,ModEva 12S are optional.
* Double crowning mechanism:
1,upper rapid clamping fixture,which has both quick fastening and crowning function.
2,the lower table crowning machanism of sandwitch structure is controlled by CNC system.
* All major electrical and hydraulic elements are assembled with high grade international brands.
* A set of standard tools is provided with each machine
* Optional:CE certificate
| Model | Nominal pressure (KN) | Max. bending width (mm) | Distance between uprights (mm) | Opening height (mm) | Throat depth (mm) | Cylinder stroke (mm) | Main power (KW) | Approaching speed (mm/s) | Working speed (mm/s) | Returning speed (mm/s) | Weight (kg) |
| 06325 | 630 | 2500 | 2050 | 470 | 300 | 160 | 5.5 | 120 | 10 | 130 | 5750 |
| 06332 | 630 | 3200 | 2700 | 470 | 300 | 160 | 5.5 | 120 | 10 | 130 | 7200 |
| 08025 | 800 | 2500 | 2050 | 470 | 320 | 160 | 7.5 | 120 | 10 | 130 | 6460 |
| 08032 | 800 | 3200 | 2700 | 470 | 320 | 160 | 7.5 | 120 | 10 | 130 | 7400 |
| 10025 | 1000 | 2500 | 2050 | 500 | 350 | 200 | 7.5 | 120 | 10 | 120 | 7700 |
| 10032 | 1000 | 3200 | 2700 | 500 | 350 | 200 | 7.5 | 120 | 10 | 120 | 9070 |
| 10041 | 1000 | 4100 | 3600 | 500 | 350 | 200 | 7.5 | 120 | 10 | 120 | 10750 |
| 10051 * | 1000 | 5100 | 4600 | 500 | 350 | 200 | 7.5 | 120 | 10 | 120 | 14450 |
| 12525 | 1250 | 2500 | 2050 | 500 | 350 | 200 | 7.5 | 120 | 10 | 120 | 8380 |
| 12532 | 1250 | 3200 | 2700 | 500 | 350 | 200 | 7.5 | 120 | 10 | 120 | 9570 |
| 12541 | 1250 | 4100 | 3600 | 500 | 350 | 200 | 7.5 | 120 | 10 | 120 | 11850 |
| 12551 * | 1250 | 5100 | 4600 | 500 | 350 | 200 | 7.5 | 120 | 10 | 120 | 15750 |
| 16025 | 1600 | 2500 | 2050 | 500 | 350 | 200 | 15 | 120 | 10 | 120 | 8900 |
| 16032 | 1600 | 3200 | 2700 | 500 | 350 | 200 | 15 | 120 | 10 | 120 | 10600 |
| 16041 | 1600 | 4100 | 3600 | 500 | 350 | 200 | 15 | 120 | 10 | 120 | 12600 |
| 16051 * | 1600 | 5100 | 4600 | 500 | 350 | 200 | 15 | 120 | 10 | 120 | 17100 |
| 16061 * | 1600 | 6100 | 5600 | 500 | 350 | 200 | 15 | 120 | 10 | 120 | 19950 |
| 20025 | 2000 | 2500 | 2050 | 540 | 400 | 240 | 18.5 | 125 | 10 | 120 | 11660 |
| 20032 | 2000 | 3200 | 2700 | 540 | 400 | 240 | 18.5 | 125 | 10 | 120 | 13300 |
| 20041 | 2000 | 4100 | 3600 | 540 | 400 | 240 | 18.5 | 125 | 10 | 120 | 15600 |
| 20051 * | 2000 | 5100 | 4600 | 540 | 400 | 240 | 18.5 | 125 | 10 | 120 | 20950 |
| 20061 * | 2000 | 6100 | 5600 | 540 | 400 | 240 | 18.5 | 125 | 10 | 120 | 24450 |
| 25025 | 2500 | 2500 | 2050 | 540 | 400 | 240 | 18.5 | 125 | 10 | 120 | 12750 |
| 25032 | 2500 | 3200 | 2700 | 540 | 400 | 240 | 18.5 | 125 | 10 | 120 | 14450 |
| 25041 | 2500 | 4100 | 3600 | 540 | 400 | 240 | 18.5 | 125 | 10 | 120 | 17000 |
| 25051 * | 2500 | 5100 | 4600 | 540 | 400 | 240 | 18.5 | 125 | 10 | 120 | 21050 |
| 25061 * | 2500 | 6100 | 5600 | 540 | 400 | 240 | 18.5 | 125 | 10 | 120 | 24950 |
| 32032 * | 3200 | 3200 | 2700 | 570 | 400 | 300 | 22 | 110 | 9 | 115 | 18150 |
| 32041 * | 3200 | 4100 | 3600 | 570 | 400 | 300 | 22 | 110 | 9 | 115 | 21700 |
| 32051 * | 3200 | 5100 | 4600 | 570 | 400 | 300 | 22 | 110 | 9 | 115 | 27700 |
| 32062 * | 3200 | 6200 | 5600 | 570 | 400 | 300 | 22 | 110 | 9 | 115 | 32950 |
| Attention:Foundation hole is needed for the models with * | |||||||||||
STANDARD TOOLS
LASER PROTECTION(OPTIONAL)
LOWER TABLE CROWNING CYLINDER
