Three Rollers Asymmetric Rolling Machine
US$ 6,990 - 999,990
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
TIMAC
Model Number:
TRF-2X1000, TRF-4X1500, TRF-6X2000
Machine Type:
Roll Forming Machine
Payment & Shipping
Payment Methods:
Port of Shipment:
China port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Upper Roll Universal Three Rollers Rolling MachineUS$ 9,990 - 999,990MOQ: 1 Set -
W24Y-500 HYDRAULIC SECTION BENDERNegotiableMOQ: 1 Set
-
HER-1300X650 Hydraulic & Electric Slip Roll MachineNegotiableMOQ: 1 Set
-
QTD-51 Hydraulic Hose Crimping MachineUS$ 2,000 - 4,000MOQ: 1 Set
-
DX68 Hydraulic Hose Pipe Crimping MachineNegotiableMOQ: 1 Set
Brand Name
TIMAC
Model Number
TRF-2X1000, TRF-4X1500, TRF-6X2000
Machine Type
Roll Forming Machine
Raw Material
Sheet / Plate Rolling
Material / Metal Processed
Other, Steel
Power
Other, Hydraulic, CNC
Automation
Automatic

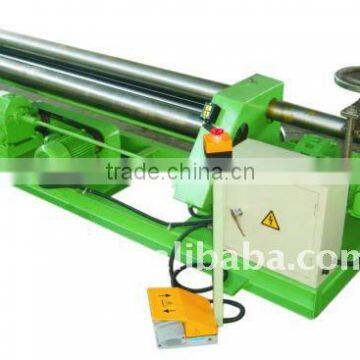

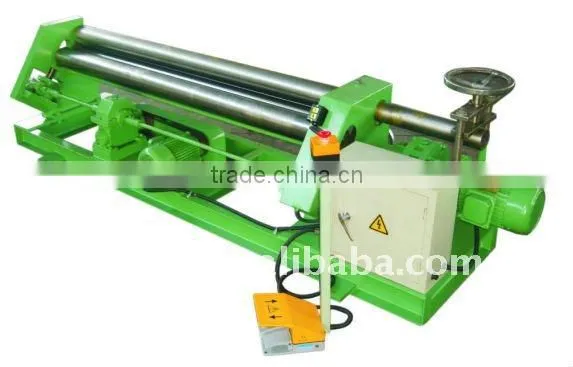

Three Rollers Asymmetric Rolling Machine
Metal sheet/plate bending machine
With pre-bending function rolling machine
Can bend curve
| Model | Max. thickness of coiled plate (mm) | Max. width of coiled plate (mm) | Yield limit of sheet metal (mm) | Coiling speed (m/min) | Min full loading diameter of coiled plate (mm) | Diameter of top shaft (mm) | Diameter of bottom shaft (mm) | Central distance between bottom shafts (mm) | Motor power (kw) |
| TRF-2X1000 | 2 | 1000 | 245 | 6 | 250 | 120 | 120 | 120 | 2.2 |
| TRF-2X1200 | 2 | 1200 | 245 | 6.1 | 250 | 120 | 120 | 120 | 2.2 |
| TRF-2X1500 | 2 | 1500 | 245 | 6 | 250 | 130 | 130 | 130 | 2.2 |
| TRF-2X2000 | 2 | 2000 | 245 | 6.1 | 250 | 130 | 130 | 130 | 2.2 |
| TRF-4X1000 | 4 | 1000 | 245 | 5.4 | 300 | 140 | 140 | 140 | 3 |
| TRF-4X1200 | 4 | 1200 | 245 | 5.4 | 300 | 140 | 140 | 140 | 3 |
| TRF-4X2000 | 4 | 2000 | 245 | 5.4 | 350 | 150 | 150 | 150 | 3 |
| TRF-6X1000 | 6 | 1000 | 245 | 5.4 | 350 | 140 | 140 | 140 | 3 |
| TRF-6X1500 | 6 | 1500 | 245 | 5.4 | 400 | 150 | 150 | 150 | 4 |
| TRF-6X2000 | 6 | 2000 | 245 | 5.4 | 400 | 160 | 160 | 160 | 4 |
| TRF-6X2500 | 6 | 2500 | 245 | 5.4 | 400 | 160 | 160 | 160 | 5.5 |
