Specifications
micro switch t125 5e4A.With long lever,
B.10A,125/250VAC/ 16A 125/250VAC
C.KW1-103-4
D.Certification:CE,CQC

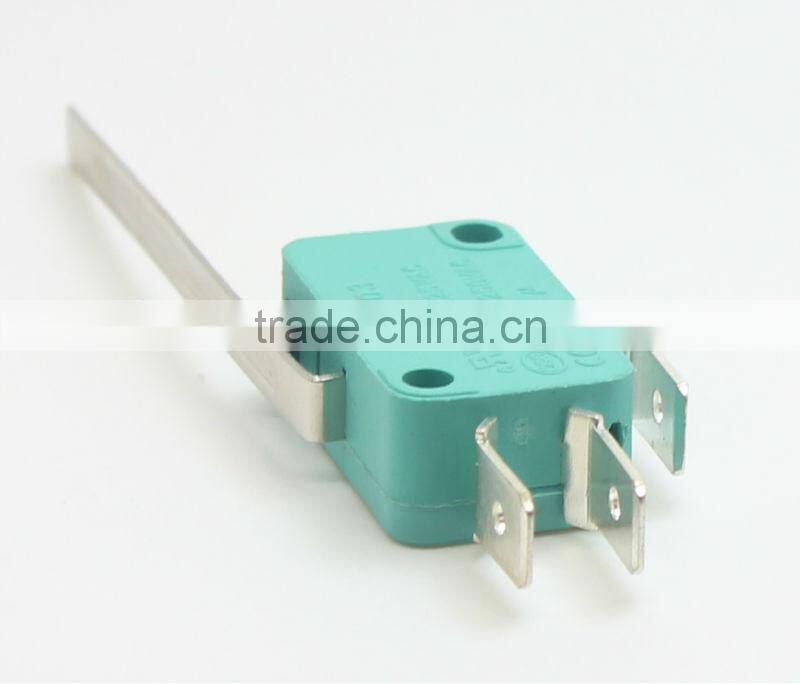

Micro switch t125 5e4 KW1-103-4
micro switch t125 5e4
A.With long lever,
B.10A,125/250VAC/ 16A 125/250VAC

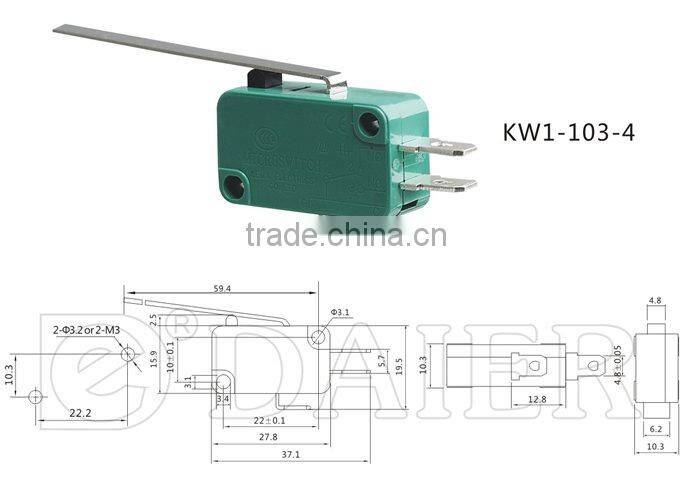

C.KW1-103-4
D.Certification:CE,CQC
- The Main Thchnology Performane
| Features: | |
| 5 current ratings | |
| Choice of actuator styles | |
| 3 terminal types (optional screw terminals available consult factory) | |
| 3 contact arrangements | |
| Long-life coil spring mechanism | |
| High-temperature 150°C and 200°C | |
| available on select models (consult factory) | |
| Specifications: | |
| Electrical: | |
| EllectricalRating: | 15A,125/250VAC;3/4HP,125VAC 1-1/2HP,250VAC |
| Temperature Rating: | 105°C Std. (150°C and 200°C optional) |
| Flammability Rating: | UL94HB |
| Materials: | |
| Case: | General Purpose Phenolic |
| Actuating Button: | Thermoplastic Nylon |
| Common Terminals: | Brass |
| NO and NC Terminals: | Brass |
| Moving Blade: | Brass |
| Spring: | Stainless Steel |
| Auxiliary Actuators: | Cold-Rolled Steel (Nickel-Plated) |
| Roller: | Sintered Stainless Steel |
| Contacts: | Silver-Cadmium Oxide |
Item | Value | |
Operating speed | 0.1mm-1m/s(related with actuator) | |
Operating frequency | Mechanical 60 cycles/min; Electrical 25cycles/min | |
Insulation resistance | ≥100 MΩ(500Vdc) | |
Contact resistancy | ≤30 mΩ(initial value) | |
Test voltage | Between terminals of the same polarity
| AC 1000V,50/60Hz,1min
|
Between current-carrying mental parts and ground, and between each terminal and non-current-carrying metal parts
| AC 3750V,50/60Hz,1min
| |
Vibration resistance
| 10~55Hz,1.5mm Double amplitude
| |
Shock resistance
| Malfunction:300/s² (approx.30)max
| |
life | Mechanical≥1,000,000cycles Electrical≥100,000cycles
| |
Safety approvals
| CE,CQC
| |
- Application
They are widely used in household appliances, electric force, telecommunications, machine tool, vessel, textile, printing, Mining machine, Mustic Instrument, etc.
- Others
Please kindly inform us which items you are interested, and the best price will be provided you upon receipt of your
new inquiry ASAP.
Any questions about more items, please feel free to contact us.
We are sincerely looking forward to establish cooperative relationship with you.
Free sample is available !
If you need any parts, please kindly send us your drawings or sample for quotation.

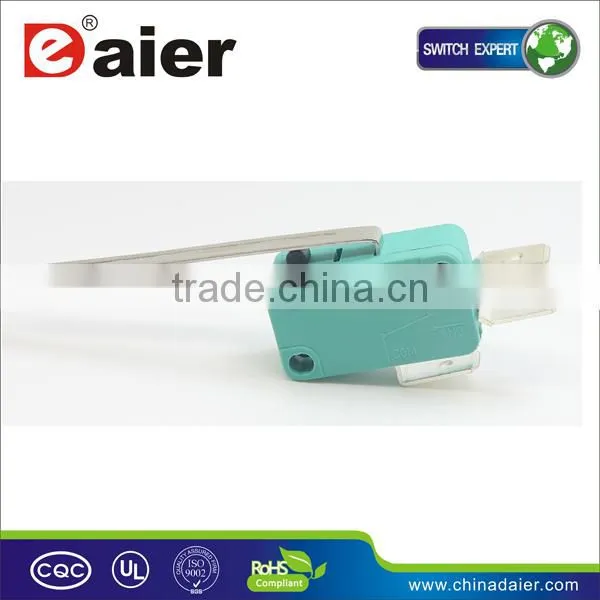

- PRODUCT SHOW
- CERTIFICATIONS
- PRODUCING DEPARTMENTS
Daier Electronics Co.,ltd is a professional manufacturer of electromechanical switches in Yueqing,China. Our factory covers an area of over 5,000 square meters, having a total staff of over 200 members. We are engaged in producing 9 categories and about 4,000 models of BNC connectors, push button switches, rocker switches, micro switches, touch switches, lift switches, refrigerator door switches, miniature toggle switches, indicators, alligators, fuse holders, signal lamps and etc. With a principle of being creative, advancedand honest, we are always improving our products and services to better satisfy you customers.
