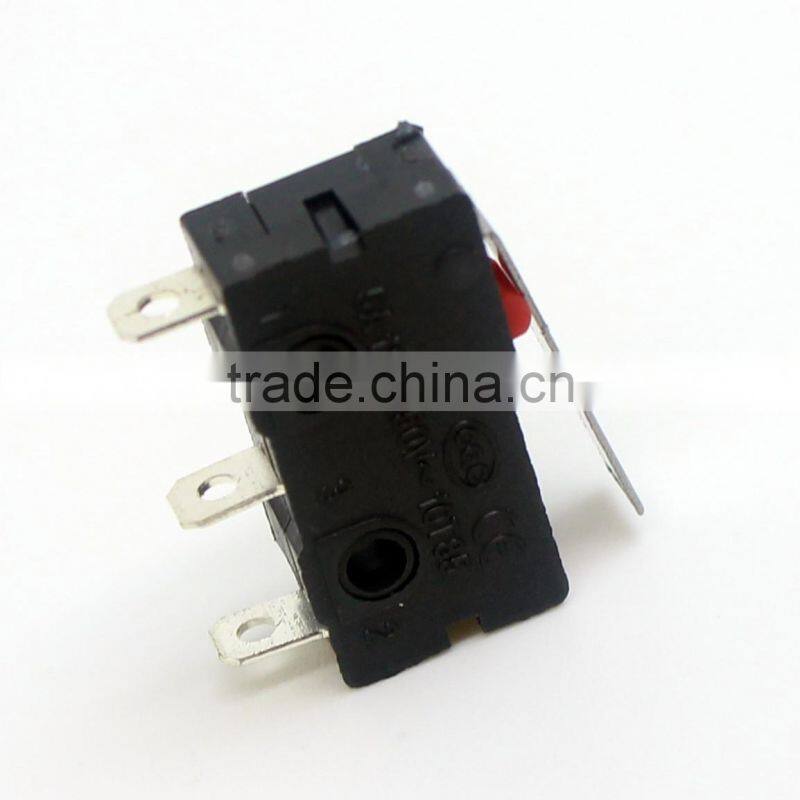

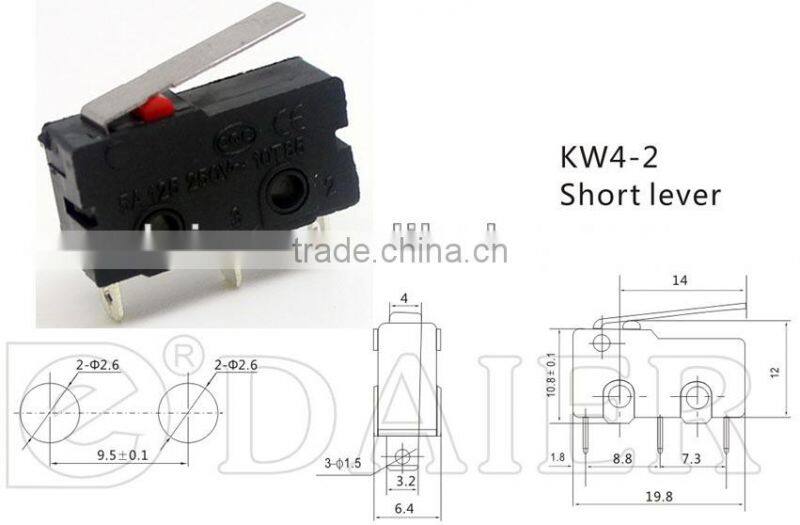

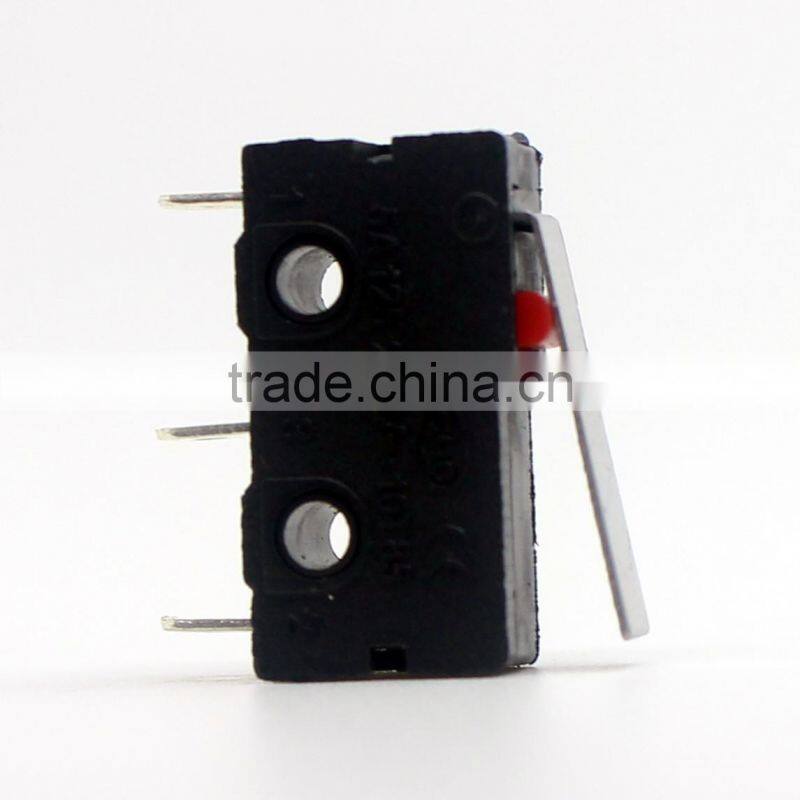

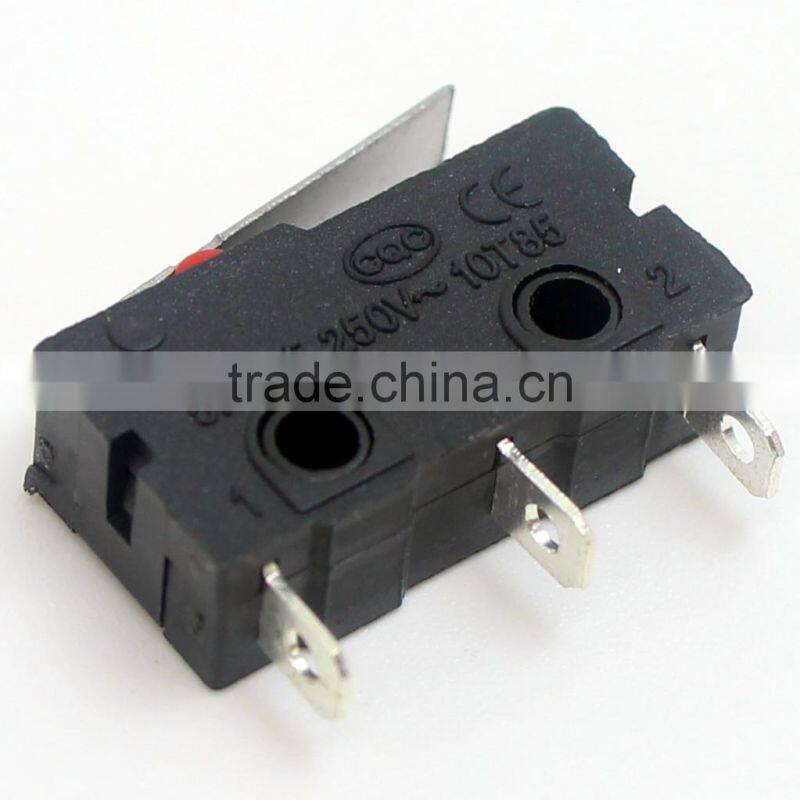

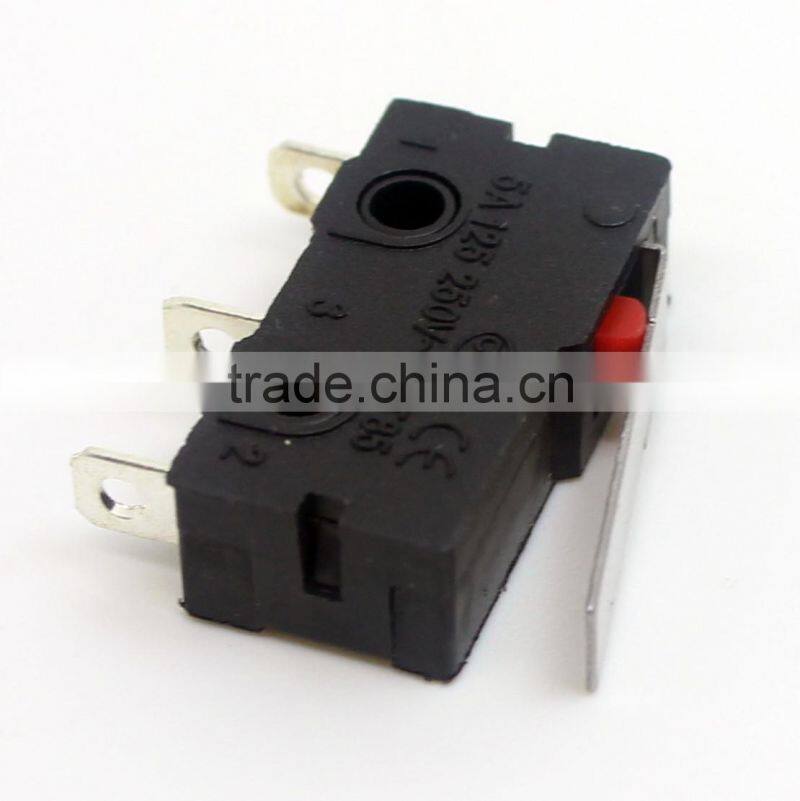

3 pin micro switch KW4-Z2F
- 1000000 Piece / Pieces per Month
- Ningbo
- L/C D/P D/A Credit Card PayPal
- High lifespan KW2-3 series KW2-3-02P-30-5 micro switch long handle small micro action
- Limit Switches Professional Customised Source Factory Silver Contact Quick Switch for Rail Transportation
- Travel Limit Switches Manufacturers Direct Sales Self-cleaning contacts Micro Switches for Automation Control
- Micro Switch Waterproof Strength Factory Professional Customised Micro Switch Waterproof for Rail Switches
- LXC micro switch high-voltage switch is suitable for high-speed rail transit travel switch circuit breakers
- Magnetic blow micro switch high voltage switch for railroad transportation pure silver contact PC housing
Product Details
Place of Origin: | Zhejiang, China | Brand Name: | DAIER | Model Number: | KW4-Z2F |
Max. Current: | 5A | Max. Voltage: | 125/250VAC | Operating Temperature: | -25℃~+80℃ |
Protection Level: | IP40 |
Product Description
3 pin micro switch
3 pin micro switch
A.100,000 cycles
B.5A,125/250VAC
C.3A 125/250VAC
D.Certfication:CE,CQC
- The Main Thchnology Performane
Ratings of types of micro switch | 3A 125VAC /250VAC |
Insultion Strength | >=100 MΩ |
Contact Resistant | <=100 MΩ |
Test Voltage | >=1000 VAC/5S |
Electrical Life | 10,000 Cycles |
Temperature | T85 |
Operating Force | <=0.15 N |
Operrating Position | 8.8±0.5 mm |
TACT SWITCH SERIES | |
Specification | |
Working Temperature | -25°C ~+80°C |
Rated Load | DC 12V 0.1A |
Contact resistance | ≤0.03Ω |
Insulation resistance | ≥100MΩ |
Withstand voltage | AC250V(50HZ)/min |
Actuaing force | 1.3±0.5N |
Ambient Humidety Used | 85% RH |
Operating Force | 100/130/160/200/250/300gf |
Soldering Temper | 260±5°5s |
Electrical Life | 100,000 cycles Min |
Mechanical Life | 100,000 cycles Min |
Features | |
1,Micro-Miniatuer,light operating force | |
2,Snap-in type,can be mounted directly on P.C.Board | |
3,Available with earth terminal for electrostatic discharge | |
4,Good feeling and more buttons are applied | |
Applications | |
Operating in all types of electronic equipment such as telephone,audio intruments,TVset,VCR, Automatic machine,communication equipment,car electric,apparatus and,electro motion tool etc… |
- Application
They are widely used in household appliances, electric force, telecommunications, machine tool, vessel, textile, printing, Mining machine, Mustic Instrument, etc.
- Others
Please kindly inform us which items you are interested, and the best price will be provided you upon receipt of your
new inquiry ASAP.
Any questions about more items, please feel free to contact us.
We are sincerely looking forward to establish cooperative relationship with you.
Free sample is available !
If you need any parts, please kindly send us your drawings or sample for quotation.

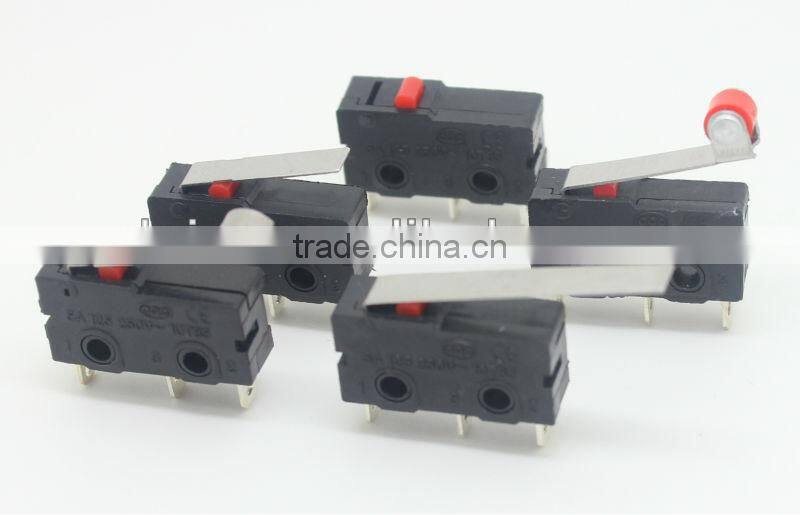

- PRODUCT SHOW
- CERTIFICATIONS
- PRODUCING DEPARTMENTS
Daier Electronics Co.,ltd is a professional manufacturer of electromechanical switches in Yueqing,China. Our factory covers an area of over 5,000 square meters, having a total staff of over 200 members. We are engaged in producing 9 categories and about 4,000 models of push button switches, rocker switches, micro switches, touch switches, lift switches, refrigerator door switches, miniature toggle switches, indicators, alligators, fuse holders, signal lamps and etc. With a principle of being creative, advancedand honest, we are always improving our products and services to better satisfy you customers.
