Specifications
electronic micro switchA.100,000cycles
B.5A,125/250VAC
C.3A 125/250VAC
D.Certification:CE,CQC

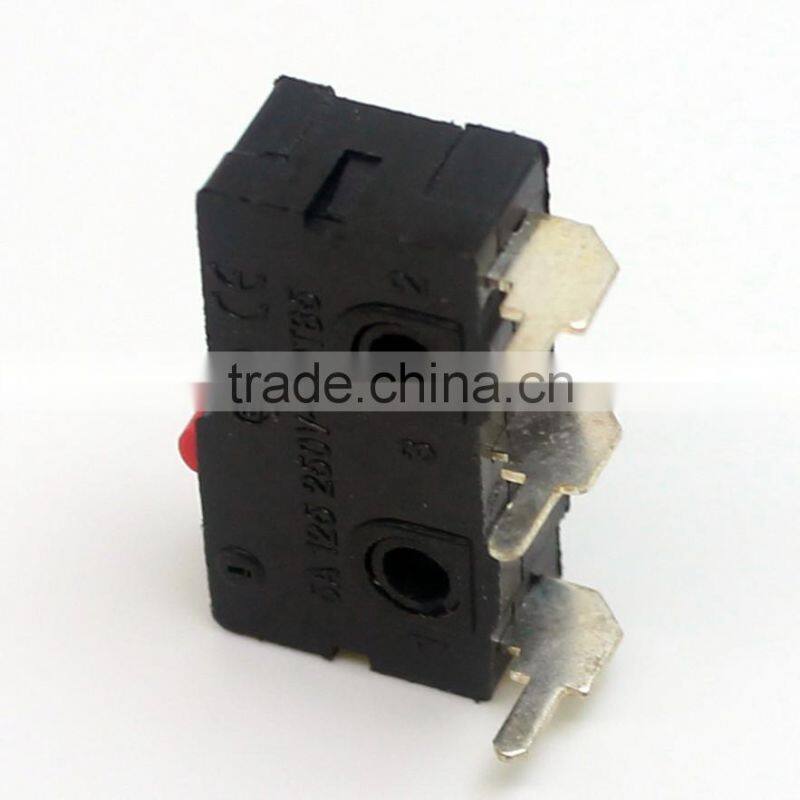

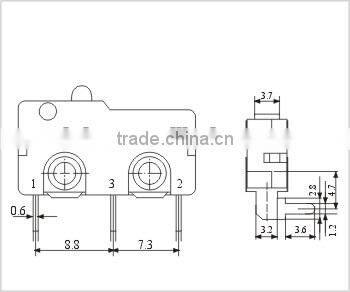

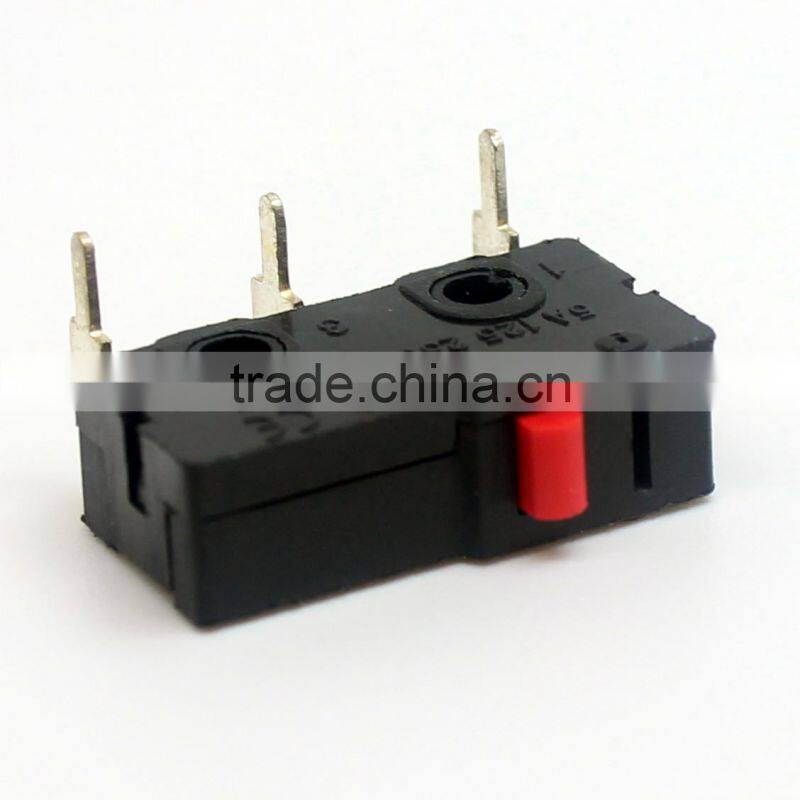

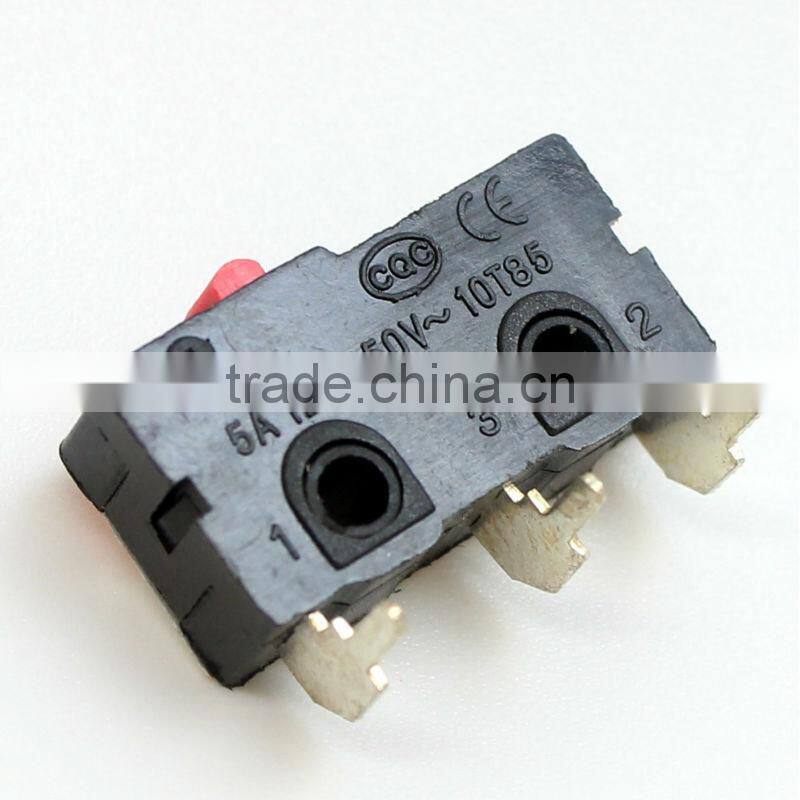

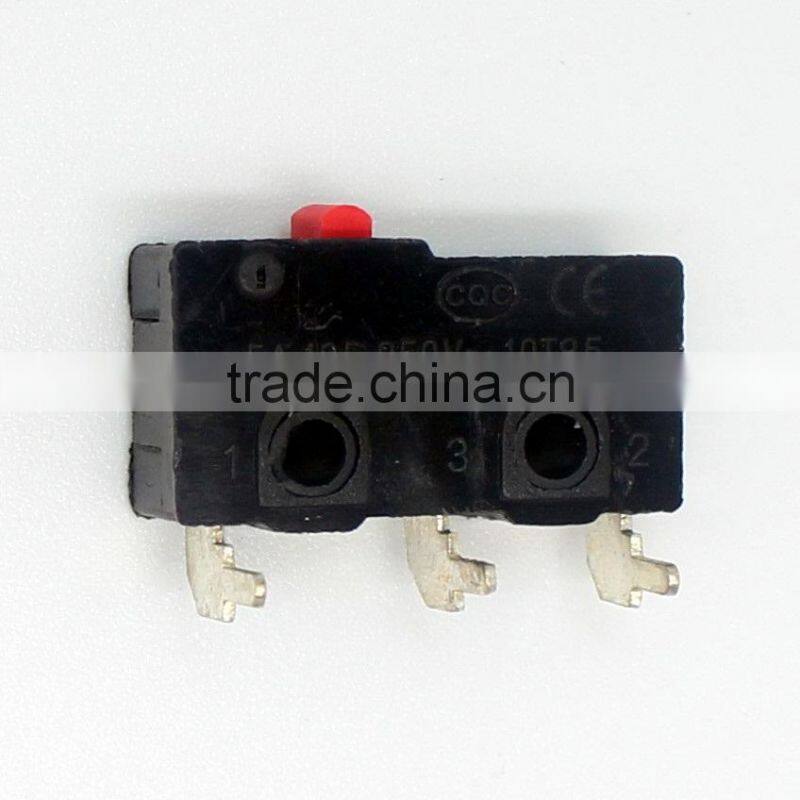

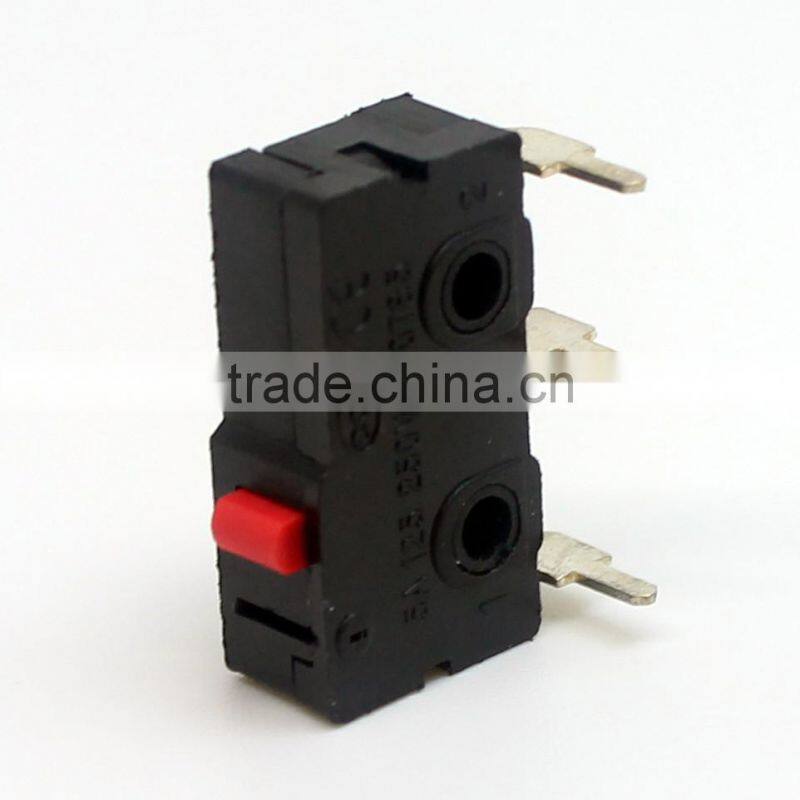

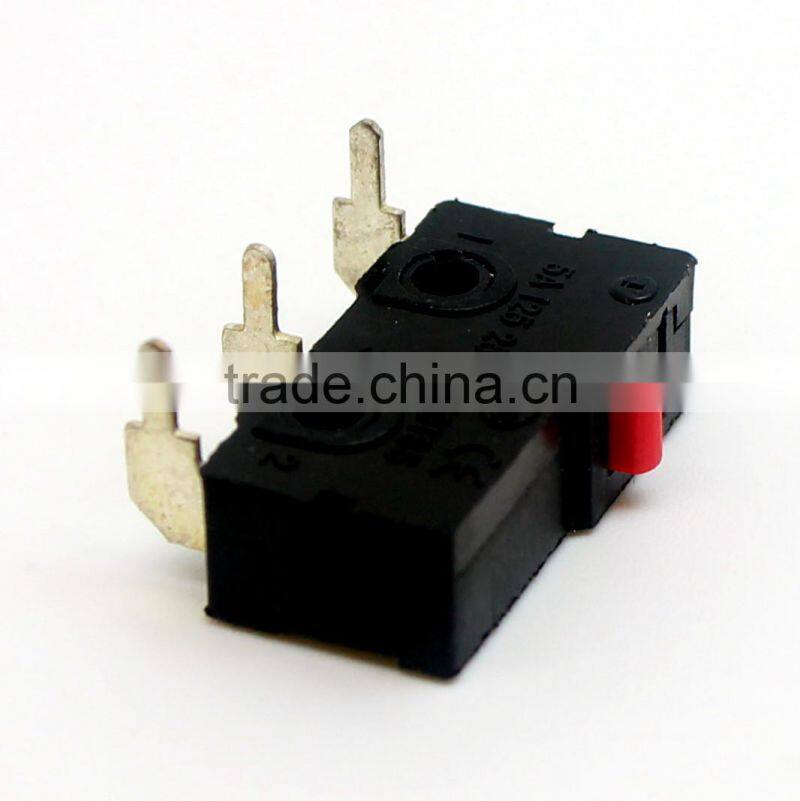

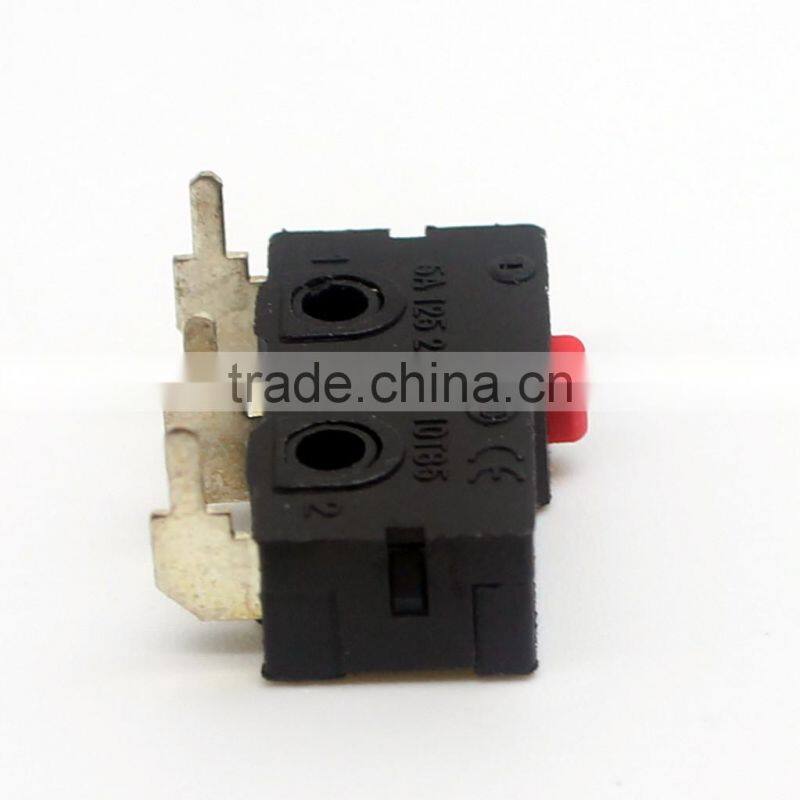

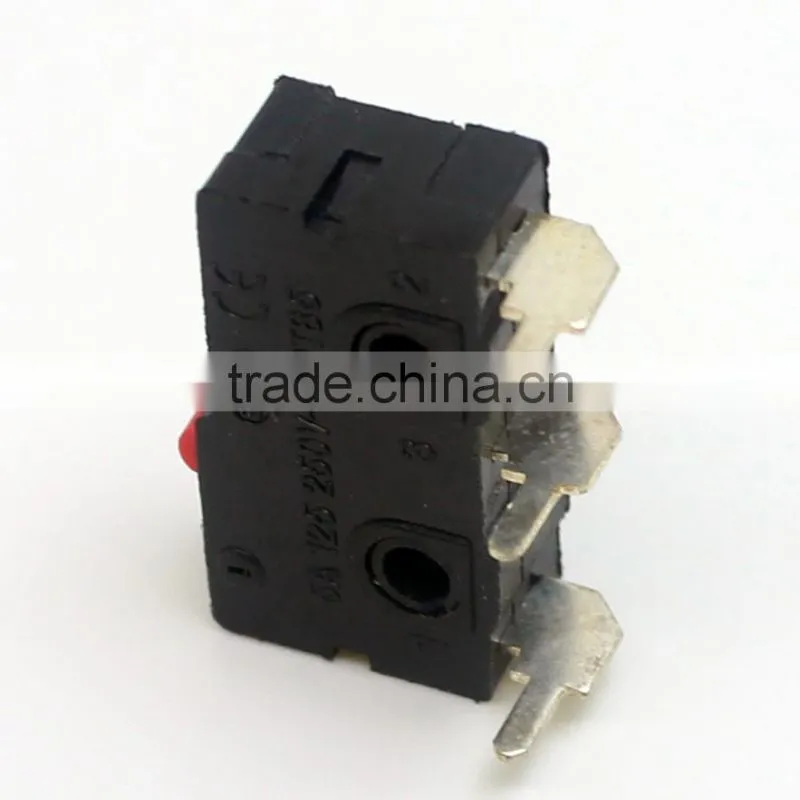

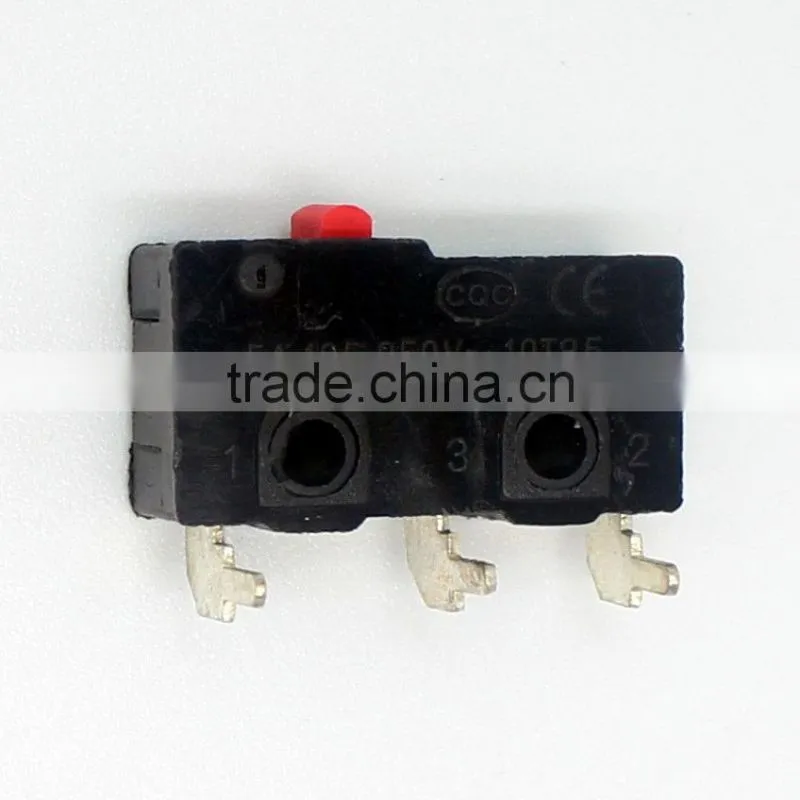

Electronic micro switch KW4-Z1R
electronic micro switch
A.100,000cycles
B.5A,125/250VAC
C.3A 125/250VAC
D.Certification:CE,CQC
- The Main Thchnology Performane
Item Type | 10A. 5A . 3A/125, 250VAC (resistive load) | |
Allowable operating speed | 0.1mm-1m/secs (pin plunger type ) | |
Allowable operating frequency | Mechanical | 400times/min |
Electrical | 30times/min | |
Insulation resistance | Above the 100MΩ (use the DC500V insulation resistance test) | |
Contact resistance (initial value ) | OF 1.4N type under 30mΩ ; OF 0.49N type under 50 mΩ | |
Vibration resistance Malfunction | 10-55HZ double amplitude 1.5mm (contact gap is less than 1ms) | |
Shock resistance | OF 1.4N type max 300m/s2; OF 0.49N type max 200m/s2 | |
Life | Mechanical life | 30,000,000times above(60times/min) |
Electrical life | 10 A 50,000 times above; 5A /3A 200,000 times above(30times/min) | |
Ambient temperature/humidity | -25~+85(with no icing) Under the 85%RH (+5~35) | |
- Application
They are widely used in household appliances, electric force, telecommunications, machine tool, vessel, textile, printing, Mining machine, Mustic Instrument, etc.
- Others
Please kindly inform us which items you are interested, and the best price will be provided you upon receipt of your
new inquiry ASAP.
Any questions about more items, please feel free to contact us.
We are sincerely looking forward to establish cooperative relationship with you.
Free sample is available !
If you need any parts, please kindly send us your drawings or sample for quotation.

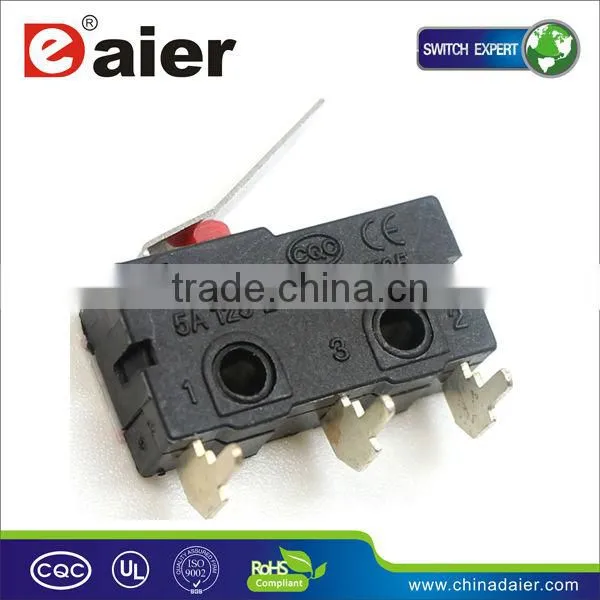

- PRODUCT SHOW
- CERTIFICATIONS
- PRODUCING DEPARTMENTS
- PAYMENT AND SHIPMENT
Paypal,T/T,Westernunion,MoneyGram ,or other method.
Ship worldwide by sea, air, DHL, UPS,TNT, FEDEX and so on.
---We often ship item in 5 business days.
- FEEDBACK
We greatly appreciate your positive feedback and will do the same.
Please kindly contact us before you decide to leave any neutral or negative feedback .
We will try our utmost to help you solve the problem. Your information for us will be protected strictly.
-----------------------------------------------------------------------------------------------------------------------------------------------------------
Why choose us?
Good quality, competitive price, fast delivery .
If you have any questions,please contact with us!
