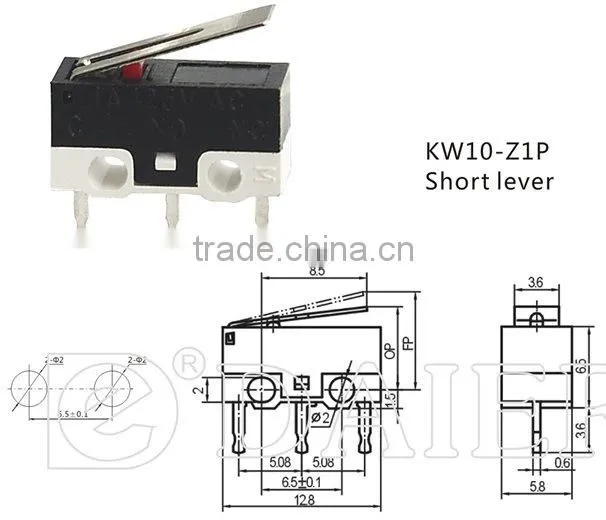

KW10 Subminiature micro swich

Specifications

subminiature micro swich
1.model :KW10-Z1P
2.1A,125/250VAC 3A ,125/250VAC
3. 30,000 cycles
4.Certifiction:CE,UL,CQC

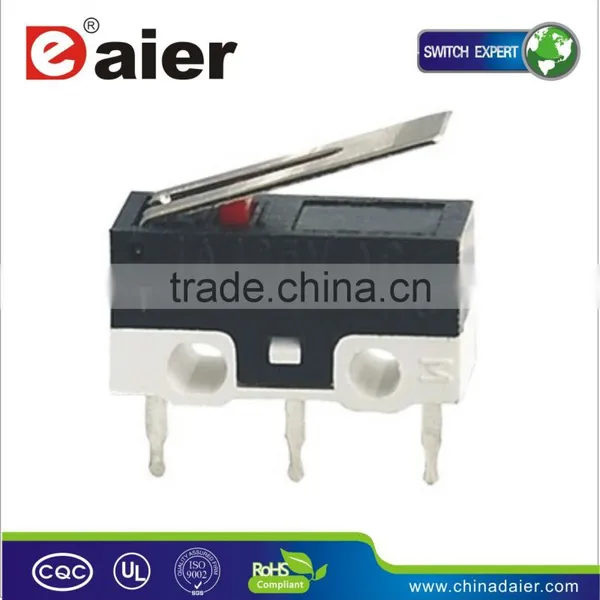

Subminiature micro swich KW10-Z1P



The miniature micro switches comes with a vertical, left angle or right angle PC pin termination.

The miniature snap action switch comes with a vertical, left angle or right angle PC pin termination. The applications for the TS switch include security and detection devices, appliances, instrumentation, power tools and more.



•  The Main Thchnology Performane

  enreItem		Value
  Operating Speed		1mm~500mm(related with actuator forms)
  Operating frequency		Mechanical 60cycles/min; Electrical 25cycles/min
  Insulation resistance		≥100MΩ(500VDC)
  Contact resistance		OF≤0.75N:≤30mΩ OF≤0.75N:≤50 mΩ
  Test voltage	Between terminals of the same polarity	AC 600V,50/60Hz,1min
  	Between current-carrying mental parts and ground, and between each terminal and non-current-carrying metal parts	AC 1000V,50/60Hz,1min
  Vibration resistance		10~55Hz,1.5mm   Double amplitude
  Shock resistance		Malfunction:300/s² (approx.30)max
  Life		Mechanical≥1,000,000cycles Electrical≥10,000cycles
  Safety approvals		CE,UL,CQC



  Specification
  Micro Switch	Specification
  Rating	1A 125V AC
  Contact resistance	30mΩ max
  Insulation resistance	100MΩ min at250V DC
  Dielectric strength	AC 1000V for 1 min
  Lifespan	30,000 Cycles
  Practical temperature range	-25 to 65 degrees Celsius
  [Warm Tips]All informations above are for reference only; Particulars of all items are base on individual specification.



• Features of 1a 125vac micro switch

        1. small size
        2.low current
        3.long mechanical and electrical life
        lder terminals amd PCB terminal

• The action sensitive subminiature switch of 1a 125vac micro switch

1).Subminiature, large current. With tiny contact clearance, quick action and high sensitivity and small action travel characteristics.
2).Long life
3).Various terminal
4).Various forms of movable arm
5).Applied in household appliances, audio and video equipment, computer, office automation equipment and communication equipment, etc.



• Application

They are widely used in household appliances, electric force, telecommunications, machine tool, vessel, textile, printing, Mining machine, Mustic Instrument, etc.

• Others

            Please kindly inform us which items you are interested, and the best price will be provided you upon receipt of your

            new inquiry ASAP.

            Any questions about more items, please feel free to contact us.

            We are sincerely looking forward to establish cooperative relationship with you.

            Free sample is available !

            If you need any parts, please kindly send us your drawings or sample for quotation.



• PRODUCT SHOW







• CERTIFICATIONS







• PRODUCING DEPARTMENTS





    Daier Electronics Co.,ltd is a professional manufacturer of electromechanical switches in Yueqing,China. Our factory covers an area of over 5,000 square meters, having a total staff of over 200 members. We are engaged in producing 9 categories and about 4,000 models of BNC connectors, push button switches, rocker switches, micro switches, touch switches, lift switches, refrigerator door switches, miniature toggle switches, indicators, alligators, fuse holders, signal lamps and etc. With a principle of being creative, advancedand honest, we are always improving our products and services to better satisfy you customers.
