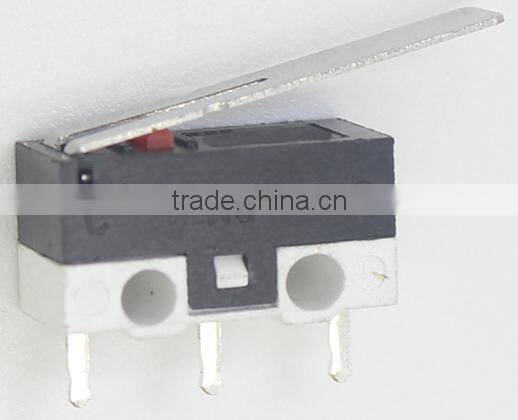

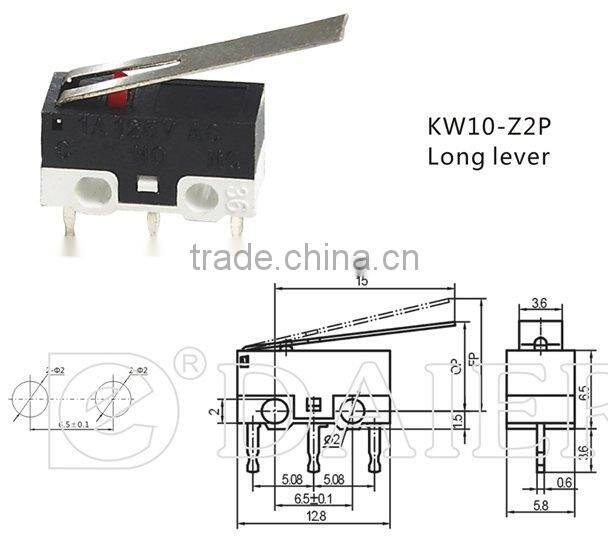

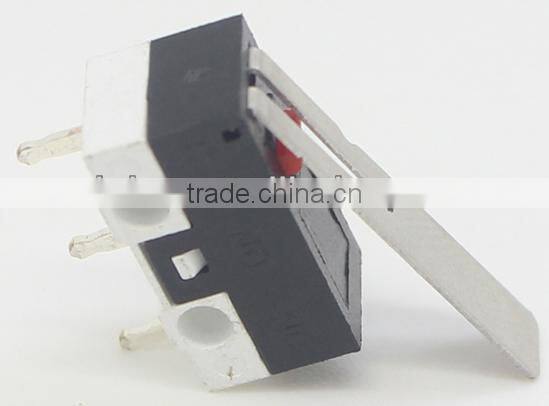

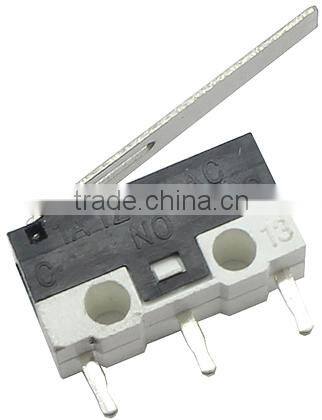

Mouse micro switch KW10-Z2P
mouse micro switch
1.Model :KW10-Z2P
2.1A,125/250VAC 3A ,125/250VAC
3. 30,000 cycles
4.Certification:CE,CQC
- The mian technology perforance
enreItem | Value | |
Operating Speed | 1mm~500mm(related with actuator forms) | |
Operating frequency | Mechanical 60cycles/min; Electrical 25cycles/min | |
Insulation resistance | ≥100MΩ(500VDC) | |
Contact resistance | OF≤0.75N:≤30mΩ OF≤0.75N:≤50 mΩ | |
Test voltage | Between terminals of the same polarity | AC 600V,50/60Hz,1min |
Between current-carrying mental parts and ground, and between each terminal and non-current-carrying metal parts | AC 1000V,50/60Hz,1min | |
Vibration resistance | 10~55Hz,1.5mm Double amplitude | |
Shock resistance | Malfunction:300/s² (approx.30)max | |
Life | Mechanical≥1,000,000cycles Electrical≥10,000cycles | |
Safety approvals | CE,UL,CQC | |
Specification | |
Micro Switch | Specification |
Rating | 1A 125V AC |
Contact resistance | 30mΩ max |
Insulation resistance | 100MΩ min at250V DC |
Dielectric strength | AC 1000V for 1 min |
Lifespan | 30,000 Cycles |
Practical temperature range | -25 to 65 degrees Celsius |
[Warm Tips]All informations above are for reference only; Particulars of all items are base on individual specification. | |
- Application of long lever micro switch
They are widely used in household appliances, electric force, telecommunications, machine tool, vessel, textile, printing, Mining machine, Mustic Instrument, etc.
- Features of long lever micro swich
1. small size
2.low current
3.long mechanical and electrical life
lder terminals amd PCB terminal
The action sensitive subminiature switch of long lever micro switch
1).Subminiature, large current. With tiny contact clearance, quick action and high sensitivity and small action travel characteristics.
2).Long life
3).Various terminal
4).Various forms of movable arm
5).Applied in household appliances, audio and video equipment, computer, office automation equipment and communication equipment, etc.
- Others of long lever micro switch
Please kindly inform us which items you are interested, and the best price will be provided you upon receipt of your
new inquiry ASAP.
Any questions about more items, please feel free to contact us.
We are sincerely looking forward to establish cooperative relationship with you.
Free sample is available !
If you need any parts, please kindly send us your drawings or sample for quotation.

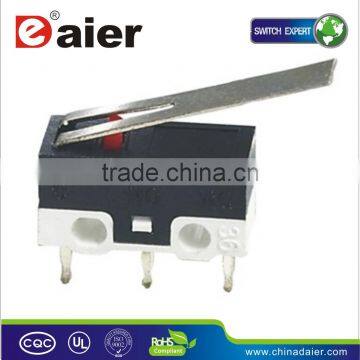

- PRODUCT SHOW
- CERTIFICATIONS
- PRODUCING DEPARTMENTS
Daier Electronics Co.,ltd is a professional manufacturer of electromechanical switches in Yueqing,China. Our factory covers an area of over 5,000 square meters, having a total staff of over 200 members. We are engaged in producing 9 categories and about 4,000 models of BNC connectors, push button switches, rocker switches, micro switches, touch switches, lift switches, refrigerator door switches, miniature toggle switches, indicators, alligators, fuse holders, signal lamps and etc. With a principle of being creative, advancedand honest, we are always improving our products and services to better satisfy you customers.
