Specifications
-Maximized performance-No unground material passes to 2nd cpt
-Guarantees minimum air pressure.
-Robust reliable flexible

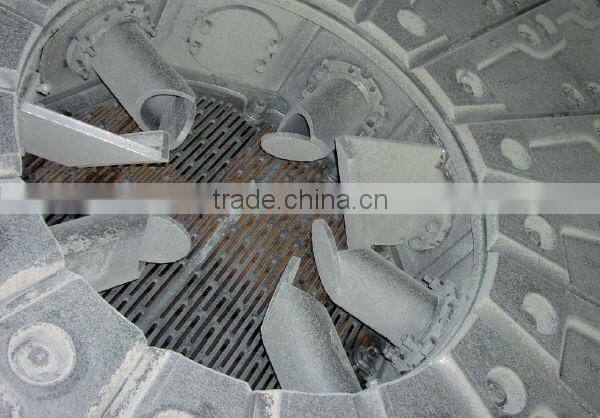

Intermediate: Opticontrol®
Flow controlling diaphragm with adjustable scoops.
Its ability to maintain a given material level in the diaphragm allows it to regulate the material load in the first compartment.
Name: Opticontrol®.
Industry: Cement.
Equipment: Ball mills.
Tech specs:
- Flexible structure able to absorb the dynamic deformation of the mill shell. Design and material hardness of the grates help maintain original slot openings for a longer period of time.
- Central screen design according to volume load.
- Reduced pressure drop due to the use of a cylinder (instead of a cone).
Key Benefits:
- Optimization of the grinding process
- Minimum wear of the internal equipment
- Possibility of material retention independent of slot sizes or ball charge density.
The level of material in the first compartment is controlled by the level of material in the diaphragm.
Transfer: Optidry®
Used when drying material is required in grinding mills.
Offers a large opening to the gases to ensure a minimal pressure drop.
Definitely confines the grinding balls in the first chamber.
Name: Optidry®.
Industry: Cement.
Equipment: Ball mills.
Tech specs:
- Flexible structure able to absorb the dynamic deformation of the mill shell.
- Limitation of the material projection too far from the diaphragm.
- No balls pass in the drying chamber thanks to the central cone and its grid.
Key Benefits:
- Increased drying capacity in the mill.
- Decreased wear of grates, balls and linings.
- Decreased damage on the drying chamber lifters.

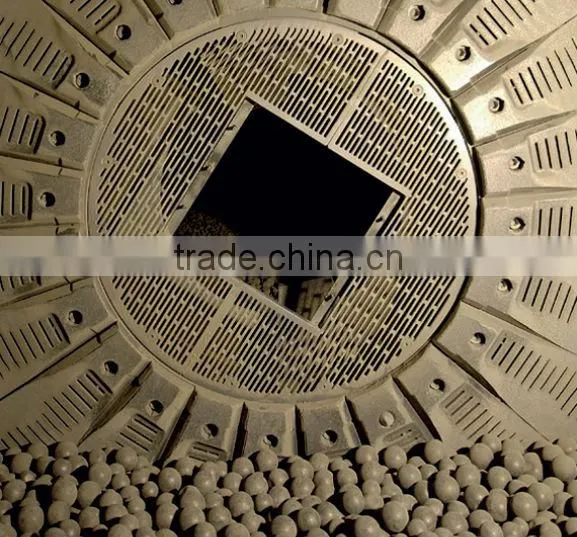

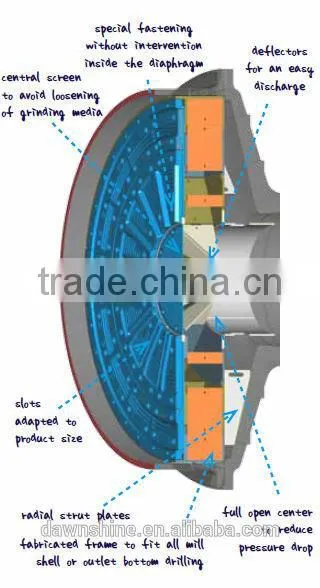

Outlet: Optimex®
Installed in mono-chamber or common two-chamber mills, transfers the full production out the mill by deflectors and when used with the OPTICONTROL® leads to a coherent set of diaphragms to optimize the grinding process.
Adaptable to any shape and any drilling of the mill outlet head.Name: Optimex®.
Industry: Cement.
Equipment: Ball mills.
Tech specs:
- Rigid structure divided in parts designed to pass through the manhole opening in the mill shell.
- Fully assembled in workshop to match-mark each main part to obtain an easy assembly on site.
- Large central opening and minimal pressure drop.
Key Benefits:
- Reduced wear of the frame due to the minimal pressure drop.
- No balls can escape from the mill and full protect of the mill outlet head.
- No reduction of the air and material flows.
