Original Magotteaux Products - MagotteauxTube Mill Liner / Liner Plate
US$ 100 - 1,000
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Bangkok, Thailand
Brand Name:
Magotteaux
Model Number:
OEM
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai port Savannah port Monterrey port...etc
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Magotteaux Grinding Media BallUS$ 1,500 - 2,500MOQ: 5 Tons -
Magotteaux Hammer-For CrushingUS$ 100 - 10,000MOQ: 1 Ton
-
Miller Liner Casting for Industrial Cement Miller - MAGOTTEAUX Grinding LinerUS$ 100 - 10,000MOQ: 100 Pieces
-
Magotteaux Grinding Ball - Top Quality International Brand - Forged Steel Grinding Balls - Ball Grinding Cement MillUS$ 1,000 - 2,000MOQ: 1 Ton
-
Magotteaux Liner Plate-Top Quality-FELUS$ 100 - 10,000MOQ: 1
Place of Origin
Bangkok, Thailand
Brand Name
Magotteaux
Model Number
OEM
Application
Cement Factory, Power Plant
Material
Steel
Dimensions
Standard / OEM
Specifications
Magotteaux Mill LinerBest-suited design
Best-suited alloy
Simple & safe fastening system
Follow-up during lineraas/dia

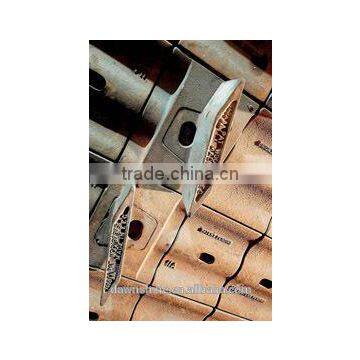

Magotteaux Mill Liner
Tube mills internals
A tube or horizontal mill is equipped with several items called tube mill internals such as: an inlet wall at its entrance, a liner (to protect its shell and give the media charge the requested effect), a diaphragm (to separate it in compartments) and an outlet wall at its end. A tube or horizontal mill is a cylindrical tube positioned horizontally on two supports and rotating. It can have different dimensions (length, width) and operating parameters (speed, rotation direction,…) to suit the particular application they are designed for (cement mills are different from mining mills for instance).
Our approach consists in:
- Considering the particular application.
- Thoroughly studying mill operating conditions.
- Selecting best-suited design as per the above.
- Selecting the best-suited alloy for the profile.
- Selecting simple & safe fastening system to suit mill.
- Monitoring the installation.
- Insuring follow-up during liner’s/diaphragm’s lifetime.
LINERS
Feed end liners
Key Benefits:
- Increased lifetime.
- Design adapted to mill operating parameters.
- Handling device available in case of heavy weight.

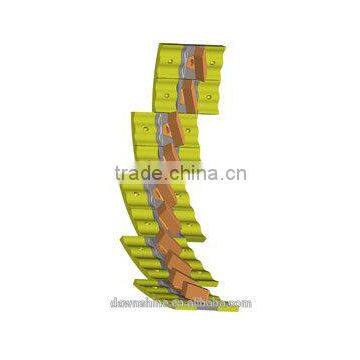

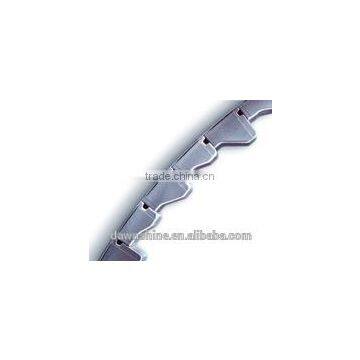

Lifting Liners ---Xlift ®
Key Benefits:
- Liner weight reduced by 7 to 20%, depending on mill diameter, as compared with traditional bolted step liner. Weight reduction is further increased as
compared to vaulted / boltless liner. - Increased safety thanks to lighter plates.
- Optimum grinding performance.
- Liner profile adapted to mill operating parameters allowing for optimized grinding efficiency.
- Reduced maintenance operations -> Reduced costs.
- Potential time and manpower savings during installation.
- Except for door plates and connecting plates (to feed end and diaphragm grates), all Xlift® plates are available from stock.
For these special plates, standard leadtime is reduced by 4 weeks as compared to a traditional step liner

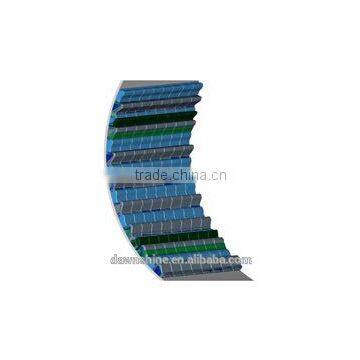

Classifying Liners ---Xclass ®
Key Benefits:
- Liner weight reduced by 20 to 35% depending on mill diameter. E.g. for a mill in the 4.4 to 4.6m diameter range, weight is reduced by 465 to 310kg/m².
- Xclass® allows for an increase in useful diameter of mill, ranging from 40 to 76mm depending on mill diameter. As a consequence, ball load may increase by 0.9 to 2.5 tons per meter of EGL (Effective Grinding Length), which, in turn leads to an increase in absorbed power.
- One single bolt type.
- Reduced maintenance operations -> Reduced costs.
- Potential time and manpower savings during installation.
- All Xclass® plates available from stock.
