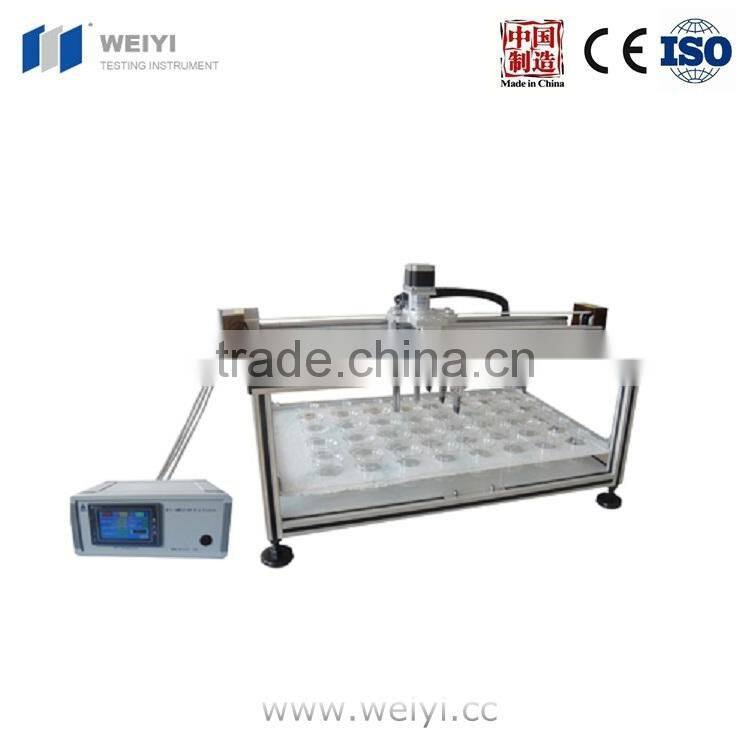

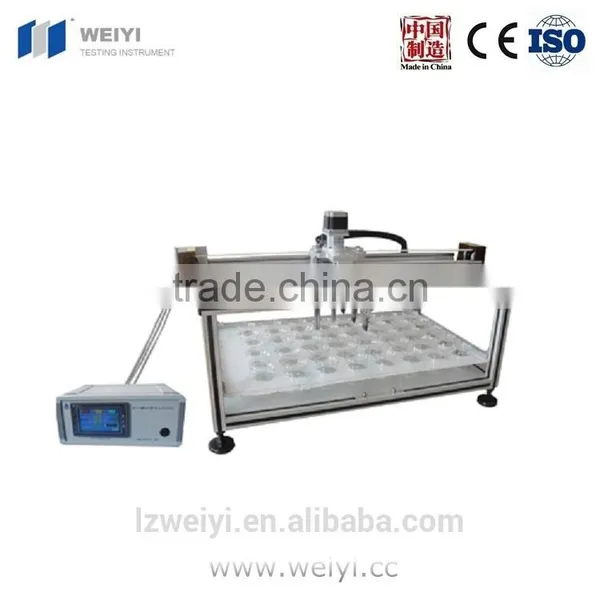

PTL-MM02-8P 5 x 8 Position PLC Controlled Precision Dip Coater

PTL-MM02-8P 5 x 8 Position PLC Controlled Precision Dip Coater thumbnail-1
PTL-MM02-8P 5 x 8 Position PLC Controlled Precision Dip Coater photo-1
Negotiable MOQ: 1 Sheet (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
WEIYI
Model Number:
PTL-MM02-8P 5 x 8 Position PLC Controlled Precision Dip Coater
Contact Supplier Request Quote Chat Now
Laizhou Weiyi Experimental Machinery Manufacture Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name WEIYI
Model Number PTL-MM02-8P 5 x 8 Position PLC Controlled Precision Dip Coater
Power Electronic
Usage Other, SPECIMEN DIP COATER

PTL-MM02-8P 5 x 8 Position PLC Controlled Precision Dip Coater

Detail


PTL-MM02-8P is a multi position precision dip coater, whcih can coat 5 pcs sample in one row at each time, and dip each row  of sample upto 8 position as program to achieve multi-sample coating upto 40 pcs at each time.   It is excellent tool to find optimized coating composition and make multi-layer coating.

SPECIFICATIONS:

Working Voltage

110/220V AC switchable, 50/60 Hz

Max. Power Consumption

100W

Max Stroke length

65 mm

Maximum sample load

100 g
Smaple Clamp & Sample Size

  • Sample clamp: 40 pcs included

  • Standard sample size: 65mm L x 25mm W x 1 - 2.5 mm

Control Unit

  • All parameters are controlled by PLC via  Color Touch Screen  6"(L) x 4"(W)

  • Control unit is separated from dip coating divice to allow remote operation

Insertion Speed
1 - 200 mm/minute programmable by Touch Screen PLC

Pulling Speed
1 - 200 mm/minute programmable by Touch Screen PLC

Horizontal Moving Speed

 50 ~ 500 mm/minute adjustable

Speed Stability
+/- 0.05%
Immersion Container

  • 40 pcs pryglass breaker ( 100 ml) included with breaker holder

  • Breaker size:   50mm dia. x 70 mm H   ( 100 mL  capacity )
Optional

  • 800W water bath with temperature controller is available at extra cost ( please see picture right )

  • You may put the dip-coater unin can be placed on flave-box ( see picture right )



Product Dimensions & Weight

  • 850×500×520, mm ( with frame)

  • 20 kg
Compliance CE Certified
Warranty One Year limited warranty with lifetime support
Operation Manual & Video
Application Notes

  • In order to get better film coating, the substrate shall be treated by plasma cleaner (Please click on the first picture below for more information)

  • Use ultrasonic processor to disperse nano powder or homogenize solution to get better coating (Please click on the second picture below for more information)


Net Weight 18 kg (39.6 lbs)
Shipping Weight 45 kg (100 lbs)
