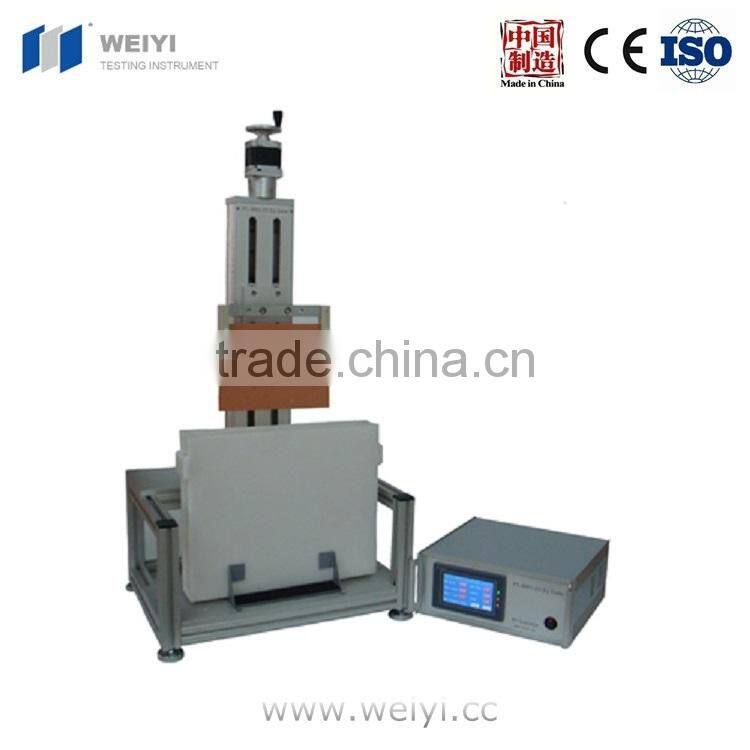

PTL-MM02-200 Programmable Vertical Dip Coater

Model:

PTL-MM02-200 Programmable Vertical Dip Coater

Brief

Introduction:

PTL-MM02-200 Programmable Vertical Dip Coater is an specialized precision equipment for researching (manufacturing) liquid phase growing thin film.Substrate is growing thin film on the surface by vertical pulling/dipping in the liquid. High precision speed control system, touch screen setting parameter, the whole process is automatic control.

Main Feature:

This instrument is specialized designed researching (manufacturing) liquid phase thin film, can grow thin film by vertical dipping/pulling in different liquids. Programmable control, can set pulling/dipping speed, dwell time, speed to get into the liquid and cycle times, also can be controlled separately.

Technical

Parameter:

1. Dipping speed range:1mm– 200mm/min
2. Substrate dimension:310mm×260mm×5mm;
3. Valid dippingheight:270mm;
4. Speed stability:-0.05%~+0.05%;
5. Max. sample load: 7kg;
6. Power:20W;
