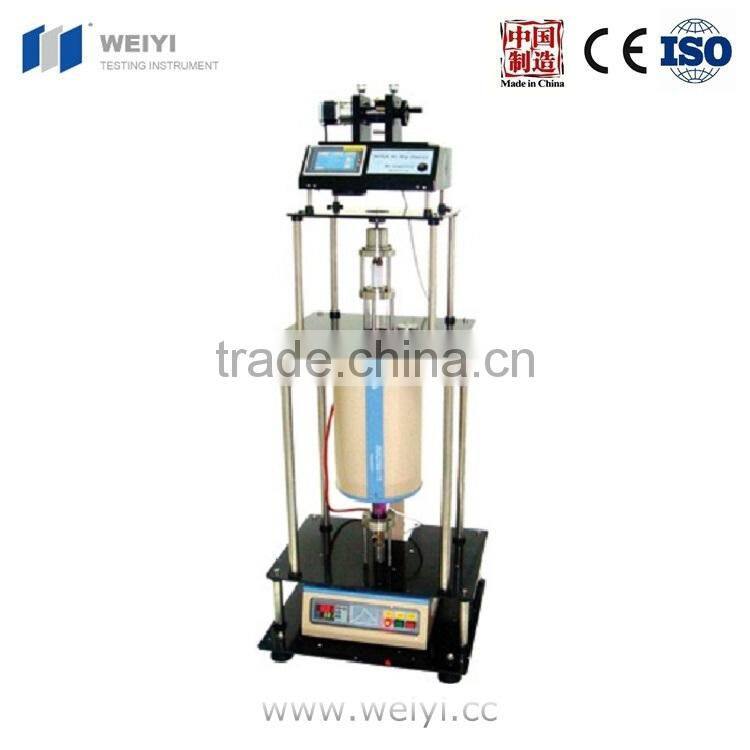

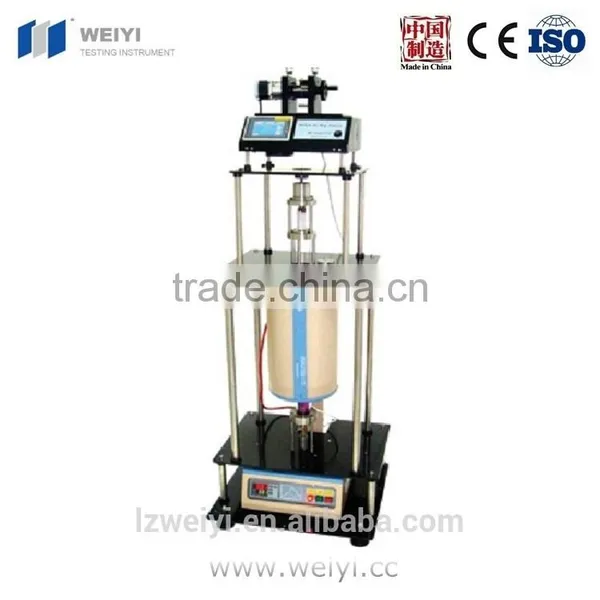

PTL-HT HIGH TEMP DIP COATER

Model:

PTL-HT  High Temp Dip Coater

Brief

Introduction:

PTL-HT  High Temp Dip Coater is widely used for all kinds of high temp dipping and coating research, such as ceramic thin film, crystal thin film, battery material thin film, particular nanometer thin film; Can adapt high temp forming film with the technological development in the future.

CE Certified

Main Feature:

High Temp Dip Coater can be used under 1000℃, convenient to coat high temp thin film on the special materials. It can be protected by inert gas of N2, Ar and so on, also can be protected in the oxidation environment, Input data by color touch screen, programmable control, achieve to form film by automatic dipping/pulling.

Technical

Parameter:

1. Using temperature:room temp-1000℃;
2. Pulling/dipping speed range:1mm –200mm/min;
3. Three segments temp area separately control dipping speed,each segment stepless speed adjusting;
4. Program control;
5. Power(include heating section): ≤3KW
6. Voltage:220V
7. Color touch screen input data

Specification:

Size:560mmx470mmx1435mm

Standard

Accessories:

1. 600℃pulling/dipping wire :3pcs;
2. 800℃pulling/dipping wire :3pcs
3. Sample frame: 1 set;
4. Beaker:2pcs

Optional

Accessories :

1. 1000℃high temp pulling/dipping wire;
2. Beaker;
3. Particular pulling/dipping fixture

Standard

Package:

Carton for long-distance transport
