SP-15VIM 15KW Small Vacuum Induction Melting System

SP-15VIM 15KW Small Vacuum Induction Melting System thumbnail-1
SP-15VIM 15KW Small Vacuum Induction Melting System photo-1
US$ 9 - 9,999 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
WEIYI
Model Number:
EQ-SPC-1
Contact Supplier Request Quote Chat Now
Laizhou Weiyi Experimental Machinery Manufacture Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name WEIYI
Model Number EQ-SPC-1
Condition New
After-sales Service Provided No overseas service provided
Product Description

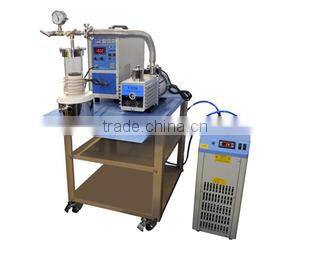

EQ-SP-15VIM is a vacuum split induction heating / melting system with complete accessories, including SP-15AB Induction Heater, Quartz Tube with Flange & Valve, Graphite Crucible & Refractory Assembling, 4L/m Recirculating Water Chiller, Vacuum Pump, and Mobile Cart. It is an ideal tool for researching new metallic alloys with both melting point < 1900ºC and quantity < 100g.

SPECIFICATIONS:

Induction Heater

  • Working Voltage: 220V AC, 50Hz, Single Phase

  • Working Current: 34 Amp (40A breaker required)

  • Output Power: 2 - 15 KW

  • Output Frequency: 30 - 80 kHz Adjustable

  • Duty Cycle: 80%

  • Induction Coil: 70mm(OD) x 65mm(ID) x 80mm(H)

  • Auto Heating Time: 1-99 seconds

  • Auto Dwell Time: 1-99 seconds

  • Auto Cooling Time: 1-99 seconds

  • Air Cooling: Rear Fan

  • Protection: Automatic water pressure, over temperature, and over power protection

  • Vacuum Flange:

  • Graphite Crucible: 1.5"(OD) x 1.25"(ID) x 3.75"(Deep) Crucible included

  • Refractory Assembling: Complete refractory assembling made of alumina, including bottom crucible support, crucible holder and cover
Water Chiller

  • Temperature range: 2 - 35°C

  • Water Flow Rate: 16 L/min

  • Water Tank: 6Liters  made of stainless steel

  • Note: It is recommended to use specific coolant to get the best preformance. It is normal to wait couple of minutes for cooling down after several trials of heating
Vacuum Pump

Heavy Duty Mobile Cart


  •


  • Structure: Steel Frame Mobile Cart

  • 600mm(L) x 800mm(W) surface for placing Induction Heater & Quartz Tube with Flange
Product Dimensions

  • Induction Heater: 18.5"(L) x 12"(W) x 17"(H) (470mm x 300mm x 430mm)

  • Water Chiller: 18"(L) x 8.7"(W) x 28"(H) (460mm x 220mm x 530mm)

  • Heavy Duty Mobile Cart: 600mm(L) x 800mm(W) x 597mm(H)
Warranty

  • One year limited warranty with lifetime support

  • Consumable parts such as processing tubes, o-rings and heating coil are not covered by the warranty
Operation Manual & Video



Application Notes

  • Heater will shut down if over output occurs. Please reduce coil cycle number or sample size to keep heater operating under Max power

  • Please click here to learn the Fundamentals of Induction Heating

  • Please click here to learn how to setup crucible for metling

  • Melting time and temperature are related to materials, crucible, refractory inslution, etc. If you do not know whether the induction heater can melt your sample or not, please contact our engineer for consulting. Have your alloy's composition, melting point, and quantity to be melted prepared

  • Please click the picture on the left for the sequence of installation from Flange to Refractory Base


Net Weight
 105 kg (230 lbs)
Shipping Weight 160 kg (350 lbs)
Shipping Dimensions 47" x 40" x 40"





More Lab Equipment

SP-15VIM 15KW Small Vacuum Induction Melting System

Model: MoPao 3S                      MP-1B                      MP-2B                     BG-32                    MPJ-1A

Enter to Related website on Alibaba by Clicking model details

SP-15VIM 15KW Small Vacuum Induction Melting System

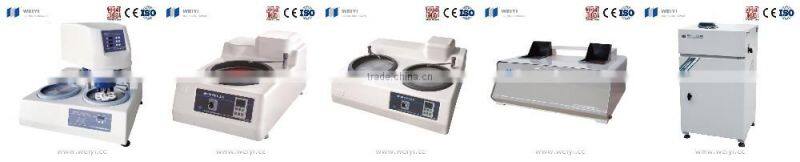

Model:  Q-80Z                       DTQ-5                      LDQ-350A                   IQIEGE 60S               GTQ-5000B

Enter to Related website on Alibaba by Clicking model details

SP-15VIM 15KW Small Vacuum Induction Melting System

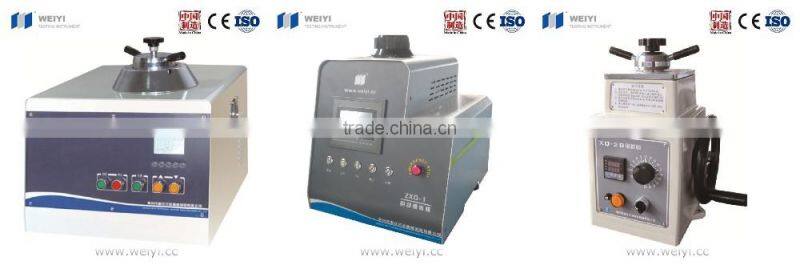

Model: ZXQ-5                        ZXQ-1                       XQ-2B

Enter to Related website on Alibaba by Clicking model details

Packaging & Shipping

SP-15VIM 15KW Small Vacuum Induction Melting System

Company Information

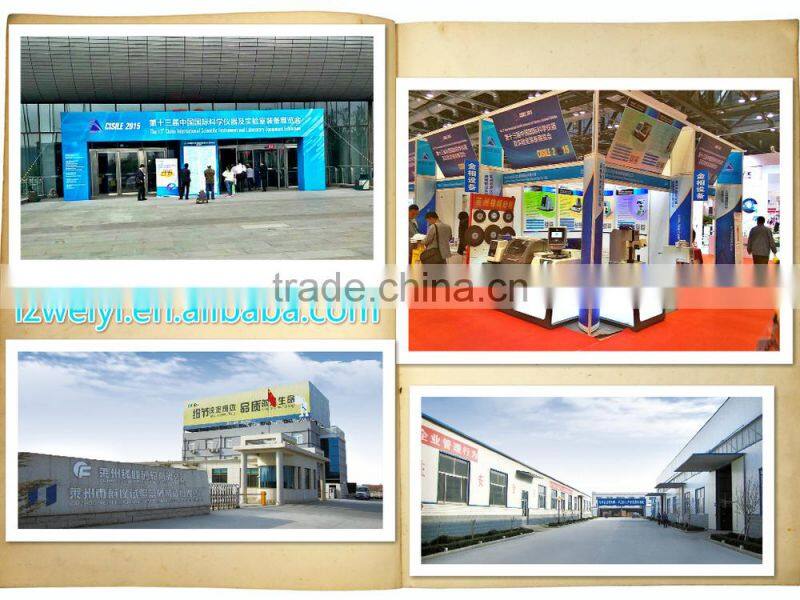

Laizhou Weiyi experimental machine manufacturing Co.,Ltd. was established in 2001,covering 55 acres,which is one leading enterprise in the field of a professional R&D,manufacturing metallographic sample preparation erquipment. Was identified as Technology high-tech enterprises by Shandong Provincial Science , Shandong Academy of Sciences Research Building .
