Model: |

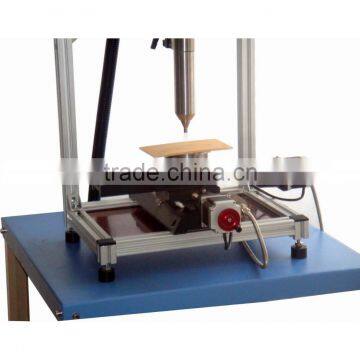

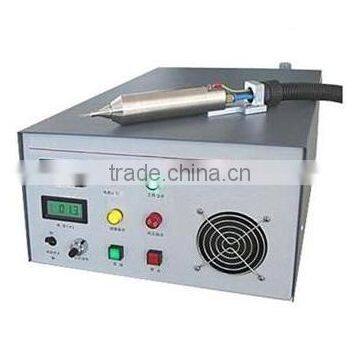

GSL-1100X-PJF-A Plasma Surface Treatment |
|
Brief Introduction: |
GSL-1100X-PJF Plasma Surface Treatment is a compact atmosphere plasma surface treatment jet system, mainly consist of RF generator and plasma beam head. In the low temperature and no vacuum condition, the jet plasma beam can be fast to active and clean the surface of the materials. Such as: single crystal wafer, optical component, plastic and other widely materials. To obtain the high quality epitaxial film or optical coating, the advanced surface treatment can reach the obvious effect. |
Main Feature: |
1. Easy to operate, safe, high speed to treat the objects' surface; 2. Don't need vacuum and chamber; 3. Small and practical, low cost; 4. Light weight, compact structure. 5 Warranty and certification:One year, CE certified |
|
Technical Parameter: |
1. Input power supply:110/220,50/60Hz, less than 1000W; 2. Output frequency:20-23KHz; 3. Ion beam:Include 2ion beam, round head 10-12mm,rectangle head15-18mm; 4. Input gas pressure and working atmosphere:Min 0.275MPa,working gas atmosphere can be air, N2, Ar, mixed gas(can't use flammable and explosive gas); 5. Plasma working pressure:0.048MPa-0.068MPa; 6. Working environment:temp< 42°C;Humidity≤ 40%RH;Without flammable gas; 7. Automatic control 3D working platform(X/Y-axis electrical control,Z-axis Manual adjustable); 8. Working platform dimension:Ø100mm vacuum pump; 9. Working platform X-axis travel distance:200mm, Y-axis travel distance:100mm; 10. Nozzle adjustable height: 50mm |
Specification: |
1. Dimension:600 (L) ×600 (W) ×1250 (H) mm; 2. Net weight:55kg; |
