Product information:

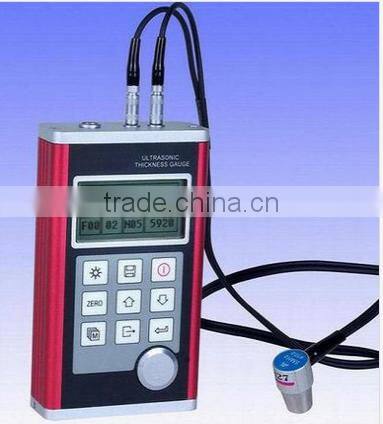

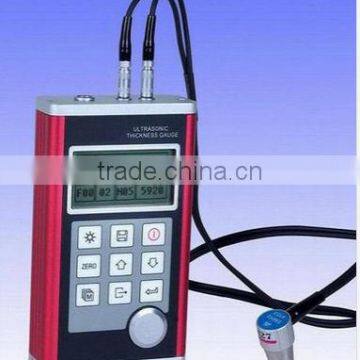

Ultrasonic Thickness Gauges are designed to improve safety and ensure reliability of material subject to corrosion or erosion.
Corrosion gauges with their dual-element transducers are the primary inspection tool used to measure the remaining walls of components such as pipelines, pressure vessels, storage tanks, and numerous other applications.
Precision gauges use single-element transducers to provide the thinnest range and highest degree of accuracy possible. Common applications include metals and a variety of non-metals (i.e. glass, ceramic, plastic, etc.).
Specifications:
Measuring Range |
0.75mm-300mm(in steel) |
Sound Velocity |
1000~9999 m/s |
Resolution |
0.1/0.01mm (selectable) |
Units |
mm/inch (selectable) |
Storage |
20 groups (100 files / group) |
Accuracy |
± ( 0.5%Thickness+0.04 ) mm |
Alarm |
preset upper and lower limit |
Work voltage |
3V( 2 AA alkaline batteries) |
Interface port |
RS232 |
Dimensions |
132mm*76mm*33mm |
Weight |
345g |
Display |
LCD with backlight |
Continuous working period |
100 hours (with backlight off) |
Standard Deliveries:
No. |
Items |
Quantity |
1 |
Main unit |
1 |
2 |
N05/90 probe |
1 |
3 |
Couplant |
1 |
5 |
Instruction manual |
1 |
6 |
Warranty card |
1 |
7 |
Carrying case |
1 |
9 |
Cables |
1 |
10 |
Batteries |
4 |
Optional Deliveries:
No. |
Items |
Quantity |
1 |
N02 probe |
1 |
2 |
N07 probe |
1 |
3 |
NHT5 probe |
1 |
4 |
N05 probe |
1 |
5 |
Datapro software |
1 |
6 |
Mini-printer |
1 |
7 |
printer cable |
1 |
8 |
Communication cable |
1 |
