Model: |

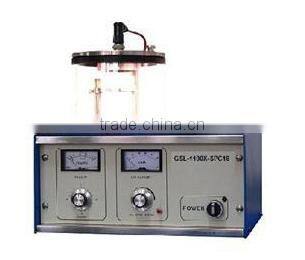

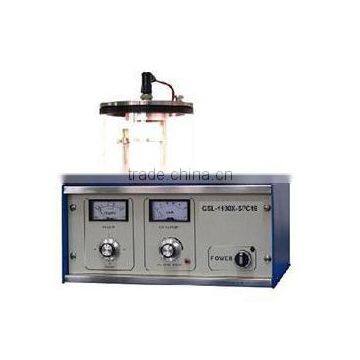

GSL-1100X-SPC-16 Single Target Plasma Sputtering Coater |
|
Brief Introduction: |
GSL-1100X-SPC-16 Single Target Plasma Sputtering Coater is a CE certified compact plasma sputtering coater. To sputter coating all kinds of metal like Au, Pt, In and Ag. The diameter of the samples can achieve: 50mm, coating thickness can achieve: 300 Aring. Especially suitable for coating SEM samples. Include one vacuum pump and pre-installed gold target. |
Main Feature: |
1. Built in sample sputtering chamber vacuum gauge and sputtering ampere meter, to indicate and monitor instrument condition; 5. According to gas ionization character in the electric field,using the high-capacity sample sputtering chamber and corresponding area sputtering target, to make the coating film more uniform and pure.
|
|
Technical Parameter: |
1. Input power supply:220V, total power less than 2000W(with vacuum pump); 2. Specimen chamber dimension:dia. 160mm, height 120mm; 3. Sample holder:dia. 50mm, can coat film on 8 SEM samples in the same time, sample holder board's height is adjustable. Max. dia uniform coating area : 45mm; 4. atmosphere control:needle valve control gas flow, to obtain better coating effect. 5. Overall dimension:400mmx300mmx400mm; 6. Net weight:about 30kg; 7. Warranty and certification:One year, CE certified
|
|
Optional Accessories : |
Au, In, Ag, Pt and all kinds of materials target. |
