MSK-AFA-E200 Compact Roll to Roll Tape Casting Machine

Name: MSK-AFA-E200 Compact Roll to Roll Tape Casting Machine
Brand: WEIYI
SKU: 140786324
Availability: InStock

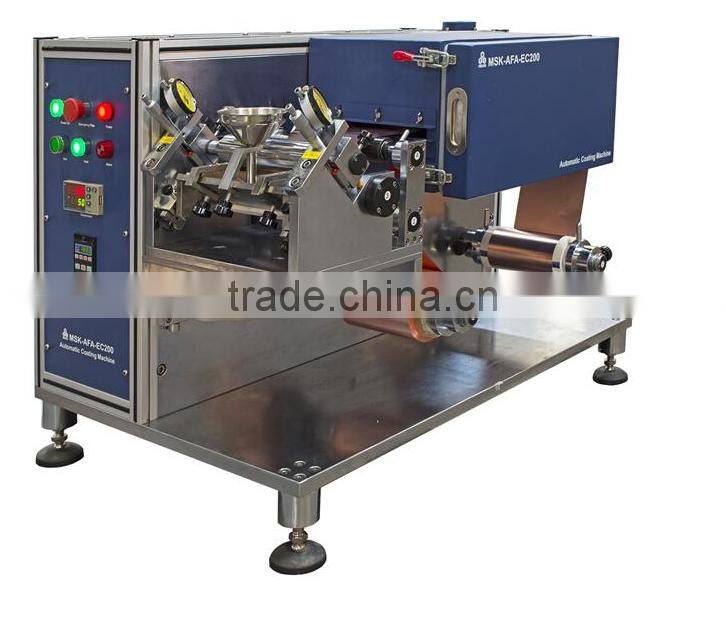

MSK-AFA-E200 Compact Roll to Roll Tape Casting Machine thumbnail-1

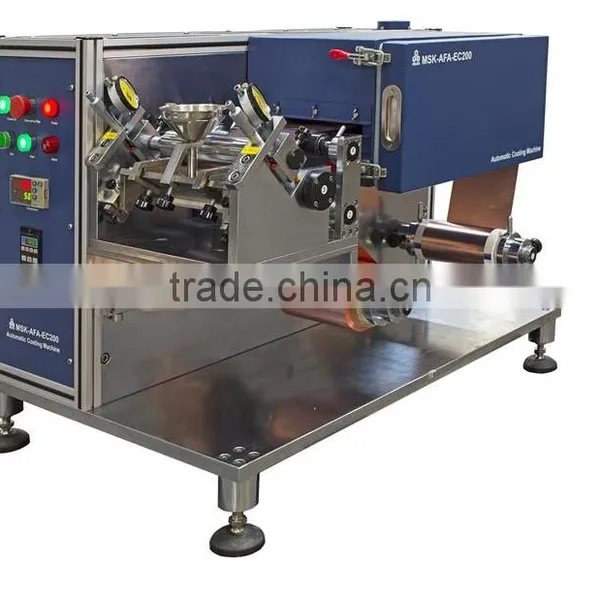

MSK-AFA-E200 Compact Roll to Roll Tape Casting Machine photo-1

US$ 9 - 9,999 MOQ: 1 Set

Key Specifications

Get Latest Price

Place of Origin:

Shandong, China

Brand Name:

WEIYI

Model Number:

MSK-AFA-E200

Contact Supplier Request Quote Chat Now

Laizhou Weiyi Experimental Machinery Manufacture Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

qingdao

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Shandong, China

Brand Name WEIYI

Model Number MSK-AFA-E200

Condition New

After-sales Service Provided No overseas service provided

Product Description

MSK-AFA-E200 is a compact Roll to Roll continuous coater for battery electrode sheets with a small footprint of 3.3‘x2.1' for battery research labs. This system integrates the functions/ features of reeling in & out, slurry feeder, coating blade, baking oven, and final electrode winding (reeling in). It can coat electrode sheets up to 160mm in width and 500 meter in length automatically.
Comparing with MSK-AFA-E300, MSK-AFA E200 lacks the controllable sheet tension function, but comes in a much smaller size.

SPECIFICATIONS:

Working Voltage	208 – 240VAC, 50/60Hz, Single phase
Max. Power Consumption	3 KW
Coating Width	50-160 mm Adjustable
Coating Speed	0-200 mm / minute
Thickness Precision	+/- 0.006 mm
Drying Oven Temperature	40-150°C +/- 1°C
Reel-out/in System	50mm (ID)
Max. Rolled Diameter	200mm (OD)
Max. Coating Length	Depending on coating and substrate thickness. Typically, 10um thick foil with 100um coating can get 500 meters of electrode length coated per run
Slurry Stirring	SS316 Moving Rod
Compressed Air	Requires 100 psi (Air compressor not included. Please click here to order)
Dimensions	1000mm(L) x 650mm(W) x 650mm(H)
Compliance	CE Certified
Warranty	One year limited warranty with life time support Rusting and damage due to improper storage condition or maintenance is not covered by warranty
Operation Instructions
Application Notes	Please click the picture below to learn roll to roll coating (web coating) method: Please use Acetone to clean and dry the doctor blade, slurry feeder, and roller to avoid rusting Customers are welcome to visit our facility to receive technical training before shipping of equipment (Please schedule an appointment with us in advance) On-site Training is available for customers within the US only (Expenses will be covered by customers)
Net Weight	400 kg (882 lbs)
