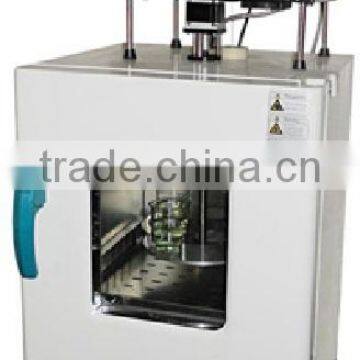

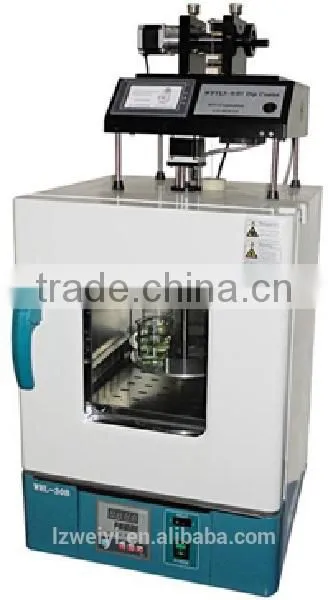

PTL-OV5P Automatic 5 Position Constant Temp Dip Coater

Name: PTL-OV5P Automatic 5 Position Constant Temp Dip Coater
Brand: WEIYI
SKU: 140785542
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Shandong, China

Brand Name:

WEIYI

Model Number:

PTL-OV5P

Laizhou Weiyi Experimental Machinery Manufacture Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

QINGDAO

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shandong, China

Brand Name WEIYI

Model Number PTL-OV5P

Power Electronic

Usage Other, specimen dip coater

Detail

Model:	PTL-OV5P Automatic 5 position Constant Temp Dip Coater
Brief Introduction:	PTL-OV5P Automatic 5 position Constant Temp Dip Coater is designed for samplemultilayer thin film coating in different solutions, can achieve 5 storey at most, widely used in the field of nanometer material, chemical industry, metal, etc. It's a necessary instrument for using in the universities and researching lab. CE Certified
Product Usage:	1 sample:Coating in 5 kinds of solution

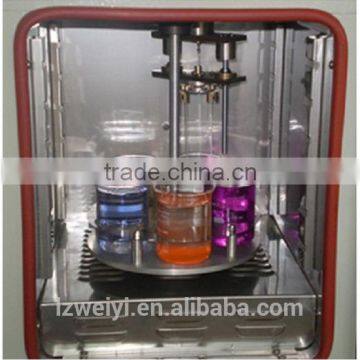

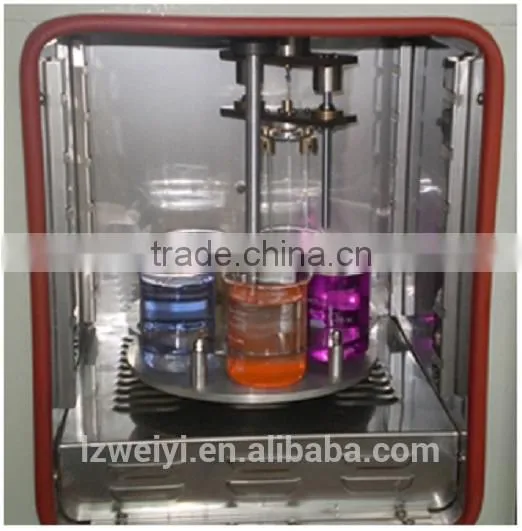

Main Feature:	Pulling and dipping speed are controlled by touch screen, you can set up pulling and dipping rate, dwell time. After coat in one solution, automatic turn to next working process, the whole process accomplish in the constant temp oven. 1. Pulling/dipping speed range:1mm-200mm/min 2. Speed stability:+/-0.05%. 3. Max. sample dimension:80x 40x 2mm. 4. 5 position liquid sample holderautomatic rotary by program 5. Built in150ml glass cup: 5pcs 6. Built infixture: 1pc 7. Constant temp range:room temp-200℃
Specification:	Size:500 x500 x1100mm Weight:45kg
