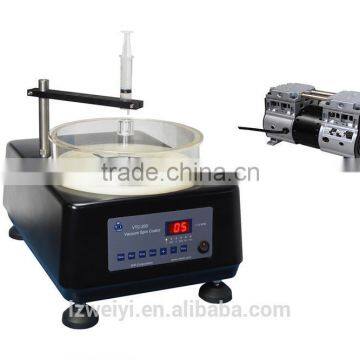

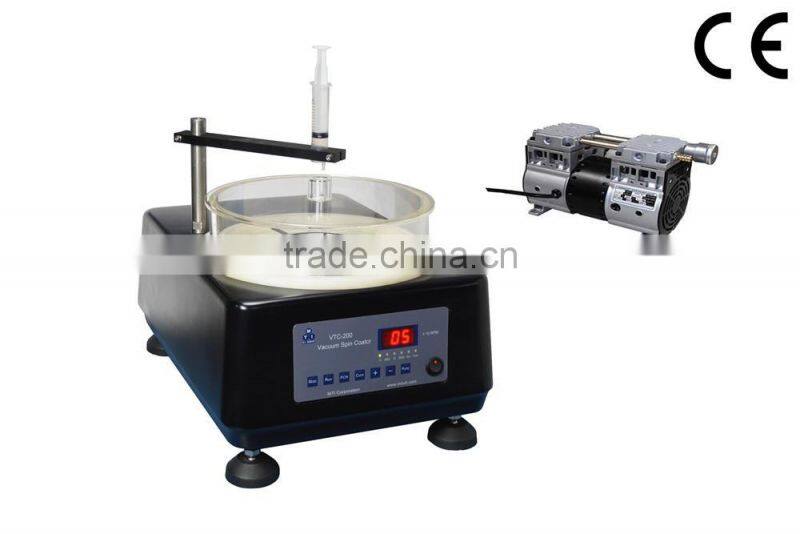

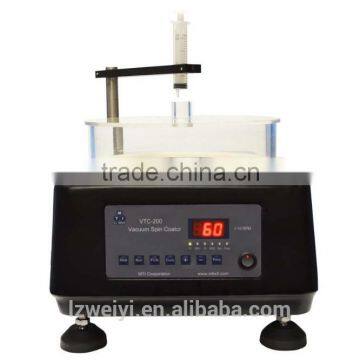

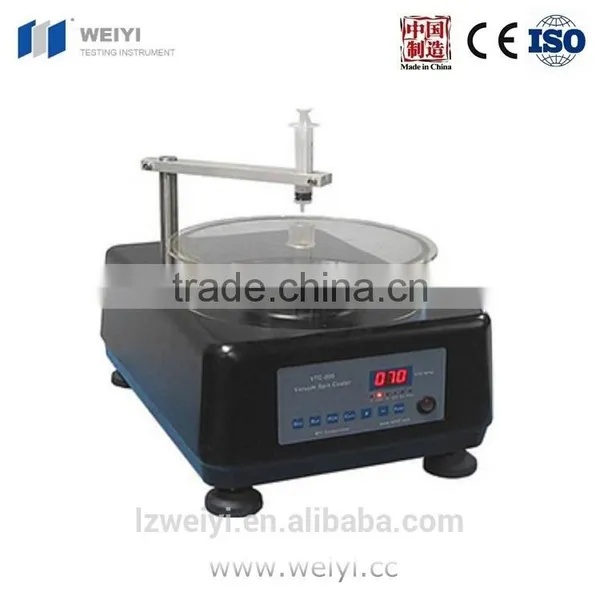

VTC-200 Vacuum Specimen Spin Coater

Model:

VTC-200 Spin Coater

Brief

Introduction:

VTC-200 Spin Coater is mainly used in the lab film formation; Take advantage of coating machine's high speed rotary, coating high coefficient of viscosity sol-gel and solution on the sample surface, widely used in the researching labs, universities and factories.

Main Feature:

1. Programmable two segments control speed;
2. Vacuum fasten substrate, easy to operate;
3. Aluminum casting structure(whole machine), stable, low noise

Technical

Parameter:

1. Speed adjustable:two segments can adjust between 500-5000rpm
2. Time adjustment:two segments 1-60sec
3. Vacuum pump flow rate:more than 60L/min
4. Power:70W

Specification:

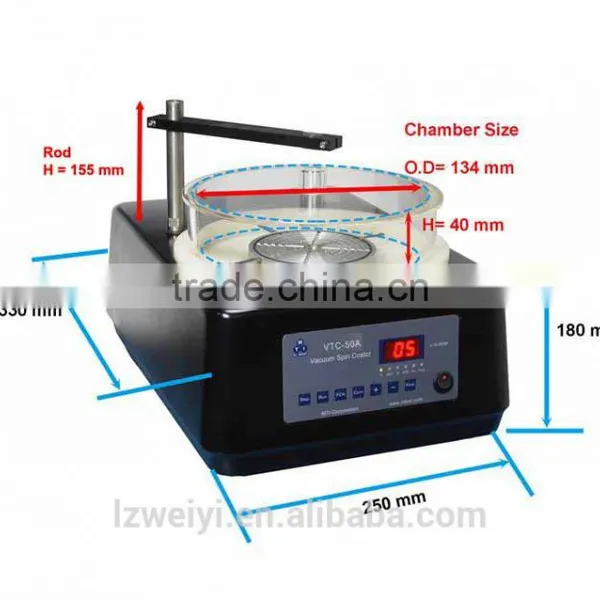

Size:500mm x 400mm x 400 mm, Weight:30kgs

Standard

Accessories:

1. Dia. 150mm,200mm vacuum chuck : each one pc
2. Slurry feeder: 1pc
3. Power cord: 1pc
4. 70L/min oilless vacuum pump

Optional

Accessories :

1. 60L/min Oil vacuum pump
2. Particular vacuum chuck
