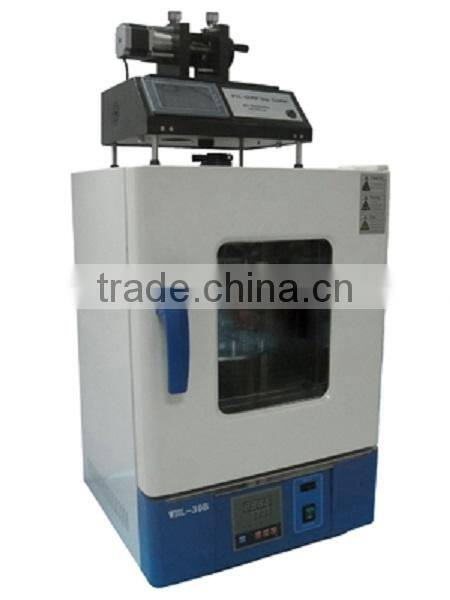

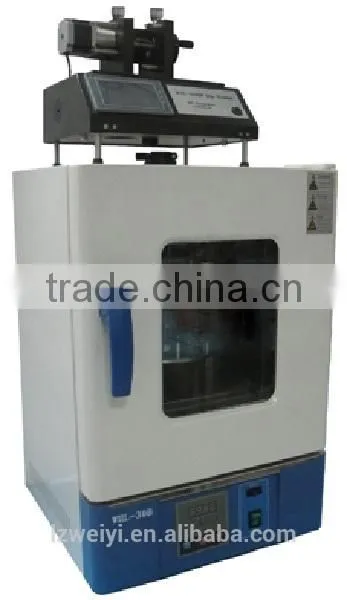

Laboratory Use PTL-OV6P 6 Position Dip Coater for Specimen Dip Coating

Model:

PTL-OV6P 6 position Dip Coater

Brief

Introduction:

 PTL-OV6P 6 position Dip Coater is designed for dipping and coating samples in all kinds of solutions. Mainly used in researching nanometer materials, surface treatment, and coating other materials. This instrument equips with constant temp oven and 6 positions, suitable for multi samples dipping and coating in the same temp and different concentration of the solutions.

CE Certified

Main Feature:

1. Multiposition, suitable for multi sample one time;
2. Precision pulling/dipping speed: 1mm-40mm/min;
3. Digital display dipping parameter;
4. Sample dimension:less than 80mm x 40mm x2mm;
5. 6 position sample hoider
6. Program control pulling/dipping speed, immersion time, drying time;
7. Constant temp range:room temp-100℃

Technical

Parameter:

1. Power supply:220V
2. Power:less than 800W
3. Constant temp range:room temp-100℃
4. Stainless steel constant oven inner dimension:280 x 280 x 280mm
5. Glass cup vol.:150mm, dia.:60mm

Specification:

Weight:40kg

Standard

Accessories:

1. Glass cup: 6pcs
2. Clamp: 1 set
3. Stainless steel micro-wire

Optional

Accessories :

All kinds of fixtures
