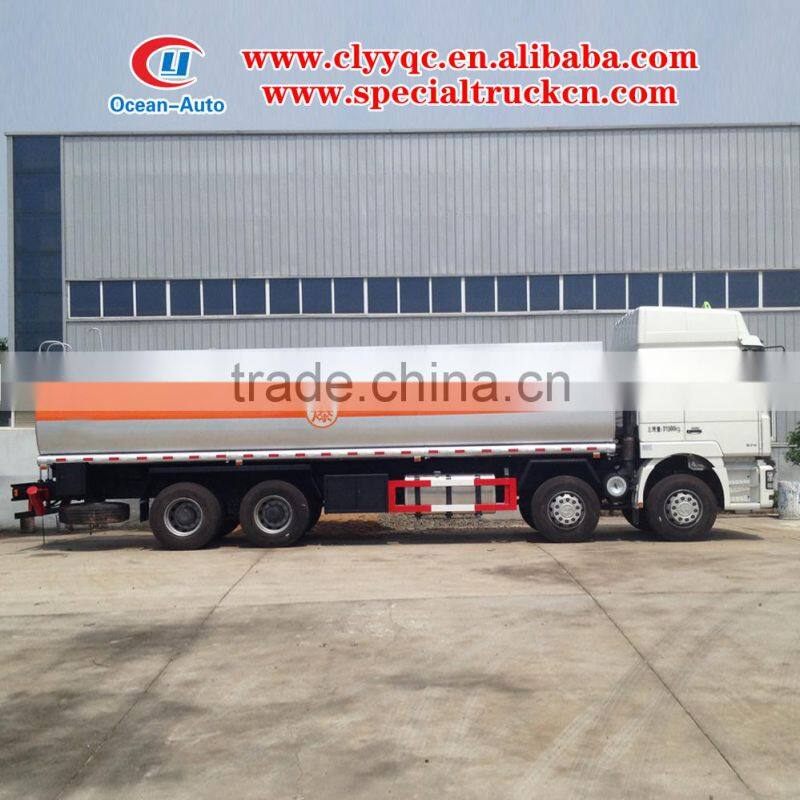

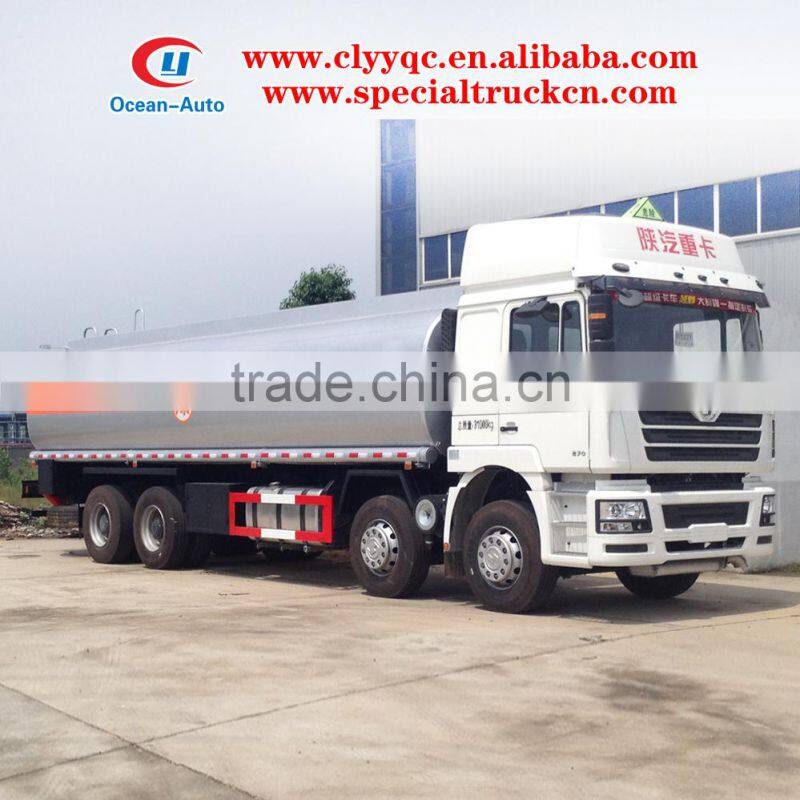

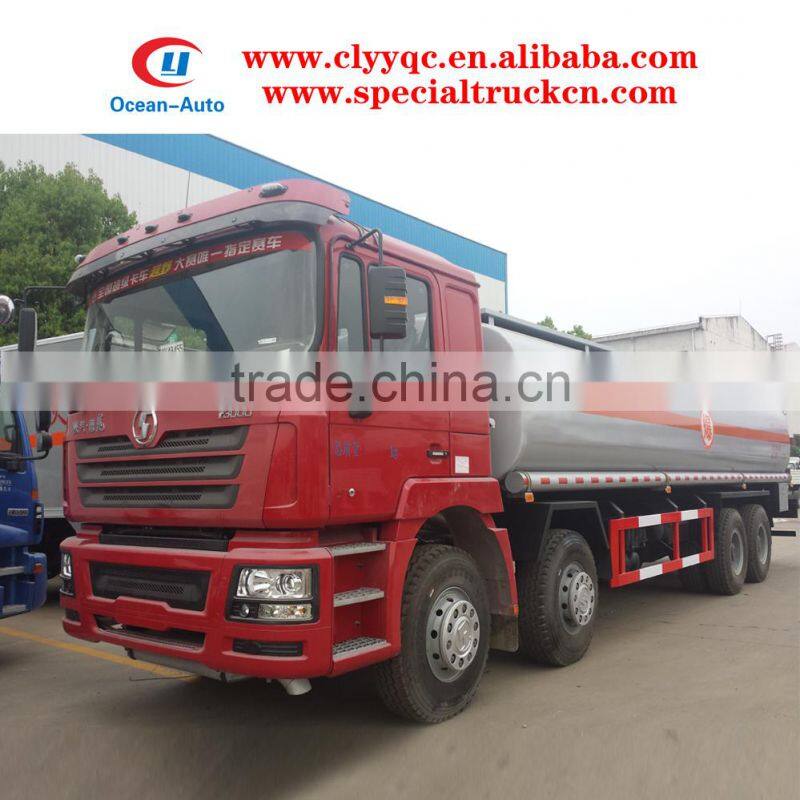

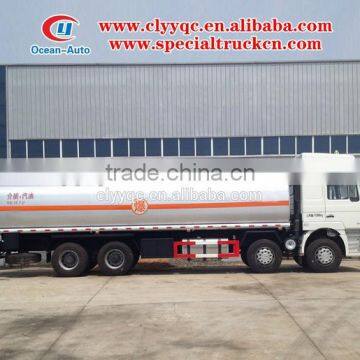

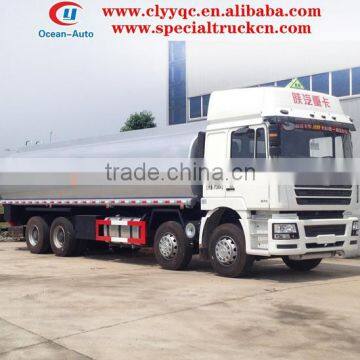

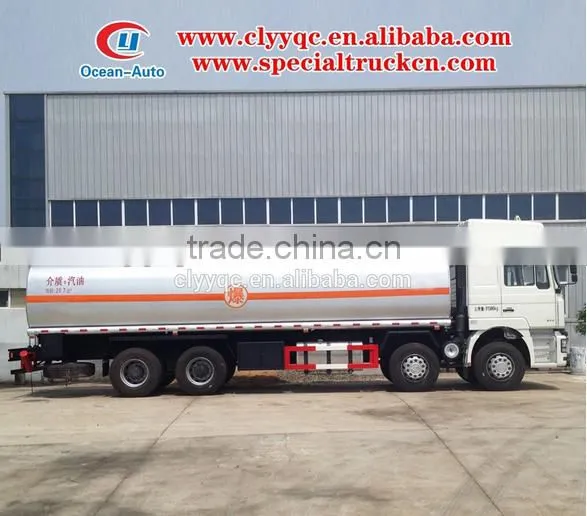

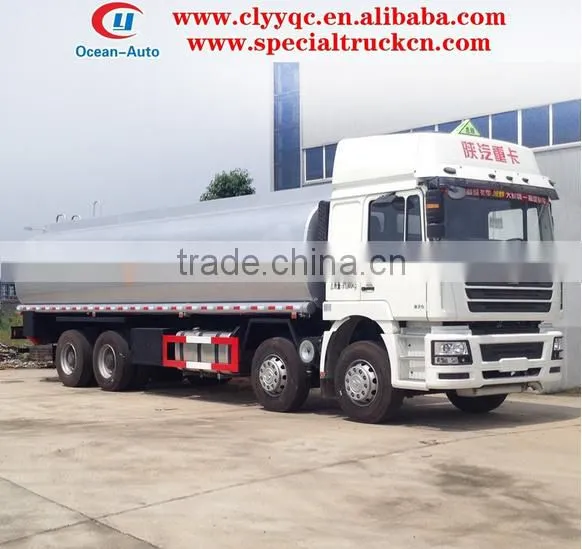

Tanker Truck Carbon Steel Truck for Sale

Name: Tanker Truck Carbon Steel Truck for Sale
Brand: SHAANXI
SKU: 140784782
Availability: InStock

US$ 55,000 - 58,000 MOQ: 1 Set

Key Specifications

Condition:

New

Storage:

Other, Oil, oil

Drive Wheel:

8x4

Hubei Ocean Special Automobile Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

any port in China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Storage Other, Oil, oil

Drive Wheel 8x4

Horsepower 251 - 350hp

Transmission Type Manual

Fuel Type Diesel

Tank Volume 15001 - 30000L

Engine Capacity 9726, 9726

Dimensions (L x W x H) (mm) 11990x2500x3720

Brand Name SHAANXI

Place of Origin Hubei, China

Model Number ALA5310GYYSX3

Gross Vehicle Weight 31000

specification

Tanker truck carbon steel truck for sale

1.factory sale directly,best price

2.ISO.CCC

Tanker truck carbon steel truck for sale

[Vehicle Parameter]
Vehicle model	CSC5160GJYDX5
Total Weight(kg)	31000	Driving style		8x4
Payload(kg)	17920	Overall dimension (mm)		11990x2500x3720
Curb Weight(kg)	12950	cab seats (man)		2/3
Approach/departure angle (°)	15/11	Front/rear hang(mm)		1525/2815
Number of axles	4	wheelbase(mm)		1800+4500+1350
Axle load(Kg)	6500/6500/18000	Max speed(Km/h)		78
[Chassis technical parameters]
Chassis model	SX1315NM456	Manufacturer		Shaanxi Automobile Group Co.,Ltd
Brand name	Shaanxi	Overall dimension (mm)		11675x2490x3720
Tire specification	12.00R20 16PR	Tires number		12
Steel spring number	13/13/12	Front tread		1939/1939
Type of fuel	Diesel	Rear tread		1800/1800
Emissions standards	Euro 3	Transmission		9forward gear,1 reverse gear
Cabin	F2000 extended high cab
Engine model	Engine manufacture		Displacement(ml)	Rated Power(kw)
WP10.270E32	Weichai Power Co., Ltd		9726	199
[Tank Parameter]
Tank volume(m³)	30
Tank material	Q235 carbon steel.
Transport medium	Gasoline/diesel.
[Tanker instruction]
A, with multiple baffle plates in the tank, the tank has the advantages of high intensity, stability, transporting safety etc. B, Oil pump is installed to suck or discharge oil, with high suction pressure and speed. C, according to users’ needs, the tank can be designed as a single compartment or several compartments to contain different oils. D, according to users’ needs, the side or the rear of the tank can be installed 1 to 3 self-flowing valves.
