5m3 JMC mini water tanker truck for sale
1.factory direct sale,best price
2.Certificate: ISO9001,3C.
3 new design, light weight, less oil consumption
4.Drive Mode: 4*2
5.capacity: 4-5m3

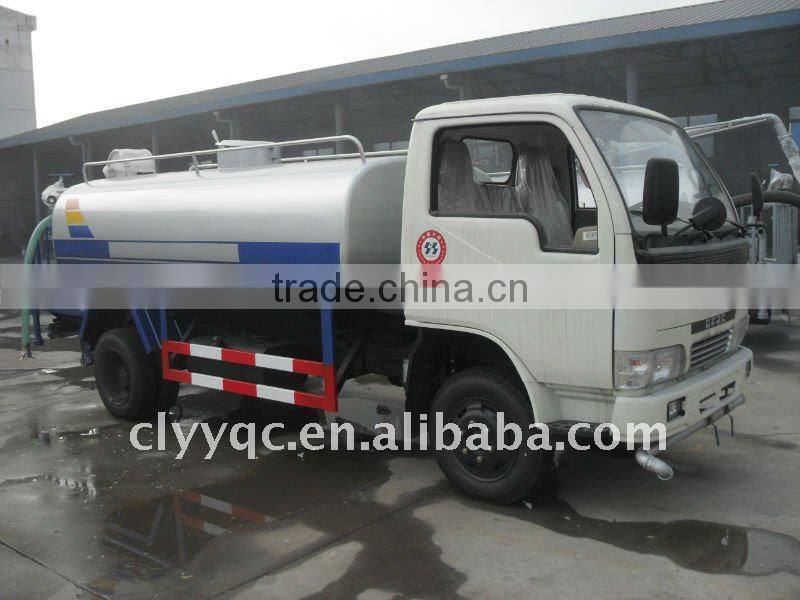

Product image:
mini water tanker truck
mini water tanker truck
paremeter
Product | CLW5043GSS3 water tank truck | Gross weight | 4080(kg) | |
Overall dimension | 5250*1840*2300(mm) | Rated payload | 1400(kg) | |
Chassis model | **(mm) | Kerb weight | 2550(kg) | |
Approach angle/Departure angle | 17/13(°) | Max speed | 90(km/h) | |
Front/rear suspension | 962/1688(mm) | Chassis model | EQ1041TJ20D1 | |
Engine | Manufacturer | Displacement | Power and horse | |
JX493ZLQ4 | Guangxi yuchai Power Co | 2771(ml) | 80(kw) | |
Fuel type | Diesel | Emission standard | GB3847-2005,GB17691-2005 Euro3 | |
Axle nos | 2 | Tyre nos | 6 | |
Wheelbase | 3360(mm) | Tyre specification | 6.50-16,6.50R16 | |
Axle load | 1620/2460 | Leaf spring nos | 6/8+4,8/9+5 | |
Front tread | 1404,1506,1460(mm) | Rear tread | 1458,1466(mm) | |
Remarks | Tank dimension (length×longer axis×shorter axis)(mm):2800/1100/700 Tank volume:4-5m3 | |||
The picture and parameter mentioned above is only for reference. The Specific product will be produced according to your order.
This parameter list is the standard type of truck for this chassis, if you have any other special requires such as you need to add some other components for the truck, please tell us, we will try our best to meet any of your demand.
By the way, You can tell us you buy the truck for what kind of work, and used in what kind of circumstance, so we can give you more suggestions for what kind of truck meet your requirement best.
If you have any other questions please feel free to contact us!
