small off-highway dump trucks
factory direct sale,best price
1. Certificate ISO9001
2. 2axle,6 wheels
3.loading capacity 15t
4.new design heavy duty, less oil consumption
FEATURE&FUNCTION :
1 Cabinet material: edge 4mm bottom 5mm China wuhan steel quality carbon steel. Durable and be resistant against the rock’s smash. The main parts adopt the imported steel sheet, which promises the strength of the whole carriage is 3.2 times as strong as the common ones. 2. Light weight: The weight of the mine rimula dump truck is 1.6-2.5 tons lighter than the common dump trucks, which saves the cost of the diesel fuel $4000 every year. 3. Low gravity: More stable and effectively reduce the abrasion of the tires. 4. Unique structure: The main part of the carriage is pressed out of one entire sheet in one time. Therefore, the welded rips are greatly reduced so that the strength improved a lot. 5. Special hydraulic system: Marvelous appearance and the fast lifting/lowing function. |

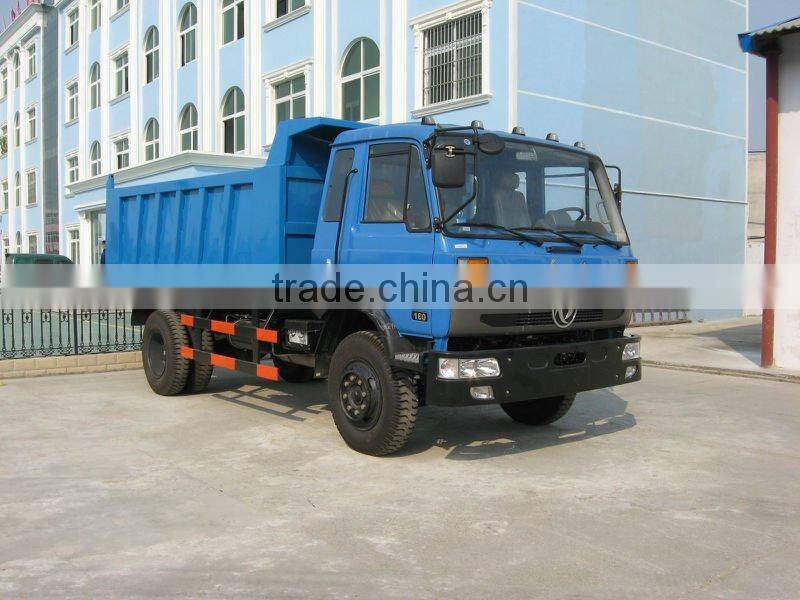

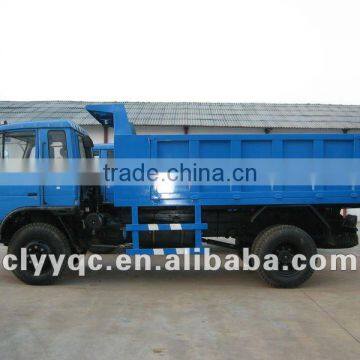

product image:
dump truck
dump truck
Main parameter
Vehicle model | CLW5160ZLJ3 garbage dump truck | Batch No. | 208 |
Manufacturer | Hubei Chengli Special automobile Co. ,Ltd(china) | Brand name | CLW |
Overall dimension(mm) | 7000×2490×2980 | Total weight(Kg) | 15990 |
Body internal dimension(mm) | 4480×2210×800 | Rating load(Kg) | 9500 |
Approach/departure angle | 34/15 | Curb weight(Kg) | 6295 |
Front/rear hang(mm) | 1250/1800 | Max speed(km/h) | 80 |
Chassis model | EQ1162GJAC |
|
|
Engine model | Engine manufacturer | Emission | Power |
B170 33 B190 33 | Dongfeng Cummins engine company | 5900 5900 | 125 140 |
Fuel type | Diesel | Emission standard | EGR |
Axle number | 2 | Tyre number | 6 |
Wheelbase | 3950 | Tyre specification | 9.00-20,10.00-20 |
Axle load | 5990/10000 | Front wheel distance | 1910,1940 |
Leaf spring number | 9/11+8 | Rear wheel distance | 1800,1860 |
The picture and parameter mentioned above is only for reference. The Specific product will be produced according to your order.
For more information about the delivery, warranty,payment,more specific details , please don't hesitate to contact with us!
International Trade Manager Rokc Hwang
Tel.0086-13886861936 0086-0722-3819709 Fax 0086-0722-3819809
Official website international
Hubei Chengli Special Automobile Co.,Ltd
Factory Address: Chengli Auto Industrial Park, Suizhou City, Hubei Province, China
