3axle Dongfeng dump truck 30ton 6*4 biggest truck for sale
factory direct sale,best price
1. Certificate ISO9001
2. 3 axle,12 wheels
3.loading capacity 30t
4.new design heavy duty, less oil consumption
FEATURE&FUNCTION :
1 Cabinet material: edge 4mm bottom 5mm China wuhan steel quality carbon steel. Durable and be resistant against the rock’s smash. The main parts adopt the imported steel sheet, which promises the strength of the whole carriage is 3.2 times as strong as the common ones. 2. Light weight: The weight of the mine rimula dump truck is 1.6-2.5 tons lighter than the common dump trucks, which saves the cost of the diesel fuel $4000 every year. 3. Low gravity: More stable and effectively reduce the abrasion of the tires. 4. Unique structure: The main part of the carriage is pressed out of one entire sheet in one time. Therefore, the welded rips are greatly reduced so that the strength improved a lot. 5. Special hydraulic system: Marvelous appearance and the fast lifting/lowing function. |

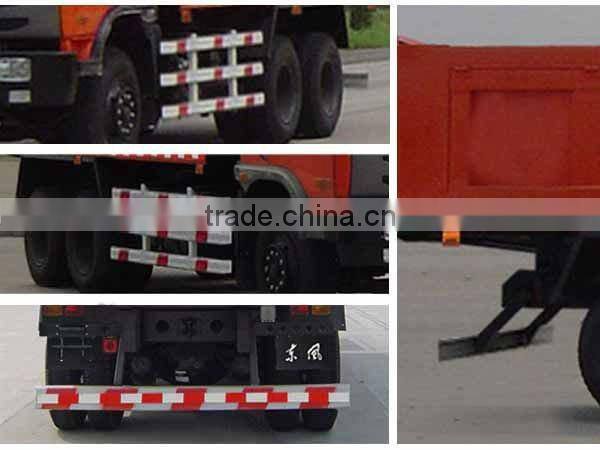

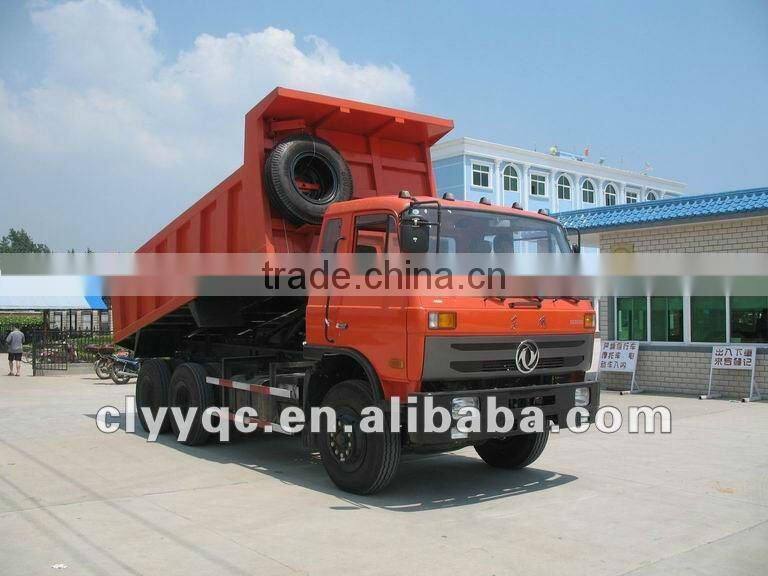

product image:
dump truck
Main parameter
Item | unit | parameter | ||
Vehicle model |
| CLW3200 Dump Truck(210hp) | ||
Chassis model |
| EQ3208VPJ3 | ||
Overall dimensions | mm | 7900×2500×3100 | ||
| Fact loading | kg | 25000-26000 | |
Mass in working order | kg | Appro×9795 | ||
Body internal dimensions | mm | 5300×2300×1200 | ||
Wheel base | 3600+1300 | |||
F/R track base | 1940/1860 | |||
Approach/departure angle | ° | 32/18 | ||
Exhaust/kw | ml/kw | 6700/155 | ||
Max speed | km/h | 80 | ||
Tire specification | 10.00-20 | Engine type | ISDe210-30 | |
Traction system | 6×4 | transmission | 6-speed with over drive | |
Number of axles | 3 | Electric system | 24v | |
Operation control system | Electrically hydraulic control | Allowable passengers in cab | 3 | |
Equipment | Equipped with dustbin, hydraulic system and operating system | |||
Engine | DongFeng Cummins Environmental Protection,supercharge,diesel engine | |||
Production cycle | 20-25 days | |||
Warranty | 12 month,from the date of supply | |||
The picture and parameter mentioned above is only for reference. The Specific product will be produced according to your order.
For more information about the delivery, warranty,payment,more specific details , please don't hesitate to contact with us!
International Trade Manager Rokc Hwang
Tel.0086-13886861936 0086-0722-3819709 Fax 0086-0722-3819809
Official website international
Hubei Chengli Special Automobile Co.,Ltd
Factory Address: Chengli Auto Industrial Park, Suizhou City, Hubei Province, China
