Home > Transportation > Truck > Dump Truck > Dongfeng Dump Truck

Dongfeng Dump Truck

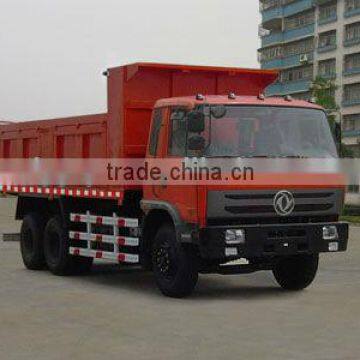

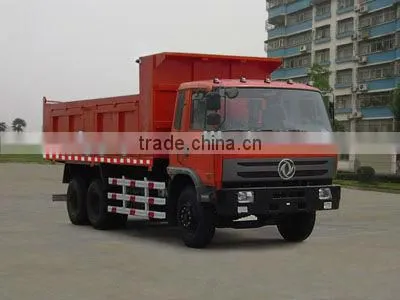

Dongfeng Dump Truck photo-1
US$ 10,000 - 20,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Drive Wheel:
4x2
Capacity (Load):
11 - 20t
Horsepower:
150 - 250hp
Payment & Shipping
Payment Methods:
Port of Shipment:
any port in China
Delivery Detail:
Delivery time depends on order quantity.
Drive Wheel 4x2
Capacity (Load) 11 - 20t
Horsepower 150 - 250hp
Condition New
Transmission Type Manual
Emission Standard Euro 3
Fuel Type Diesel
Engine Capacity 6 - 8L
Gross Vehicle Weight 20490
Place of Origin Hubei, China
Brand Name CLW
Model Number CLW3200
Dimensions (L x W x H) (mm) 7800,7900x2500x3100



Dongfeng dump trucks specification:

Vehicle model

CLW3200 dump trucks

Batch No.

230

Manufacturer

Hubei Chengli Special automobile Co. ,Ltd(china)

Brand name

CLW

Overall dimension(mm)

7800,7900×2500×3100

Total weight(Kg)

20490

Body internal dimension(mm)

××

Rating load(Kg)

10500

Approach/departure angle

32/18

Curb weight(Kg)

9795

Front/rear hang(mm)

1245/1755

Max speed(km/h)

80

Chassis model

EQ3208VPJ3





Engine model

Engine manufacturer

Emission

Power

ISDe210 30

Dongfeng Cummins engine company

6700

155

Fuel type

Diesel

Emission standard

Eur 3

Axle number

3

Tyre number

10

Wheelbase

3600+1300

Tyre specification

10.00-20,11.00-20,10.00R20,11.00R20

Axle load

5600/14890(double axle)

Front wheel distance

1940

Leaf spring number

8/13

Rear wheel distance

1860/1860

Remarks

Also known as dumpers. By the car chassis, hydraulic lifting mechanism, cargo compartment and power take-off device components.



Others

Correspondence between Overall length (mm), the cargo box length (mm) and rear overhang (mm): 7800/4750/1655, 7900/5300/1755. Dump the way: after unloading. Protective Material: Q235A carbon steel. Connection: around the side and rear underrun protection are welded connection, rear protective section size (mm): 180 × 50 × 5, the rear protective ground clearance (mm): 450.
