Dongfeng 4x2 4 Ton Munck on Truck for Sales

Name: Dongfeng 4x2 4 Ton Munck on Truck for Sales
Brand: Dongfeng
SKU: 140784312
Availability: InStock

US$ 28,000 - 30,000 MOQ: 1 Set

Key Specifications

Condition:

New

Application:

Engineering & Construction

Rated Loading Capacity:

3850 kgs

Hubei Ocean Special Automobile Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Application Engineering & Construction

Rated Loading Capacity 3850 kgs

Rated Lifting Moment 10 T.M

Max. Lifting Load 4 ton

Max. Lifting Height 10 / 11.5m

Span 1

Place of Origin Hubei, China

Brand Name Dongfeng

Model Number CLW5100JSQT3

Certification ISO, CCC

Warranty One year

After-sales Service Provided Engineers available to service machinery overseas

Dongfeng 4x2 4 ton Munck on Truck for Sales

Main specification

1.Technical Specification

[Main specifications]
Product model,name	CLW5100JSQT3Truck With Crane
Gross vehicle weight(kg)	10495		Drive type				4 x 2
Payload(kg)	3850		cab seats (man)				3
Curb weight(Kg)	6450		Overall dimension (mm)				8000×2470×3150
Approach/departure angle (°)	34/16		Box internal dimension(mm)				4500×2274×550
Number of axles	2		Front/rear hang(mm)				1065/2235
Axle load(Kg)	3940/6555		Wheelbase(mm)				4700
Max speed(Km/h)	80
[Chassis specifications]
Chassis model	EQ1102FLJ6			Brand name			Dongfeng
Manufacturer	Dongfeng Motor Corporation			Tires No.			6
Approach/departure angle (°)	34/20			Tire specification			9.00-20
Steel spring number	9/11+8			Front track(mm)			1810
Fuel type	Diesel			Rear track(mm)			1800
Emission standard	Euro III			Transmission			9 gears
Cabin
Engine model	Engine manufacturer				Displacement(ml)		Power(Kw)
YC4E140-33	Dongfeng engine co., LTD				4260		105
[Crane specification]
Crane model	SQS84 / SQS100	Crane brand				XCMG
Type of Crane	Telescopic boom ( folding crane can be optional)
Max lifting weight(kg)	4000	Max lift height(m)				10 / 11.5
Working radius(m)	7.93 / 9.4	Operation method				High seat operation / floor operation
Number of sections	3 / 4	Outrigger (pcs)				2 / 4
[Functions]
The truck consists of chassis, box, power take-off and crane, achieving cargo lifting and movingthrough hydraulic lifting andtelescopic system. In general, H-type outrigger is equipped to realize its stability. To be further strengthened stabilityof the truck, rear outrigger also can be equipped if the customer require. The truck can 360 ° continuously rotate.

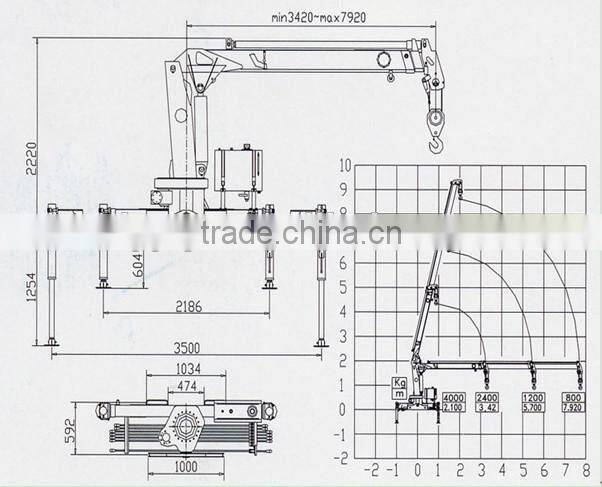

Technical Specification of 4ton crane (3 arms)

Crane Model	Max lifting height	Max Lifting Moment	Recommend Power	Max flow of hydraulic system	hydraulic system rated pressure	Tank Volume	Slewing Angle	Curbe weight	Installation space
SQ4S84	4000KG	10 T.M	16 KW	25 L/MIN	26 MPA	60 L	360	1350 KG	850 MM

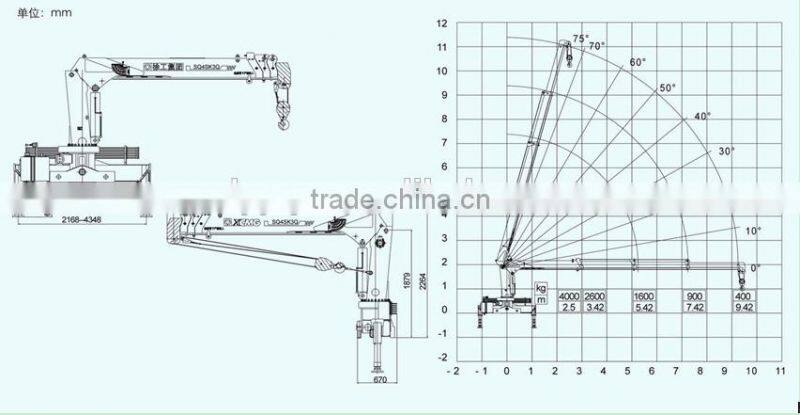

Technical Specification of 4ton crane (4 arms)

Crane Model	Max lifting height	Max Lifting Moment	Recommend Power	Max flow of hydraulic system	hydraulic system rated pressure	Tank Volume	Slewing Angle	Curbe weight	Installation space
SQS100	4000KG	10 T.M	16 KW	25 L/MIN	20 MPA	60 L	360	1510 KG	850 MM
