Specifications
Dongfeng Kingland 8*4 LPG truck 35m3 manual lpg cylinder vehicle pricecummins engine 290ph
capacity 35m3
transport truck
Dongfeng Kingland 8*4 LPG truck 35m3 manual lpg cylinder vehicle price
cummins engine 290ph
capacity 35m3
transportation media:propane
factory sale
Feature& Fuction
It takes advantage of compression resistant tank for transporting and laying up the liquefied , which is the special-purpose vehicles(For example propane , propylene, liquid ammonia, liguid nitrogen, liquid hydrogen, liquefied netural gas , liquid state sulphur dioxide and so on ).
Tank shaped use the advanced welding technology, end socket arc butt welding, and the once-forming of composite steel-plastic technology. Equipped with active and passive safety devices to meet an emergency and can load and unload the material in long distance and completely close condition. Be applied to transport varied oil, feul and chemical material, such as natural gas, liquefied petroleum gas, liquefied ammonia, carbon bisulfide, epoxy ethane, gas, butane, dimethylmethane, propylene, etc. Cross section of tank could be oval, round and round-square. heat insulation and heating device is optional.
Specifications
Main specifications | ||||||||
Product model,name | CLW5311GYQD LPG Transportation Truck (transportation media:LPG/propane) | |||||||
Total weight(Kg) | 31000 | Tank capacity(m3) | 34.50 | |||||
Payload (Kg) | 14490 | Overall dimension(mm) | 11700×2500×3720 | |||||
Curb weight(Kg) | 16315 | Tank size(mm) | inner diameter×wall thickness×length: 2450×12×8757 | |||||
Tank material | Q345R | Design pressure (Mpa) | 1.61 | |||||
cab seats (man) | 3 | Design temperature(°C) | 50 | |||||
Filling capacity per unit(t/m3) | 0.42 | Tank corrosion allowance(mm) | 1 | |||||
Approach/departure angle (°) | 26/9 | Front/rear hang(mm) | 1460/2740 | |||||
Number of axles | 4 | wheelbase(mm) | 1950+4250+1300 | |||||
Axle load(Kg) | 6500/6500/18000( double axle) | Max speed(Km/h) | 80 | |||||
Configuration instructions | Single out the liquid,double side loading and discharge,Double valve boxes, single tool box,safety valve,thermometer,pressure gauge,emergency shut-off valves,fire extinguisher , anti-static grounding tape. | |||||||
Chassis specifications | ||||||||
Chassis model | DFL1311A3 | Chassis category | the truck classis (class 2) | |||||
Brand name | Dongfeng | Manufacture | Dongfeng Motor company | |||||
Overall dimension(mm) | 11475×2500×3690 | Tires No. | 12 | |||||
Approach/departure angle (°) | 28/12 | Tire specification | 11.00R20,295/80R22.5 | |||||
Steel spring number | 9/9/10 | Front track(mm) | 1940/1940 | |||||
Type of fuel | Diesel | Rear track(mm) | 1860/1860 | |||||
Emission standard | GB3847-2005,GB17691-2005 EuroⅢ | |||||||
Chassis model | Engine manufacture | Displacement(ml) | Power(Kw) | |||||
ISDe270 30 ISLe290 30 L270 30 L290 30 | Dongfeng cummins engine co.,ltd Dongfeng cummins engine co.,ltd Dongfeng cummins engine co.,ltd Dongfeng cummins engine co.,ltd | 6700 8900 8900 8900 | 198 213 199 213 | |||||

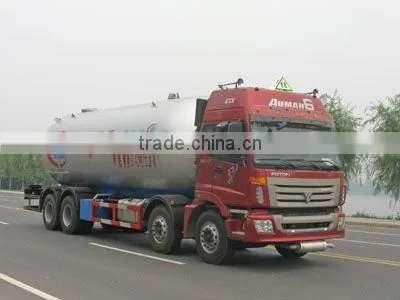

Product pictures:
Cetificate
Notes:
A. Delivery time: Normally with 10-25days after received your first deposit.
B. Payment item: Normally 30% in advance and the balance should be paid before the shipment after your checking and confirmed.
C. Guarantee time and services: from the vehicles safely arrived at destination and under proper operation situation, normally 12 months, but the whole life supply maintenance
Anything unclear, just feel free to contact with me !
Tel:86-13872887006 Emma
Fax:86-722-3819809
Skype: truckcl1
You are welcomed to our facoty to have a visit!
Address: Chengli Auto Industrial Park, Suizhou City, Hubei Province, China.
