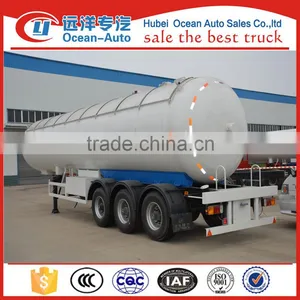

China Supplier 3 Axles LPG Gas Trailer for Sale
- 200 Set / Sets per Month
- Shanghai or other port of China
- T/T L/C D/P D/A Credit Card PayPal
- cryogeinc Liquid Nitrogen container Spray 500ml tank 300ml bottom low temperature cryo device
- 30liter liquid gas machine liquid nitrogen dewar for medicine cryo use
- ln2 Self-pressurized container dewar factory trolley low pressure tank liquid nitrogen pipe 50l
- liquid argon tank sizes, liquid nitrogen cylinder sizes, liquid co2 tanks
- liquid petroleum gas tank, liquid co2 storage gas tank, liquid gas cylinder
- China Liquid Gas Tanks, Liquid Gas Tanks Manufacturers, Suppliers
Product Details
Condition: | New | Place of Origin: | Hubei, China | Brand Name: | CLW BRAND |
Model Number: | CLW9390GYQ | Dimension(L*W*H): | 12700*2500*3975mm | Capacity: | 56cbm |
Weight: | 39000Kg | After-sales Service Provided: | Overseas service center available |
Product Description
1. We are professional manufacturers for the special vehicles,locate in Suizhou City,Hubei province,which is the birthplace of special purpose vehicle. We coulld supply all kinds of brand of special trucks, such as Dongfeng ,Faw,Jmc,Shacman,north Benz(beiben),Toton,Sinotruck,Jac,etc.
2.The drive type could be 4X2, 4X4, 6X2, 6X4, 6X6, 8X4
3.LHD (left hand drive) or RHD (right hand drive) vehicles are optional .
4.We can customize the truck according to your requirement, such as material, tanker capacity, color, paint, logo, etc.
Below specification is just for your reference. More information of our Special Trucks, please feel free to contact with Ms. Silvia Lee. We have a professional team and professional answer for you.
LPG Tank Semi-trailer Specification | |||
1.Product model | CLW9390GYQ LPG Tank Semi-trailer | 2.Complete Vehicle Size Longth*width*height | 12700*2500*3975mm |
3.Material | Q345R | 4.Tank Reference Dimension (Bore*Thickness*Length) | 2450*12*12340mm |
5.Head Shape & Thickness | Bielliptic δ12 | 6.Tank Capacity | 56CBM |
7.Filling Medium | C3H8 | 8.Filling Quantity in Unit Volume of Tank | 0.42Ton/m³ |
9.Designing Pressure | 1.61 MPa | 10.Total Weight | 39000Kg |
11.Curb Weight | 15480Kg | 12.Rated Load | 23520Kg |
13.Axle Base | 6865+1310+1310 | 14.Number of Axles | 3 |
15.Tyre Number | 12 | 16.Tyre Type | 12R22.5 12PR |
17.Rear Track | 1840/1840/1840 mm | 18.Axle Type | 13TBPW*3 |
19.Outrigger | JOST28T | 20.Drawbar Pin | JOST90# or 50# |
Configuration Directives | Single outlet, both sides handling, double valve box,safety valve, thermometer, piezometer, emergeny cut-off valves,a spare tire,fire suppression bottle,anti-static grounded tape,iron fender,with ABS. |
1.About the package of our semi-trailers , usually it is nude that covered with wax.And it also can be packed as your need.
2.About the shipping,there are many ways,such as Ro-Ro Ship / Bulk transport / Container packing / SKD / etc. And it can be offered according to your request.
More details about how to operate and maintain the semi-trailers,please contact me directly, we have a professional team and professional answer for you.
Our sales team will try our best to provide the information what is your needs. All questions response in 12 hours. We are glad to service for you.
