Tri-axle 50000 Liters Fuel Tank Trailer With Tractor

US$ 19,500 - 23,000 MOQ: 1 Set

Key Specifications

Type:

Semi-Trailer

Material:

Steel

Certification:

Other, ISO9001

Hubei Ocean Special Automobile Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai China

Delivery Detail:

Delivery time depends on order quantity.

Type Semi-Trailer

Material Steel

Certification Other, ISO9001

Size 12990*2500*3900 mm

Max Payload 50 Tons

Place of Origin Hubei, China

Brand Name CLW

Model Number CLW9403GYY

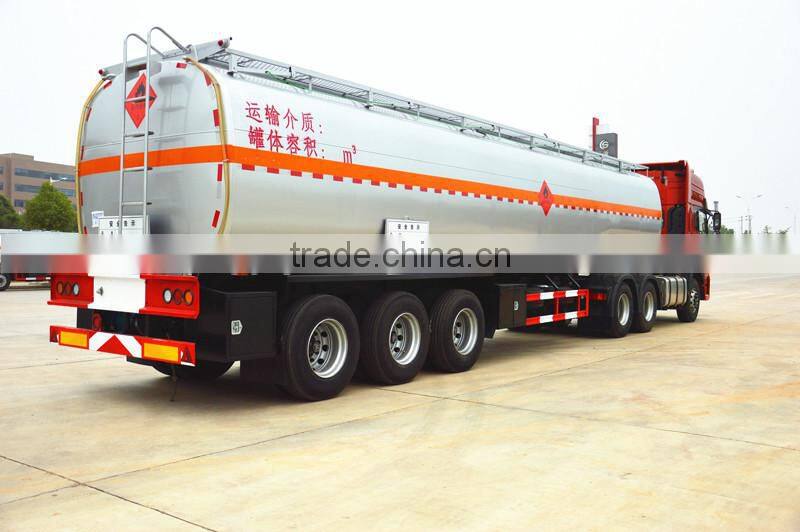

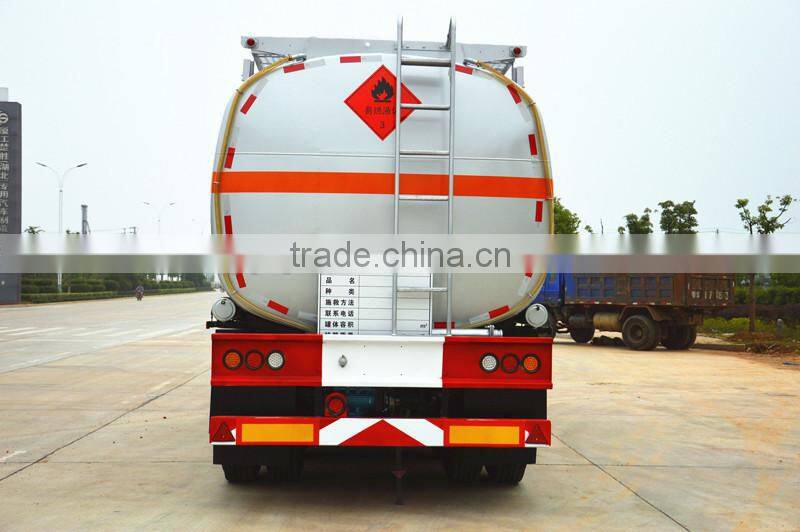

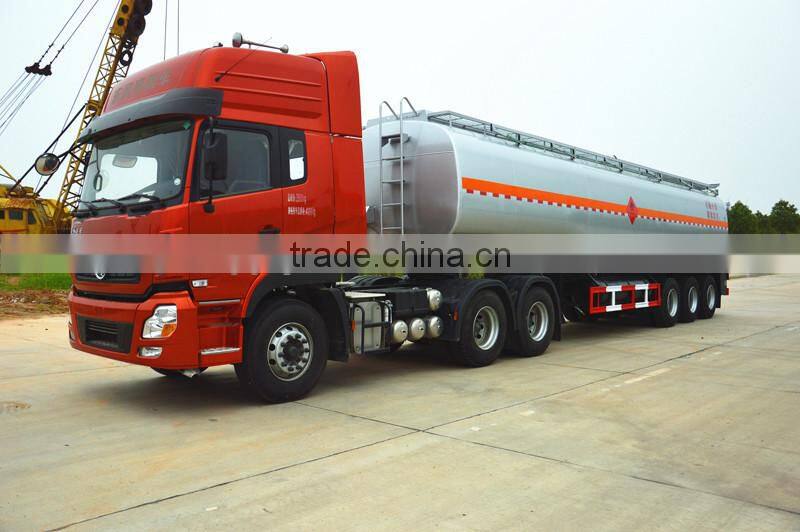

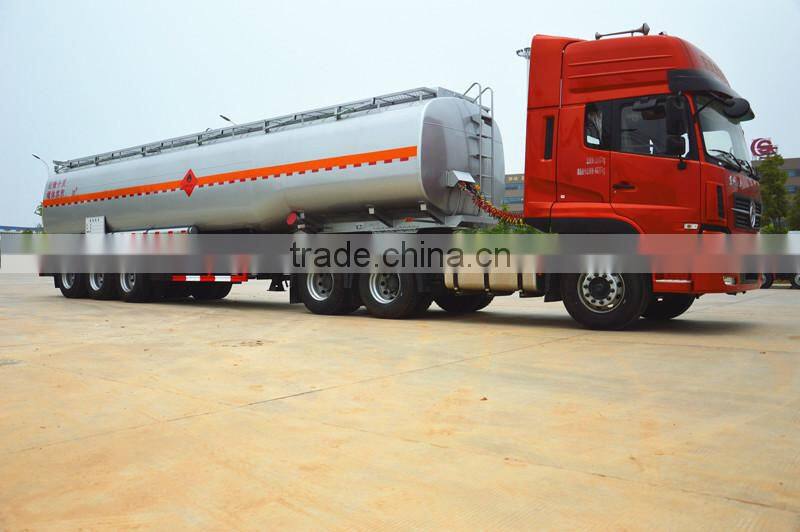

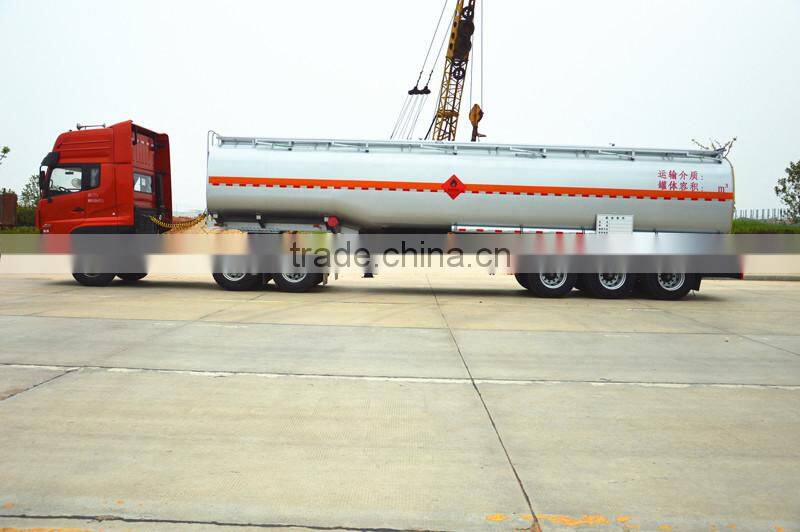

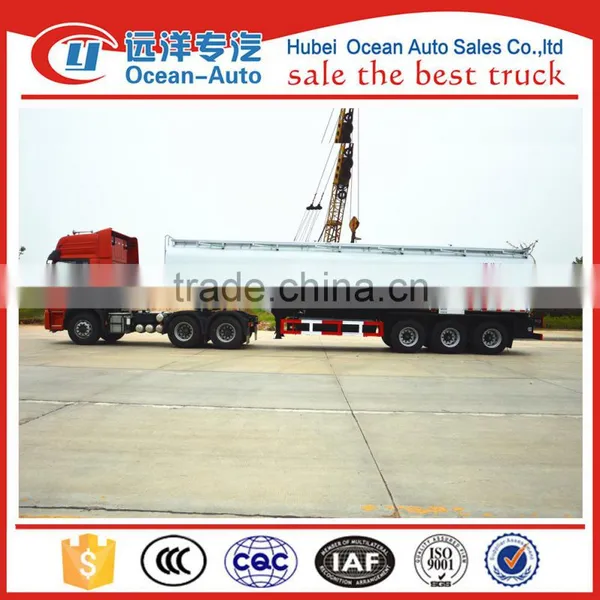

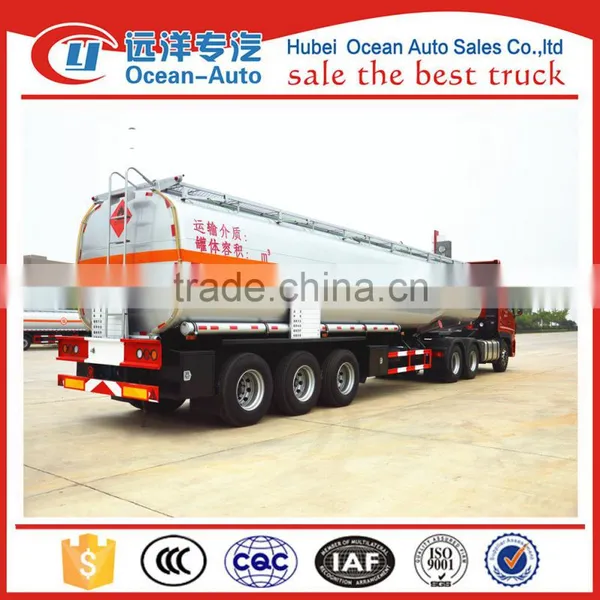

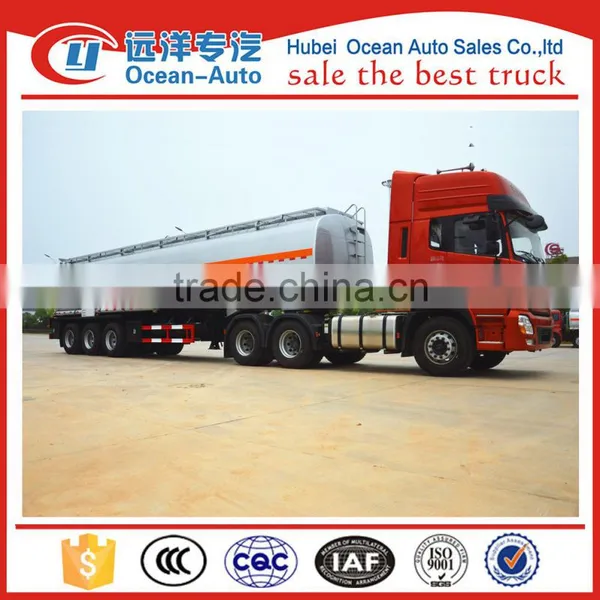

Tri-axle 50000 Liters Fuel Tank Trailer with Tractor

Main specification

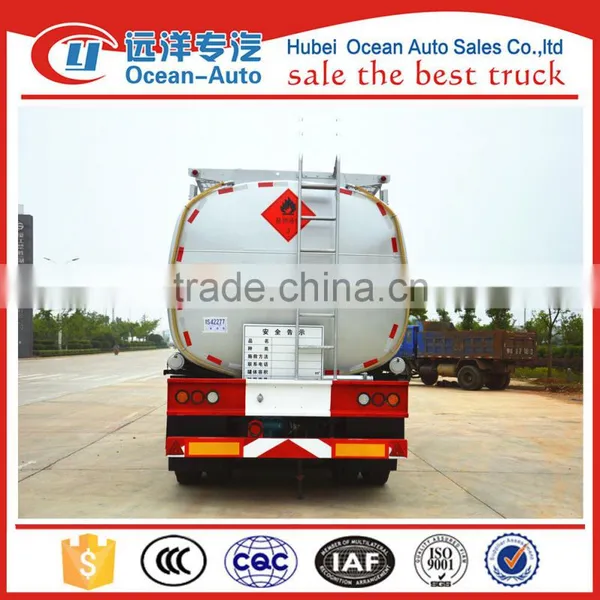

Techincal specification for Fuel tanker semi trailer

I.Main specifications
Product model,name	fuel tank trailer( Chemical truck)
Total weight(Kg)	40000	Overall dimension (mm)	12990×2500×3900
Payload (Kg)	32830	Front/rear hang(mm)	-/1870
Curb weight(Kg)	7170	Wheelbase(mm)	7200+1310+1310
Tank volume( m3)	50	Approach/departure angle (°)	-/16
Number of axles	3	Axle load(Kg)	-/24000
Tank material	Q235B carbon steel
Axle	Fuhua13T(Fuhua15T,16T or BPW12T,14T optional)
Support leg	28T
Tow point	90#
II.Others	Truck equipped with Euro standard tank mouth, anti-slipping ladder, safety walkway, handrail, water box, electrostatic belt, fire extinguisher, toolbox, spare tire rack and so on.
III.Instructions	Equipped with multiple wave-proof plates, the tank has the characteristics of high strength, excellent stability, safe transportation.. According to the requirements of clients, the tank can be divided into many compartments for different oils;In addition,oil pump, flow meter,liquid level indicator,bottom valve ,heating pipe, insulation layer and other devices are optional.What's more, 1-3 self-flow mouths or more can be installed on the the back and the side of the tank.It depends on customers' requirements.
IIII.Applications	For transport oil

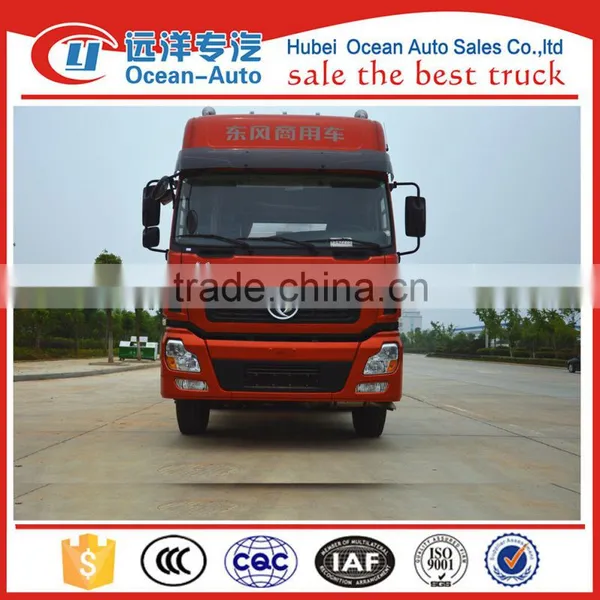

Techincal specification for Tractor

I.Main specifications

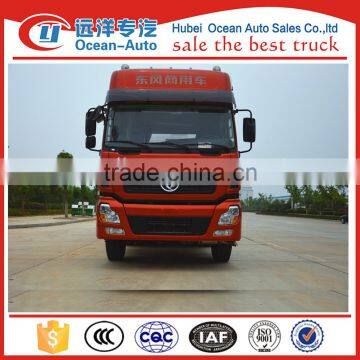

Product model,name	Dongfeng Kingland DFL4251AXA Tractor
Total weight(Kg)	25000	Overall dimension (mm)	6810×2500×3600,3700
towing trailer weight(Kg)	39600,40000	Front/rear hang(mm)	1500/1010,1500/810
Curb weight(Kg)	7900	Wheelbase(mm)	3200+1350
Cab(man)	2,3	Approach/departure angle (°)	18/32
Number of axles	3	Axle load(Kg)	7000/18000
Emission standard	Euro Ⅲ	Max Speed(km/h)	98
Engine model	Engine manufacture	Displacement(ml)	Power(Kw)
L375 30	Dongfeng cummins engine co., LTD	8900	276
II.Instructions	High roof cab and double bedroom, equipped with shanxi fast gearbox(12JS160TA), 5T front axle,13T Single stage deceleration driving axle,90# tow point, working table,four-channel ABS,Cruise Control optional.
IIII.Applications	tractor is an engineering vehicle specifically designed to deliver a high tractive effort (or torque) at slow speeds, for the purposes of hauling a trailer or machinery used in construction.
