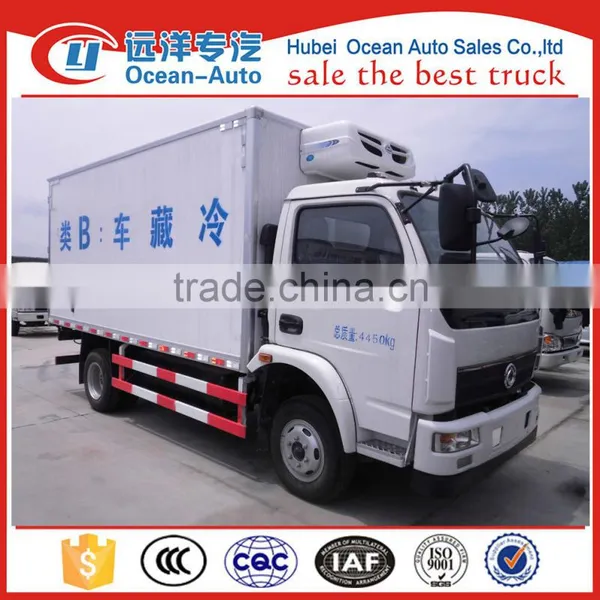

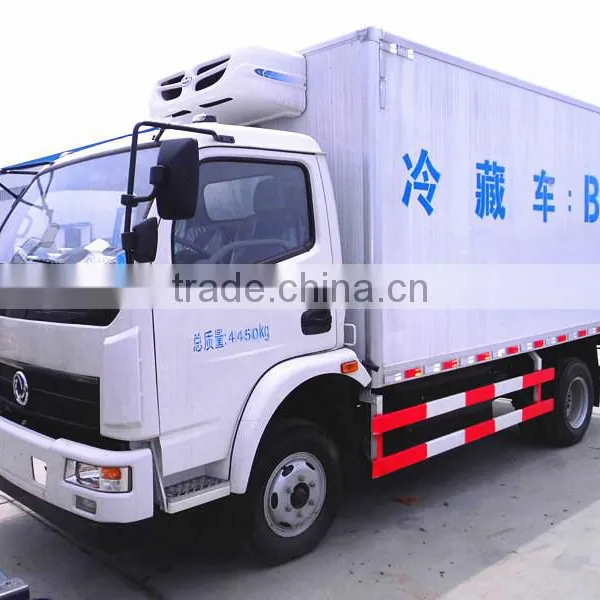

Original China Dongfeng 5000 Kgs Refrigerated Truck

Main specification

Product model and name

HLQ5060XLCE Refrigerator truck

Gross weight(Kg)

6495

Drive type

4x2

Payload(Kg)

2500

Overall                                       dimension(mm)

7100×2330×3380

Curb weight(Kg)

3800

Cab seats

3

Approach/departure angle(°)

24/14

Front/rear hang(mm)

1210/2090

Axle No.

2

Wheelbase(mm)

3800

Axle load(Kg)

2580/3915

Max speed(Km/h)

90

Chassis specification

Chassis model

EQ1060TJ22D3

Manufacturer

Dongfeng Auto Co.,Ltd

Brand name

Dongfeng

Dimension(mm)

6815×2176×2300,2400

Tyre specification

7.50R16

Tyre No.

6

Steel spring number

8/10+7,11/9+7

Front track base(mm)

1750,1835

Fuel type

Diesel

Rear track base(mm)

586,1640

Emission standard

Euro 3

Transmission

5 forward gear,1 reverse gear

Cab

Single row, luxurious interiors and seats with power steering. Air condition is optional.

Engine model

Engine manufacturer

Displacement(ml)

Power(Kw)

CY4102-E3C

Dongfeng Chaoyang Diesel Co.,Ltd

3856

91(124hp)

B140 33

Dongfeng Cummins Engine Co.,Ltd

3900

103(140hp)

Performance

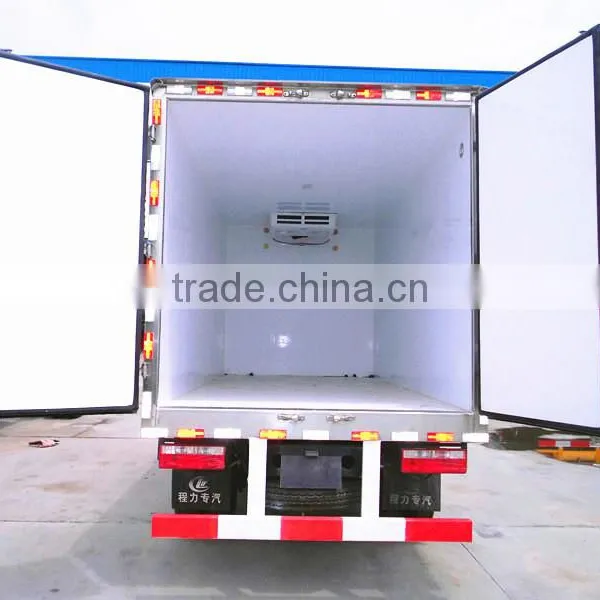

Van body size(mm)

4900×2100×2100

Load capacity(TON)

5

Lowest refrigeration temperature(℃)

-18 Centigrade

Feature and Application

The refrigerator truck is the closed van truck that is used to transport the frozen or fresh goods. This truck is made up of vehicle chassis, Polyurethane insulation van, refrigeration unit and temperature recorder. It is commonly used to transport the frozen food, dairy products, vegetable and fruit and vaccine medicine etc. For the special requirements of trucks,such as the meat transportation, the meat hook, aluminum alloy guide rail and ventilation slots etc. parts can be chosen and installed.
