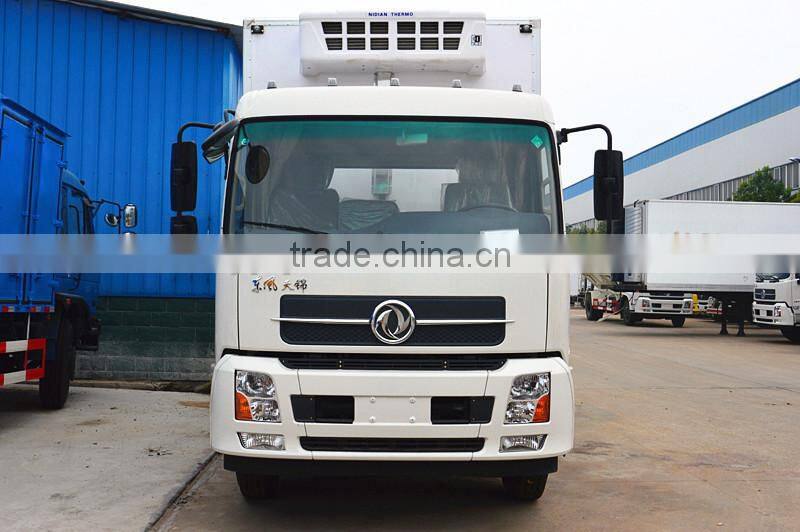

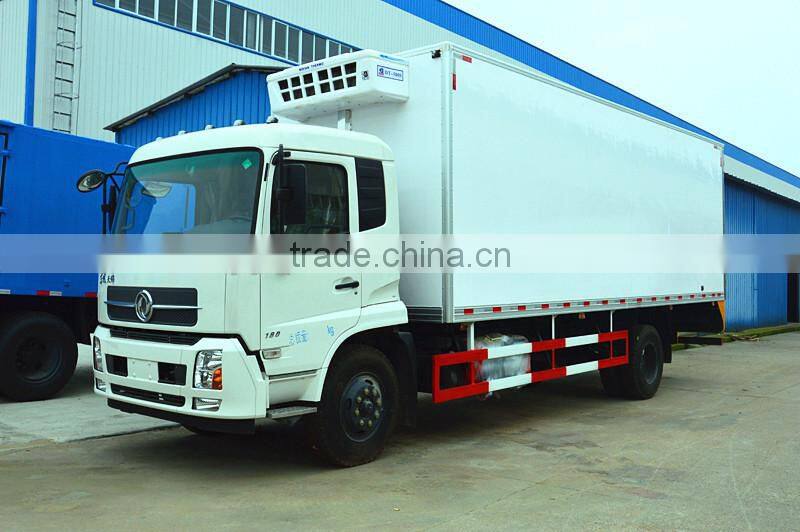

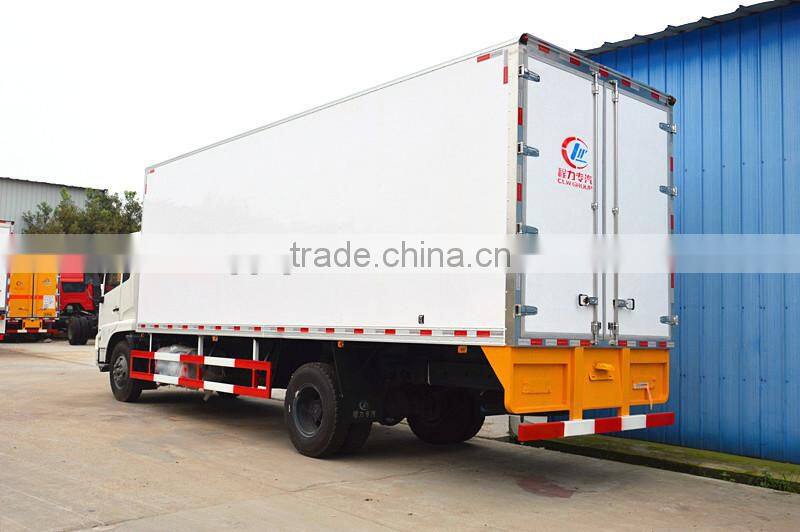

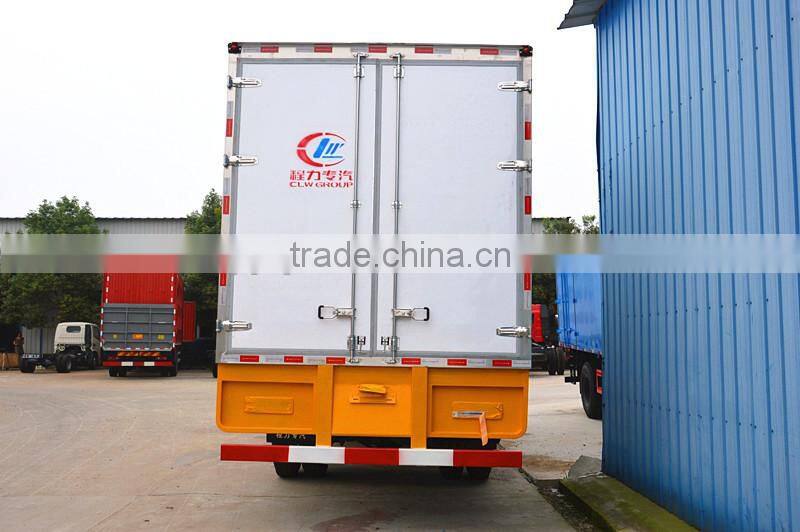

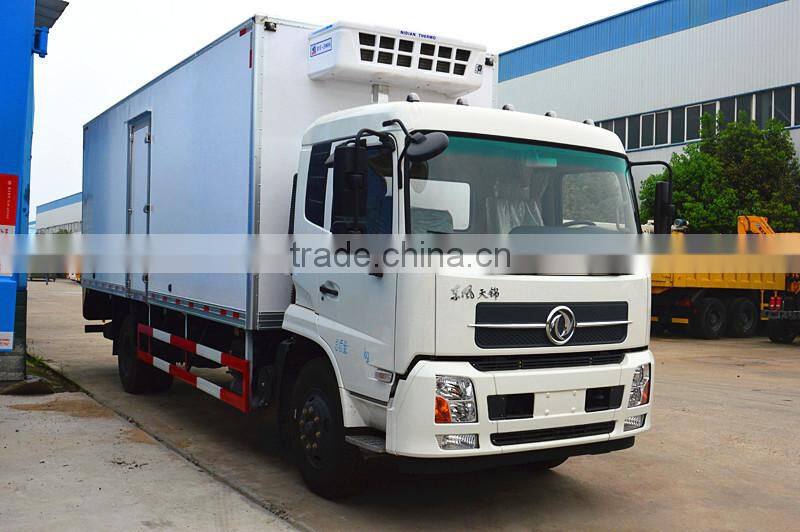

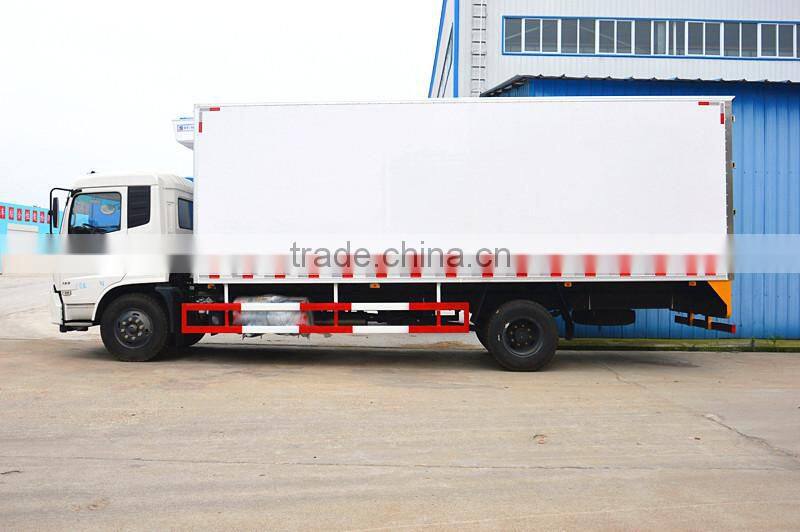

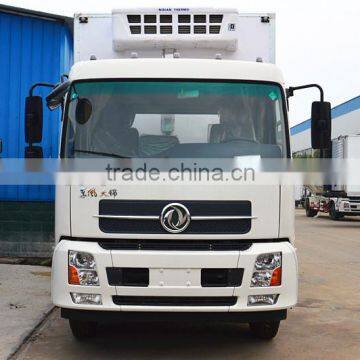

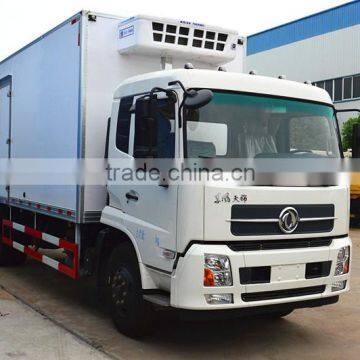

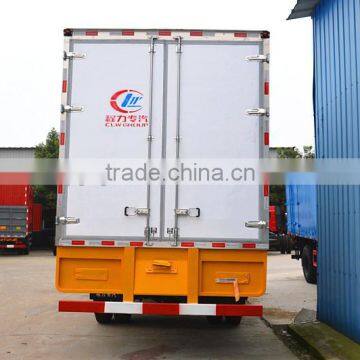

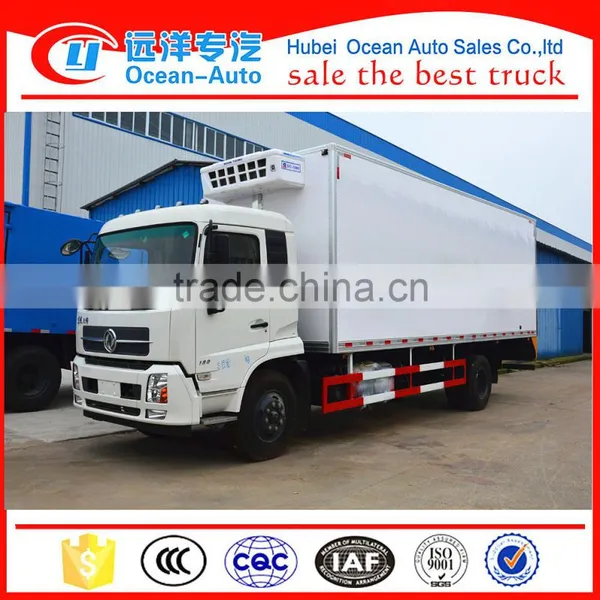

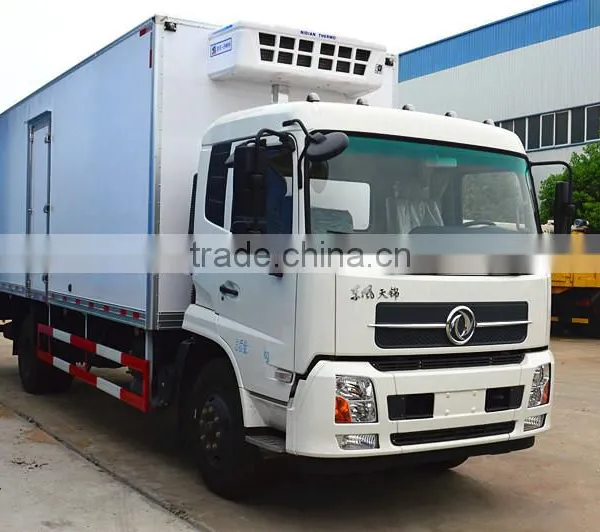

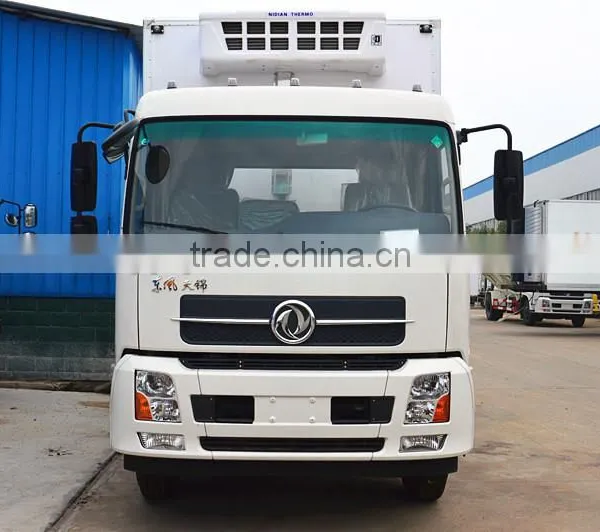

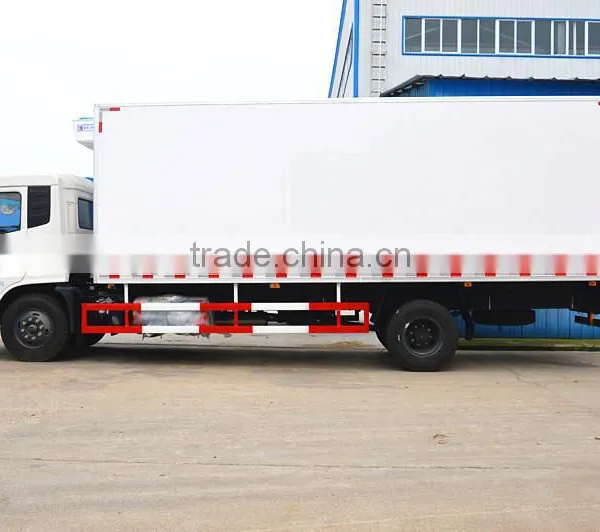

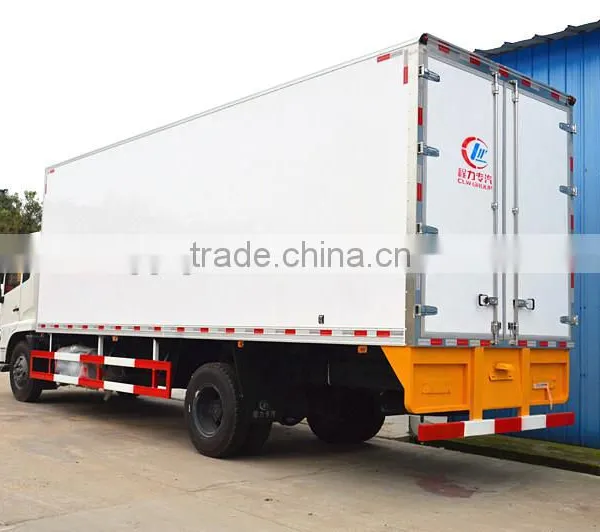

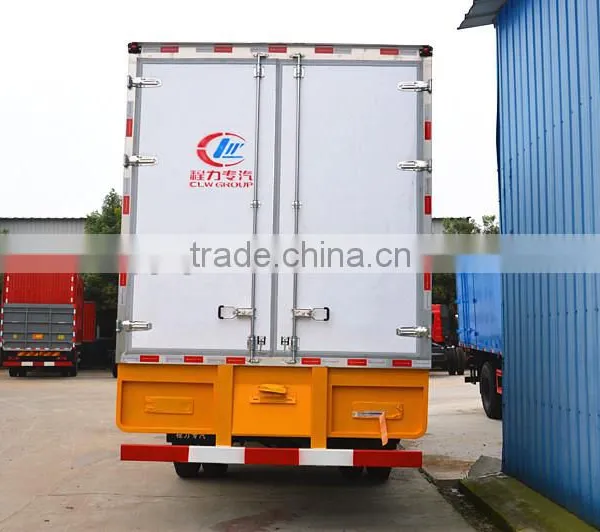

Dongfeng Kingrun 10-12 Ton Freezer Truck

Main specification

Product model and name

HLQ5120XLC Refrigerator truck

Gross weight(Kg)

12495

Drive type

4x2

Payload(Kg)

6000

Overall dimension(mm)

8700,9000x2500x3850

Curb weight(Kg)

6300

Cab seats

3

Approach/departure angle(°)

20/13

Front/rear hang(mm)

1430/2570

Axle No.

2

Wheelbase(mm)

5000

Axle load(Kg)

4300/8195

Max speed(Km/h)

90

Chassis specification

Chassis model

DFL1120B

Manufacturer

Dongfeng Auto Co.,Ltd

Brand name

Dongfeng

Dimension(mm)

8790,8290x2370x2760,3400

Tyre specification

9.00R20

Tyre No.

6

Steel spring number

7/9+6,8/10+8

Front track base(mm)

1880,1920,1940

Fuel type

Diesel

Rear track base(mm)

1800,1860

Emission standard

Euro 3

Transmission

6 forward gear,1 reverse gear

Cab

D530 flat head, one and a half row with a flat ceiling in the cab, electricwindow regulator,Remote Control Lock, PXD-B dashboard with an air condition.

Engine model

Engine manufacturer

Displacement(ml)

Power(Kw)

B170 33

Dongfeng Cummins Engine Co.,Ltd

5900

125(170hp)

Performance

Van body size(mm)

6400×2260×2300

Load capacity(TON)

10-12

Lowest refrigeration temperature(℃)

-18 Centigrade

Feature and Application

The refrigerator truck is the closed van truck that is used to transport the frozen or fresh goods. This truck is made up of vehicle chassis, Polyurethane insulation van, refrigeration unit and temperature recorder. It is commonly used to transport the frozen food, dairy products, vegetable and fruit and vaccine medicine etc. For the special requirements of trucks,such as the meat transportation, the meat hook, aluminum alloy guide rail and ventilation slots etc. parts can be chosen and installed.
