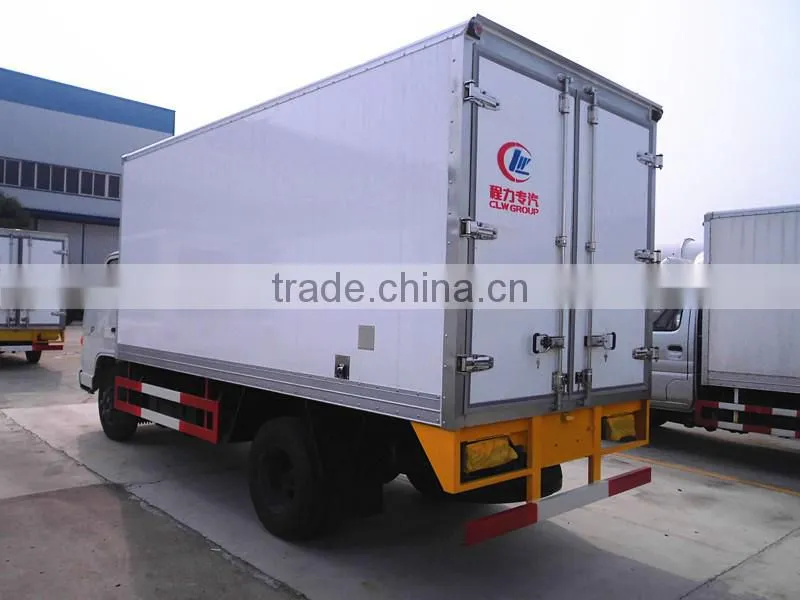

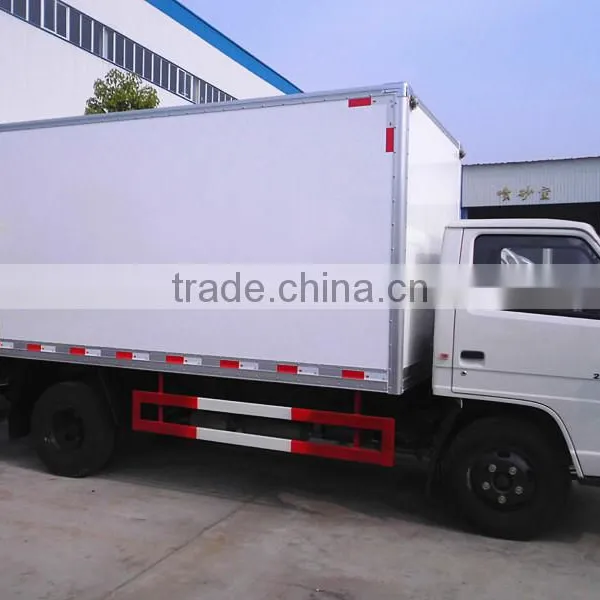

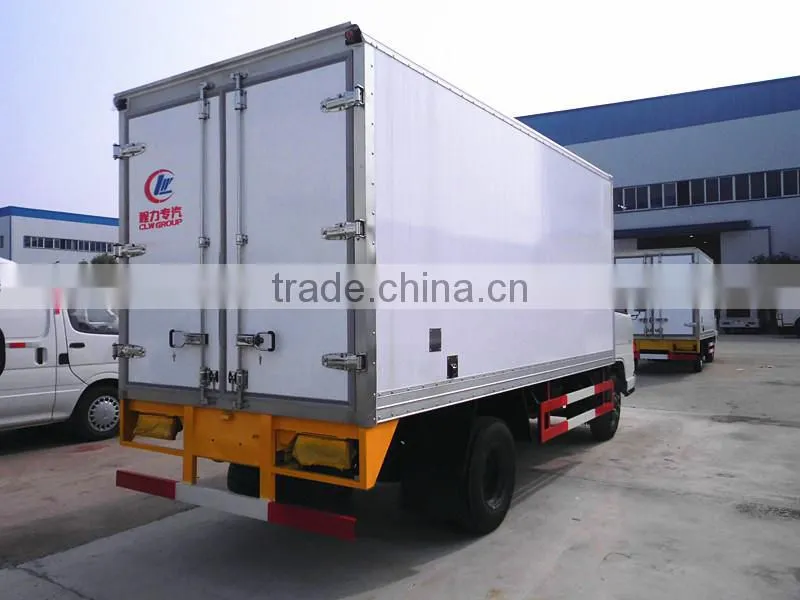

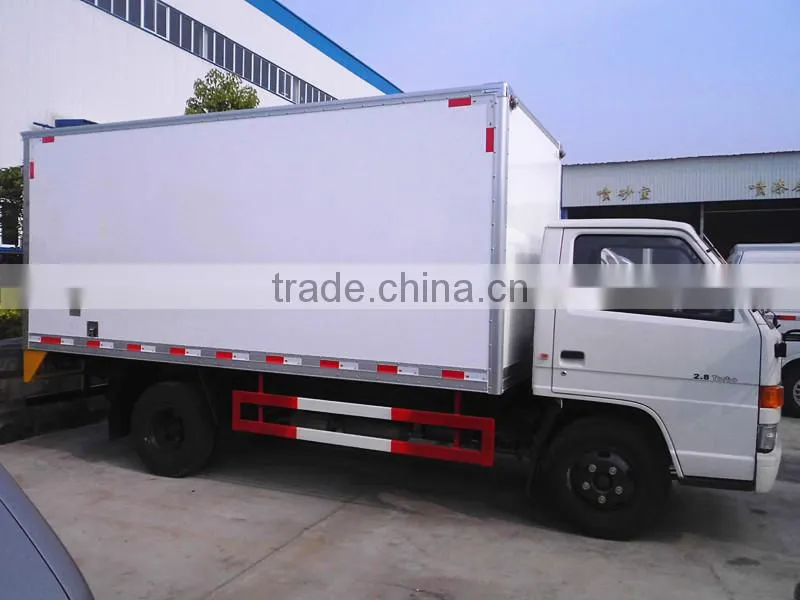

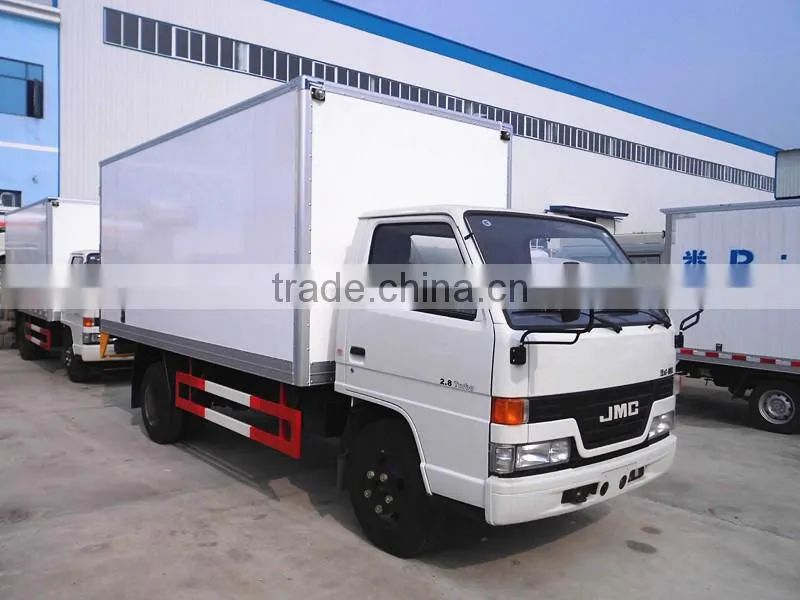

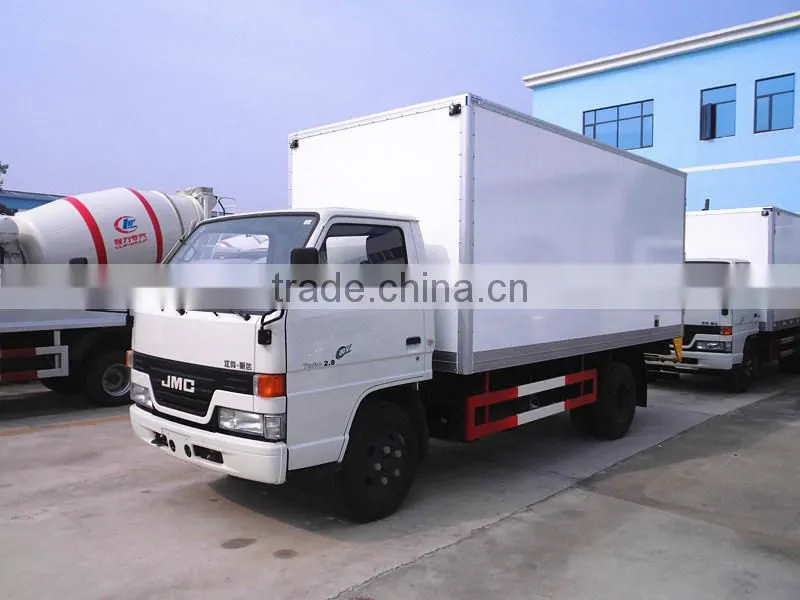

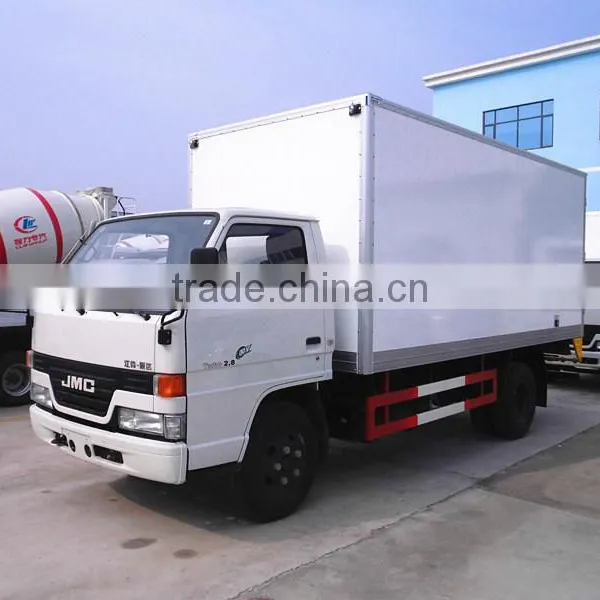

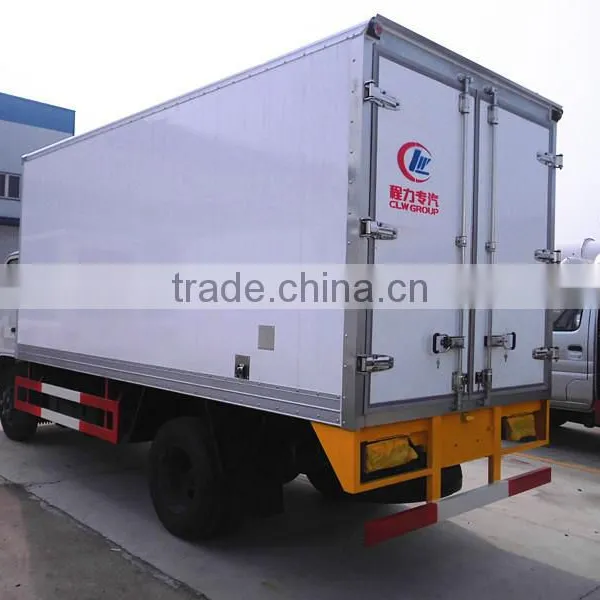

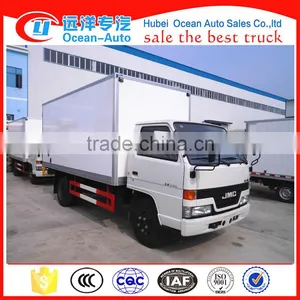

JMC 3 Ton Chill Car
Main specification | |||||||||||
Product model and name | CLQ5060XLC4JX Refrigerator truck | ||||||||||
Gross weight(Kg) | 5790 | Drive type | 4x2 | ||||||||
Payload(Kg) | 2500 | Overall dimension(mm) | 5990×1950×2880 | ||||||||
Curb weight(Kg) | 3160 | Cab seats | 2 | ||||||||
Approach/departure angle(°) | 27/16 | Front/rear hang(mm) | 1015/1615 | ||||||||
Axle No. | 2 | Wheelbase(mm) | 3360 | ||||||||
Axle load(Kg) | 2200/3590 | Max speed(Km/h) | 80 | ||||||||
Chassis specification | |||||||||||
Chassis model | JX1060TG24 | Manufacturer | Jiangling Auto Co.,Ltd | ||||||||
Brand name | JMC | Dimension(mm) | 5825×1880×2020 | ||||||||
Tyre specification | 7.00R16LT | Tyre No. | 6 | ||||||||
Steel spring number | 7/5+5 | Front track base(mm) | 1385 | ||||||||
Fuel type | Diesel | Rear track base(mm) | 1425 | ||||||||
Emission standard | Euro 4 | Transmission | 5 forward gear,1 reverse gear | ||||||||
Cab | Single row, luxurious interiors and seats with power steering. Air condition is optional. | ||||||||||
Engine model | Engine manufacturer | Displacement(ml) | Power(Kw) | ||||||||
JX493ZLQ4 | Jiangling Auto Co.,Ltd | 2771 | 80(109hp) | ||||||||
Performance | |||||||||||
Van body size(mm) | 4200×1750×1750 | Load capacity(TON) | 3 | ||||||||
Lowest refrigeration temperature(℃) | -18 Centigrade | ||||||||||
Feature and Application | |||||||||||

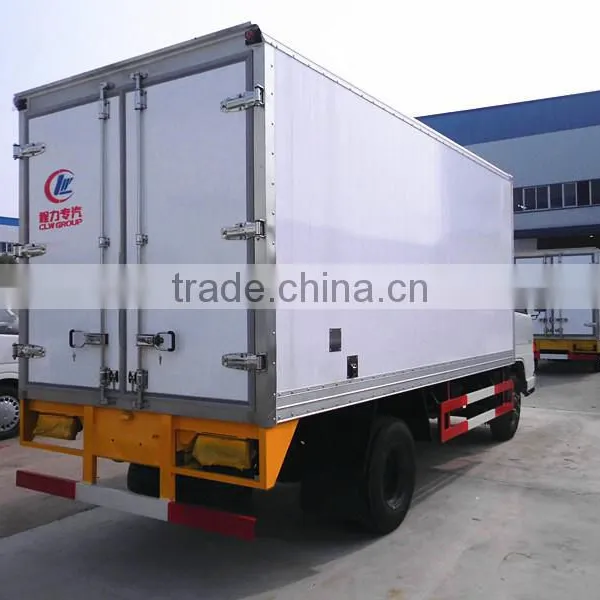

The refrigerator truck is the closed van truck that is used to transport the frozen or fresh goods. This truck is made up of vehicle chassis, Polyurethane insulation van, refrigeration unit and temperature recorder. It is commonly used to transport the frozen food, dairy products, vegetable and fruit and vaccine medicine etc. For the special requirements of trucks,such as the meat transportation, the meat hook, aluminum alloy guide rail and ventilation slots etc. parts can be chosen and installed. | |||||||||||
3. Quality:
The above goods shall be in accordance with the Manufacturer’s standards and Chinese export standards.
4.TIME OF DELIVERY:
Within 25-30 working days from the receipt date of deposit payment.
5.GUARANTEE PERIOD
The guarantee period for all equipment/accessories and spare parts shall be valid 12 months from Shipment or 25000klm..
6.Terms of Payment:
30% of the contract value should be paidin advance, remaining 70% payment shall be paid upon notification of completion and inspection certificate.
7.Packing and shipping
(1) About the package of our trucks,usually it is nude that covered with wax. And it also can be packed as your need.
(2) About the shipping,there are many ways, such as Ro-Ro Ship / Bulk transport / Container packing / SKD / etc. And it can be offered according to your request.
Customer Visite
For more information,please feel free to contact me! We will do our best to work with you to get the job done.
Tracy Tian
International Sale
Skype:chengli.truck
Mobile:+86-13886861936
TEL: +86 0722 3819709
FAX: +86 0722 3819809
Hubei Chengli Ocean Auto Sales Co., Ltd
Capital of Special Purpose Vehicles, Suizhou City, Hubei Province, China
