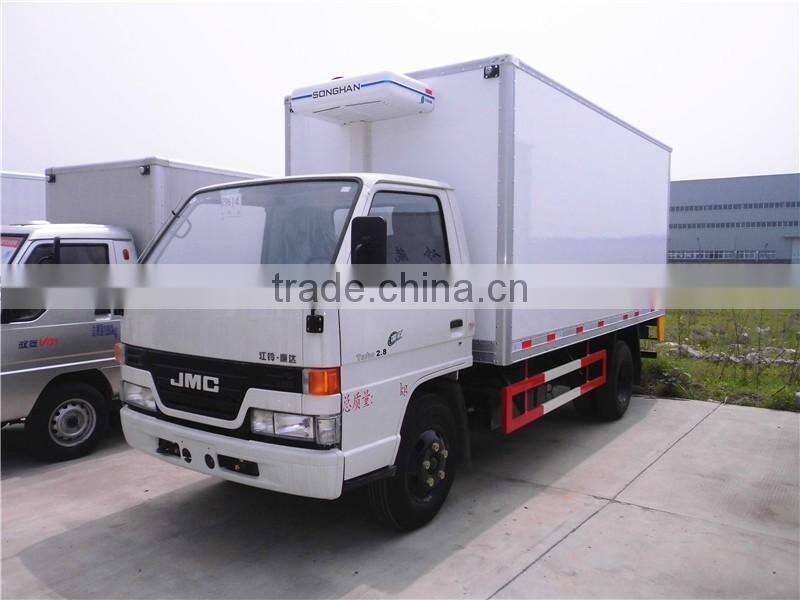

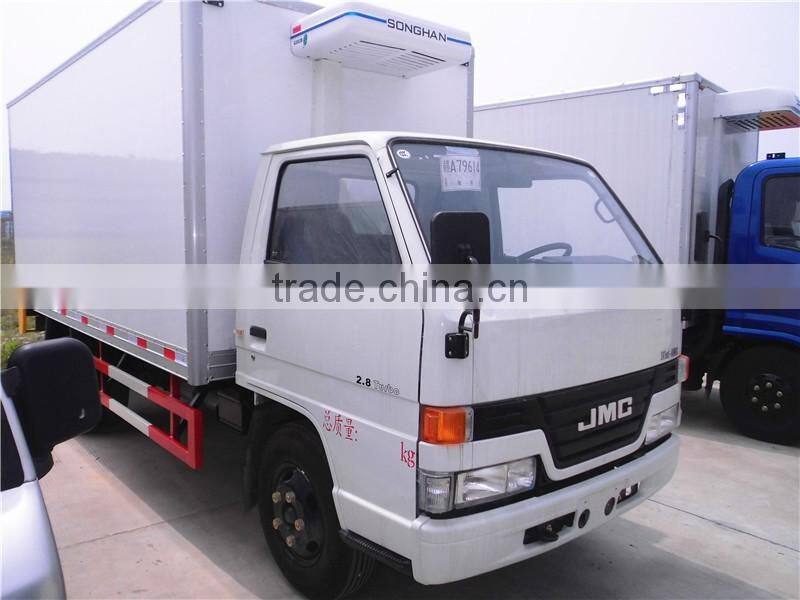

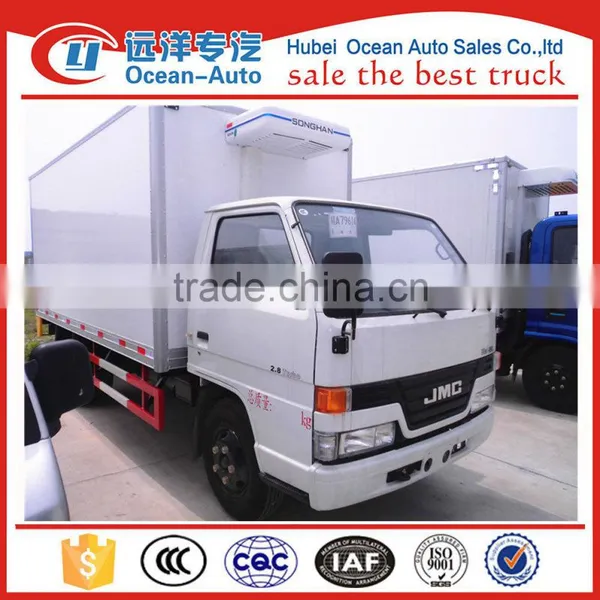

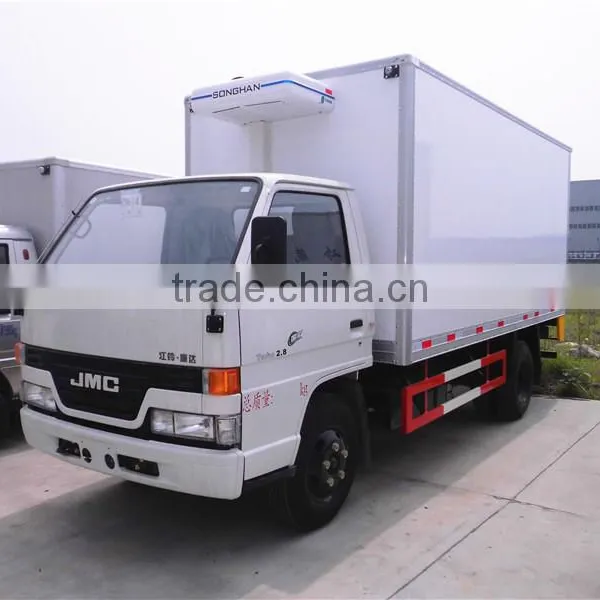

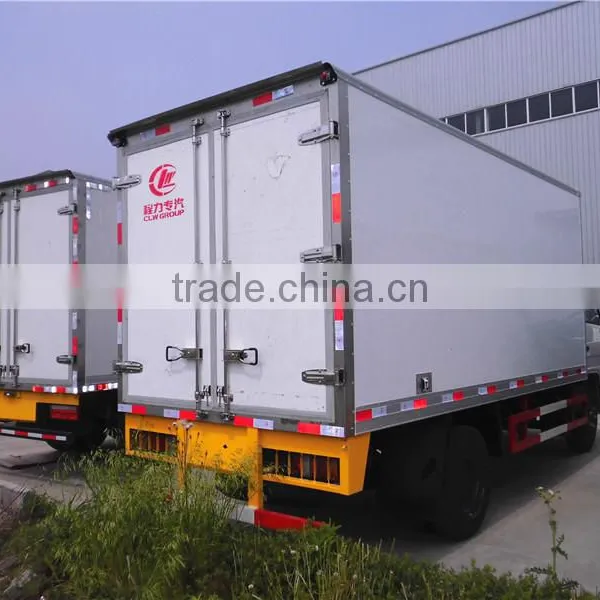

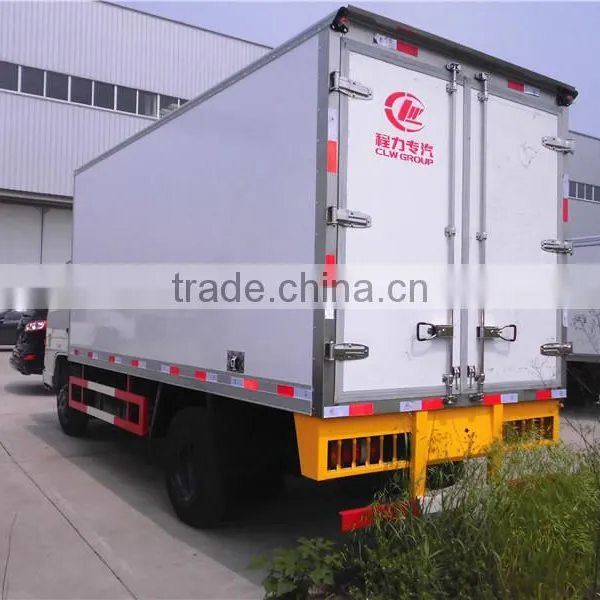

Hot sale JMC 5ton refrigerated cold room van truck
1. We are professional manufacturers for the special vehicles,locate in Suizhou City,Hubei province,which is the birthplace of special purpose vehicle .We coulld supply all kinds of brand of special
trucks, such as Dongfeng ,Faw,Jmc,Shacman,north Benz(beiben),Toton,Sinotruck,Jac,etc.
2.The drive type could be 4X2, 4X4, 6X2, 6X4, 6X6, 8X4
3.LHD (left hand drive) or RHD (right hand drive) vehicles are optional .
4.We can customize the truck according to your requirement, such as material, tanker capacity,
color, paint, logo, etc.
Below specification is just for your reference. More information of our Special Trucks, please
feel free to contact with Ms. April Zhu. we have a professional team and professional answer
for you.
Main specification | |||||||||||
Product model and name | CLQ5060XLC4JX Refrigerator truck | ||||||||||
Gross weight(Kg) | 5790 | Drive type | 4x2 | ||||||||
Payload(Kg) | 2500 | Overall dimension(mm) | 5990×1950×2880 | ||||||||
Curb weight(Kg) | 3160 | Cab seats | 2 | ||||||||
Approach/departure angle(°) | 27/16 | Front/rear hang(mm) | 1015/1615 | ||||||||
Axle No. | 2 | Wheelbase(mm) | 3360 | ||||||||
Axle load(Kg) | 2200/3590 | Max speed(Km/h) | 80 | ||||||||
Chassis specification | |||||||||||
Chassis model | JX1060TG24 | Manufacturer | Jiangling Auto Co.,Ltd | ||||||||
Brand name | JMC | Dimension(mm) | 5825×1880×2020 | ||||||||
Tyre specification | 7.00R16LT | Tyre No. | 6 | ||||||||
Steel spring number | 7/5+5 | Front track base(mm) | 1385 | ||||||||
Fuel type | Diesel | Rear track base(mm) | 1425 | ||||||||
Emission standard | Euro 4 | Transmission | 5 forward gear,1 reverse gear | ||||||||
Cab | Single row, luxurious interiors and seats with power steering. Air condition is optional. | ||||||||||
Engine model | Engine manufacturer | Displacement(ml) | Power(Kw) | ||||||||
JX493ZLQ4 | Jiangling Auto Co.,Ltd | 2771 | 80(109hp) | ||||||||
Performance | |||||||||||
Van body size(mm) | 4200×1750×1750 | Load capacity(TON) | 3-5 | ||||||||
Lowest refrigeration temperature(℃) | -18 Centigrade | ||||||||||
Feature and Application | |||||||||||
The refrigerator truck is the closed van truck that is used to transport the frozen or fresh goods. This truck is made up of vehicle chassis, Polyurethane insulation van, refrigeration unit and temperature recorder. It is commonly used to transport the frozen food, dairy products, vegetable and fruit and vaccine medicine etc. For the special requirements of trucks,such as the meat transportation, the meat hook, aluminum alloy guide rail and ventilation slots etc. parts can be chosen and installed. | |||||||||||
