China supplier !!FOTON small 4x2 led mobile advertising trucks for sale
Main specification | ||||||||
Product model,name |
BJ5043XXC-B1 Mobile LED Truck |
|||||||
Total weight(Kg) |
4495 |
Drive type |
4 x 2 |
|||||
Curb weight(Kg) |
4365 |
Overall dimension (mm) |
5995×2025×2990 |
|||||
Wheelbase(mm) |
3360 |
Cab seats (man) |
2 |
|||||
Approach / departure angle(°) |
23/19 |
Front/rear hang(mm) |
1085/1550 |
|||||
Axle load |
1710/2785 |
Max speed(Km/h) |
95 |
|||||
Chassis specification | ||||||||
Chassis model |
BJ1043V9JEA-A |
Manufacturer |
Beiqi Futian Motor Company Limited |
|||||
Brand name |
FOTON |
Number of axes |
2 |
|||||
Tire specification |
6.50-16 |
Tires No. |
6 |
|||||
Leaf spring |
4/6+7 |
Front track(mm) |
1415, 1525, 1545,1550 |
|||||
Type of fuel |
Diesel |
Rear track(mm) |
1485, 1525 |
|||||
Emission standard |
Euro IV |
Transmission |
5 Forward Gear |
|||||
Driving cab |
|
|||||||
Engine model |
Engine Manufacturer |
Displacement(ml) |
Power(KW) |
|||||
4B2-95C40 |
ANHUI QUANCHAI ENGINE CO.,LTD |
2545 |
70 |
|||||
Mobile LED truck specification | ||||||||
|
LED screen size (length x high)(mm) |
3840 x 1760 |
Led side screen area(M2) |
6.8 |
|||||
Screen Lift Height(m) |
1.5 |
LEDscreen’s pixel pitch(mm) |
10 |
|||||
RollerScreen Size(M2) |
6.8 |
Rear monochrome screen size(M2) |
1.84 |
|||||
Remark |
There be equipped the Silent generator, wooden floors, lighting, ventilation fans, skylights, computers, stereos, amplifiers and other facilities within the body , and 220V external power connector outside the body. According to customers' requirements, it can be equipped the LED screen lifting system and hydraulic extenstion stage, which will be a multi-purpose truck. |
|||||||
[The Main Features of LED truck] | ||||||||
| ||||||||

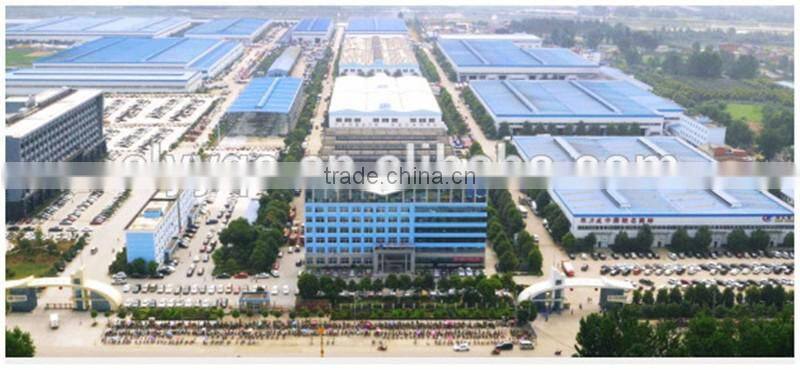

Our factory:

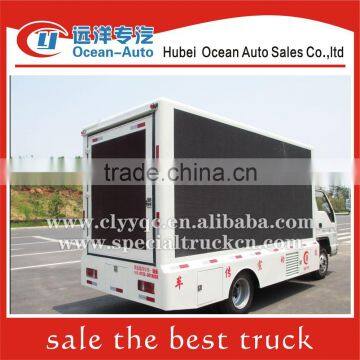

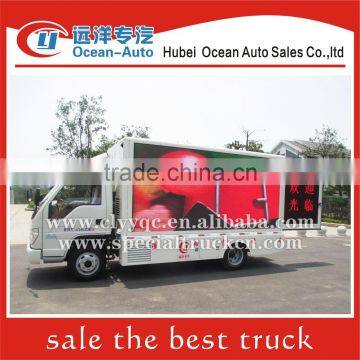

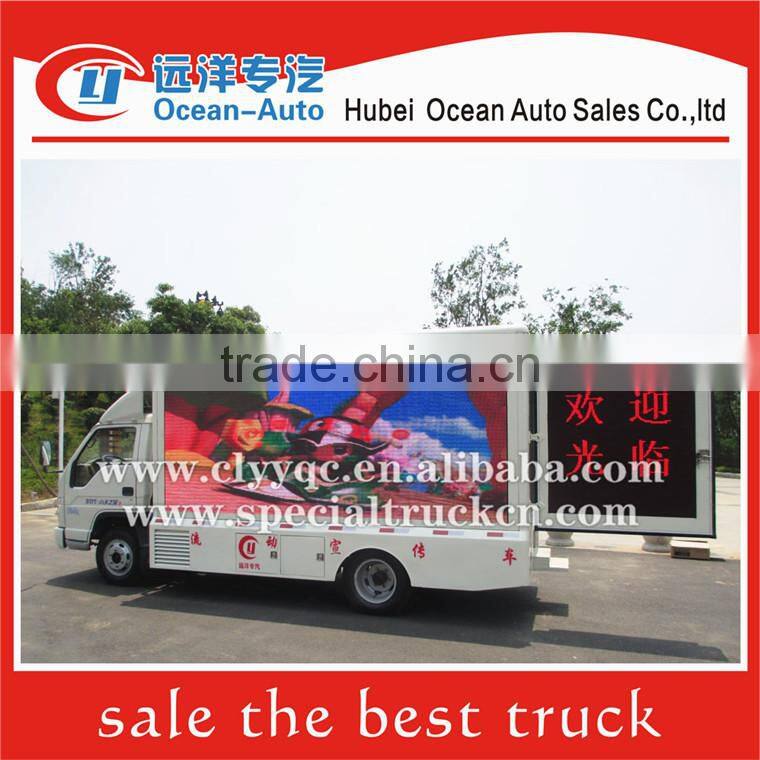

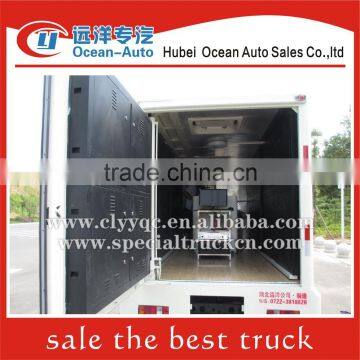

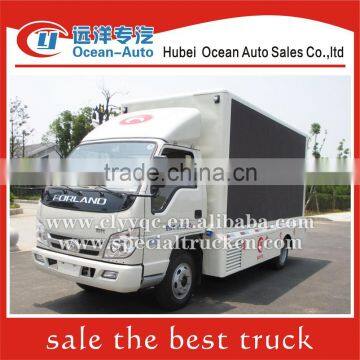

Picture as below:
Other's Brand for you ref
|
1, Adopt the best original material and machine
2, Production flow chart
3, the equipment or component name in some parts
|
| Packaging &Shipping | |||||||||||
| 1.About the package of our trucks,usually it is nude that covered with wax.And it also can be packed as your need. | |||||||||||
| 2.About the shipping,there are many ways,such as Ro-Ro Ship / Bulk transport / Container packing / SKD / etc. And it can be offered according to your request. |
| Our services | ||||||||
| A.Delivery time | ||||||||
| Usually within 10 to 25 days after getting your deposit. And the accurate time depends on your QTY. | ||||||||
| B.Terms of payment | ||||||||
| 30% of contract amount must be paid by T/T before the production. After the completed trucks are checked and confirmed well by our clients, the balance shall be paid before the shipment. | ||||||||
| C.Truck warranty to solve our clients’ worries when purchasing | ||||||||
| The warranty period is one year or 25000KM that drove under normal operation and control since our clients get the trucks. And we can supply maintenance for the whole life. |
Contact person :
Tiffany Sheng (overseas sales)
Hubei Chengli Ocean Auto Sales Co.,Ltd
ADD: Capital of Special Purpose Vehicle, Suizhou City, Hubei Province,China.
Web: /www.clyyqc.en.china.cn
Tel: +86-13886865927 / +86-722-3819709
Fax: +86-722-3819809
Skype:Tiffany shen
Wechat ID:(0086)13886865927
QQ ID:3305501273
