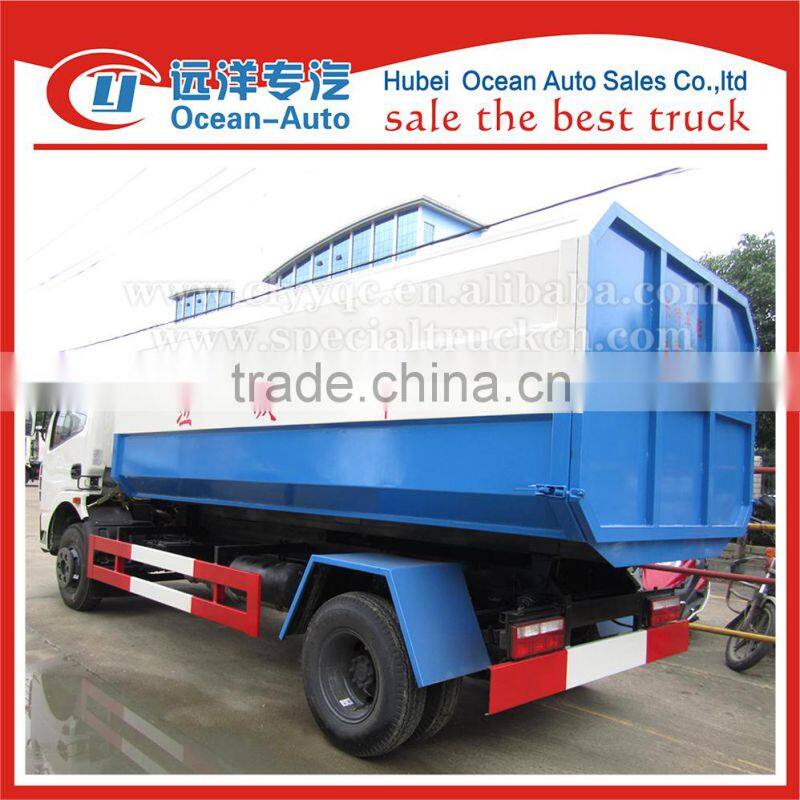

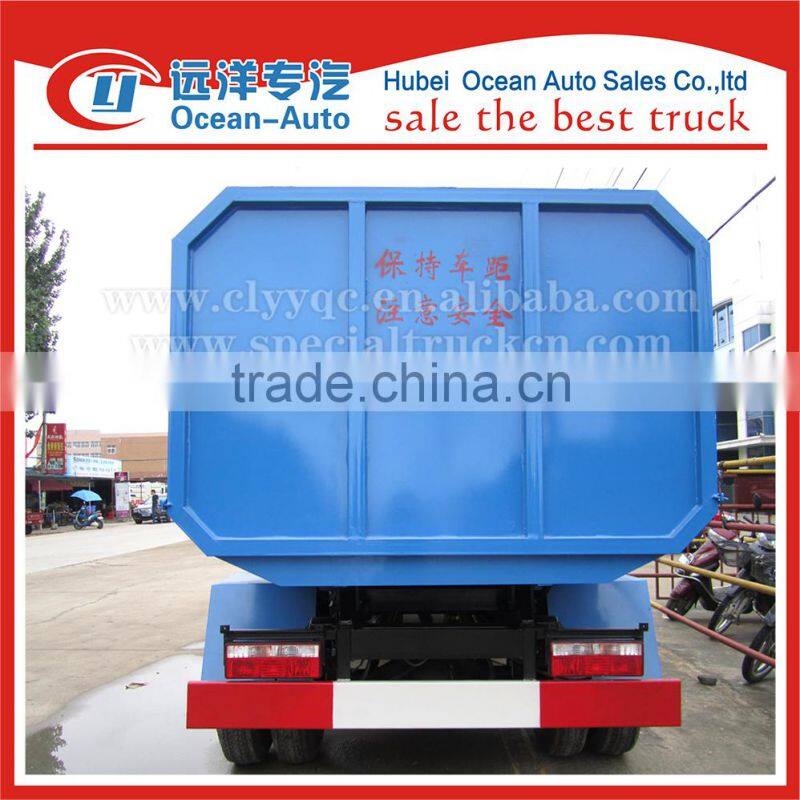

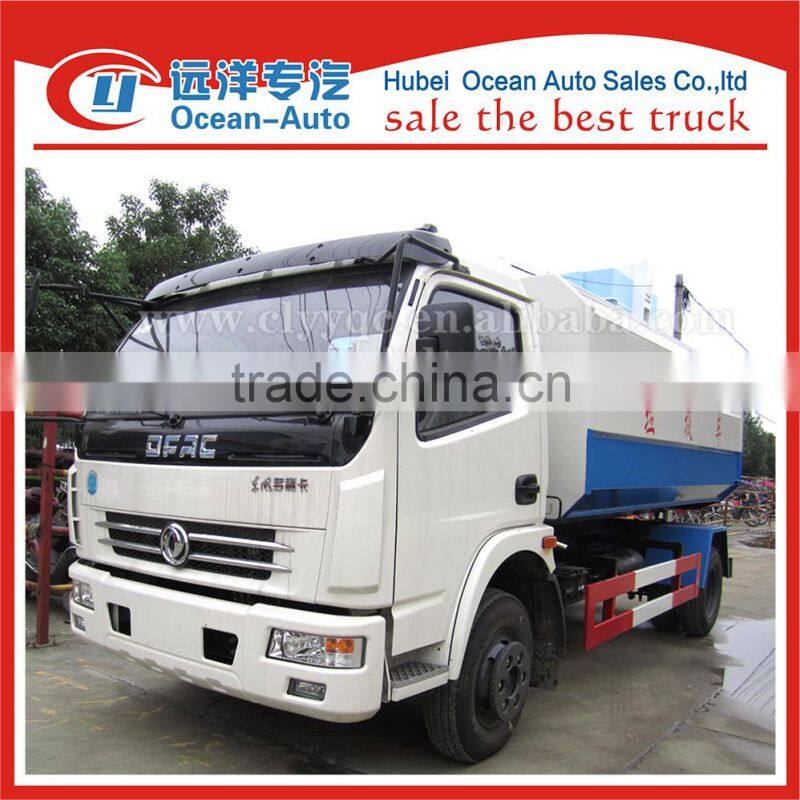

DFAC 2015 new condition self-loading and unloading garbage truck

Main specifications

Product model,name

CSC5070ZZZ4 hydraulic lifter garbage truck

Gross weight(Kg)

7300

Driving type

4x2

Payload (Kg)

3300

Overall dimension (mm)

5850x2000x2300

Curb weight(Kg)

3870

Cab seats (man)

2/3

Approach/departure angle (°)

19/15

Front/rear hang(mm)

1032/1518

Axle No.

2

Wheelbase (mm)

3300

Axle load(Kg)

2920/4380

Max speed(Km/h)

80

Chassis specifications

Chassis model

DFA1070SJ35D6

Manufacture

Dongfeng  Automobile Co.,Ltd.

Brand name

DongFeng

Overall dimension (mm)

5

Tire specification

7.00R16

Tires No.

6

Steel spring number

8/9+5

Front track(mm)

1506

Fuel type

diesel

Rear track(mm)

1466

Emission standard

Euro 4

Gear box

5forward gear,1 reverse gear

Cab

Flat single cab, luxurious interiors and seats, air conditioning is optional

Engine  model

Engine manufacture

Displacement(ml)

Power(Kw)

D28D10-4DA

Dongfeng light Engine

Co.,Ltd.

2771

75

Performance

Body capacity(m3)

5

Main Characteristic

Hydraulic lifter garbage truck can be mechanized automatic loading  and unloading garbage,  it consists ofsealed garbage box, hydraulic system and operating system, can work with dozens of dust bins which achieve one truck with multiple bins joint operation. The hydraulic lifting device can hang the dust bins up

and down , one working cycle time is 50s. The sealed box is environmentally friendly and hygienic, can  avoid secondary pollution.
