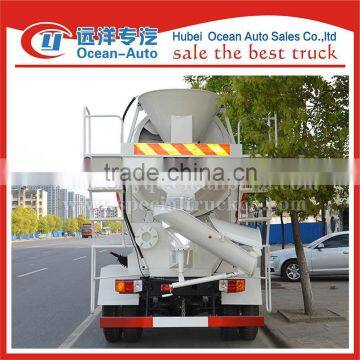

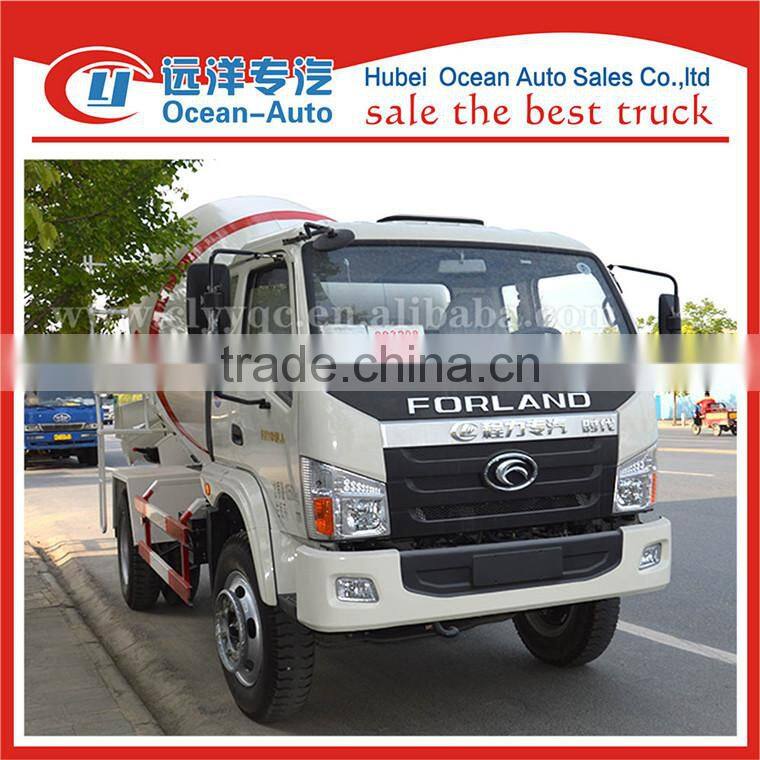

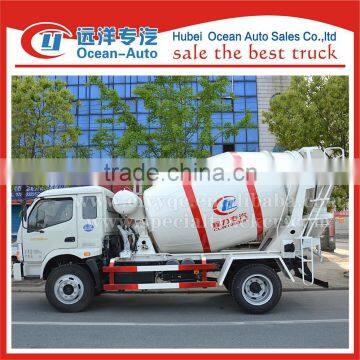

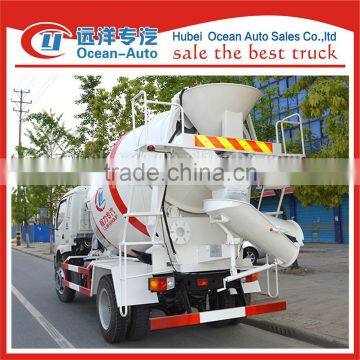

FOTON 4x2 Mini Mixer Truck, 5 m3 Concrete Mixer Truck for Sale

Name: FOTON 4x2 Mini Mixer Truck, 5 m3 Concrete Mixer Truck for Sale
Brand: FuTian
SKU: 140782072
Availability: InStock

Hubei Ocean Special Automobile Co., Ltd.

US$ 23,500 - 31,000 MOQ: 1 Set

Key Specifications

Condition:

New

Place of Origin:

Hubei, China

Brand Name:

FuTian

Payment & Shipping

Payment Methods:

Port of Shipment:

any ports available

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Hubei, China

Brand Name FuTian

Model Number BJ5143GJB-1

Motor Power 96Kw

Mixing Power ref as below detail

Charging Capacity ref as below detail

Reclaiming capacity ref as below detail

Speed of Mixing Drum ref as below detail

Water Supply Mode ref as below detail

Working Cycle Period ref as below detail

Discharge Way ref as below detail

Outline Dimension 6460*2255*3300

After-sales Service Provided Overseas third-party support available

FOTON 4x2 mini mixer truck, 5 m3 concrete mixer truck for sale

Product Description

1.running stable

2.quality reliable
3.inner environmental comfortable
4.energy efficient
5.famous brand chassis

Main specifications
Product model,name	BJ5143GJB-1 CONCRETE MIXER TRUCK
Total weight(Kg)	13570		Tank capacity (m3)			5m³
Payload (Kg)	7460,6640		Overall dimension (mm)			6460×2255×3300
Curb weight(Kg)	5980
cab seats (man)	2
Approach/departure angle (°)	24/20		Front/rear hang(mm)			1230/1830
Number of axles	2		Wheelbase(mm)			3400
Axle load(Kg)	4610/8960		Max speed(Km/h)			83
Chassis specifications
Chassis model		BJ1143VJPFA-1		Chassis category		the truck classis (class 2)
Brand name		FOTON		Manufacture		Foton motor co.,ltd
Overall dimension(mm)		6070×2180×2510		Tires No.		6
Approach/departure angle (°)		24/22		Tire specification		8.25-20
Steel spring number		10/12+9		Front track(mm)		1774
Type of fuel		Diesel		Rear track(mm)		1669
Emission standard		GB17691-2005 Euro Ⅲ,GB3847-2005
Chassis model		Engine manufacture			Displacement(ml)		Power(Kw)
YC4D130-33		Guangxi yuchai machinery co.,ltd			4214		96
Special functions
We company specializes in development, design, manufacture of concrete mixer truck, using advanced optimization design of tank, logarithmic spiral die forming three-dimensional mixing blades, discharging quickly and no residual. Adopt international famous brand reducer, hydraulic pump, motor, reliable performance,high working efficiency, and ensure the overall quality and service life. The truck is widely used in building construction enterprises.
