Hino 6x4 cheap concrete mixer truck capacity 12cbm mixer truck
factory direct sale,best price
1. Certificate ISO9001
2. 3axle,10wheels
3.loading capacity 12m3
4.new design heavy duty, less oil consumption
FEATURE&FUNCTION :
Italian importe speed reducer, hydraulic pump and hydraulic motor; Taiwanese radiator |
Equiped with control system in cabin, so could be operated inside or outside of the cabin |
Water supplying system could supply water and wash the inner body. |
material let-in:3m3/minute, let-out:2m3/minute; rate of rest<1%; speed of leaf: 20 round/minute |
1. The tank body uses double helical blades that makes its density moderate, with symmetrical mixing board on the front taper place; double blades and guiding blades of discharge are installed on the outlet of tank, which makes the discharge faster in speed.
2. The tank body adopts submerged arc welding technology which makes it more solid in strength and more beautiful in appearance. The linked parts of the tank body use bounded construction which can extend its service life. The seal head adopts German cold spinning technology that makes it sleek and fine in appearance. And
six reinforcement plates are installed inside the seal head and can increase its wear resistance.
3. Low angle for mixing drum can extend the service life of hydraulic pump. The sub frame uses high intensity square tube with damping in the central area that can play role when vehicle is at full load and under the bad conditions of road, which can lower the center of gravity of truck and make it move more smoothly.
| Item |
| |||||
| Product Name | CLW5250GJBZ3 Concrete Mixer Truck | |||||
| Brand | CHENGLIWEI | |||||
| Chassis Model | ZZ1257N4048W | |||||
| Engine Type | WD615.95 | Power of Engine(kw) | 247 | |||
| Exhaust of Engine (ml) | 9726 | Engine Manufacturer | CNHTC | |||
| Fuel Type | diesel | Emission Standard | EURO 3 | |||
| Overall Dimension(mm) | 9760×2500×3990 | Body internal dimensions (mm) | / | |||
| Overall Weight(kg) | Appro×25000 | Mass in Working Order (kg) | Appro×14370 | |||
| Rating Quality(kg) | Appro×10500 | Fact Loading (m3) | 10 | |||
| Approach/departure angle | 16/15 | Max Speed (km/h) | 85 | |||
| Wheel Base (mm) | 4025+1350 | Number of axles | 3 | |||
| Pieces of Spring | 9/12 | Traction system | 6×4 | |||
| Tire specification | 11.00-20 | F/R track base(mm) | F:2022 R:1830 | |||

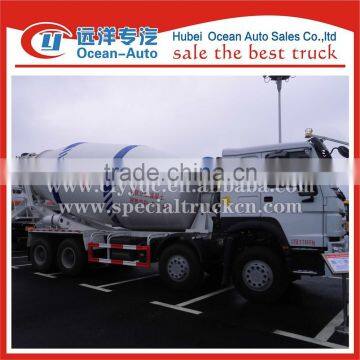

product image:
concrete mixer truck
concrete mixer truck
