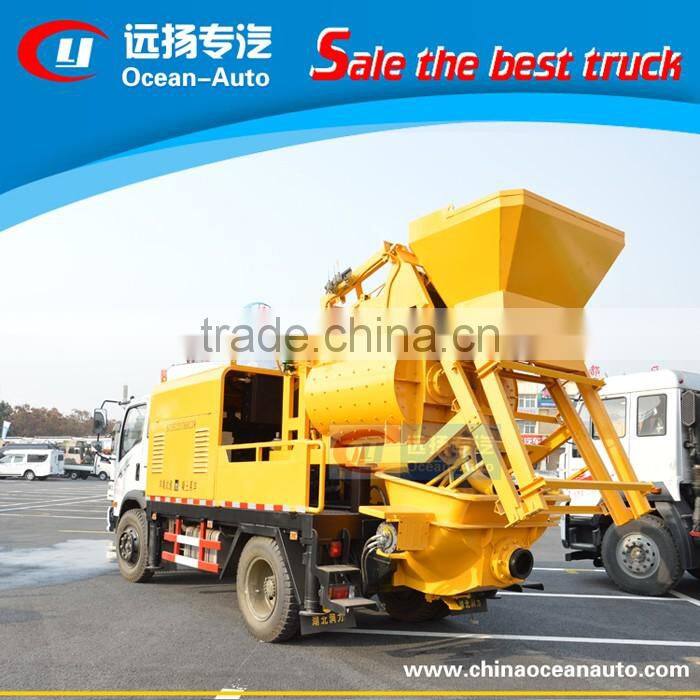

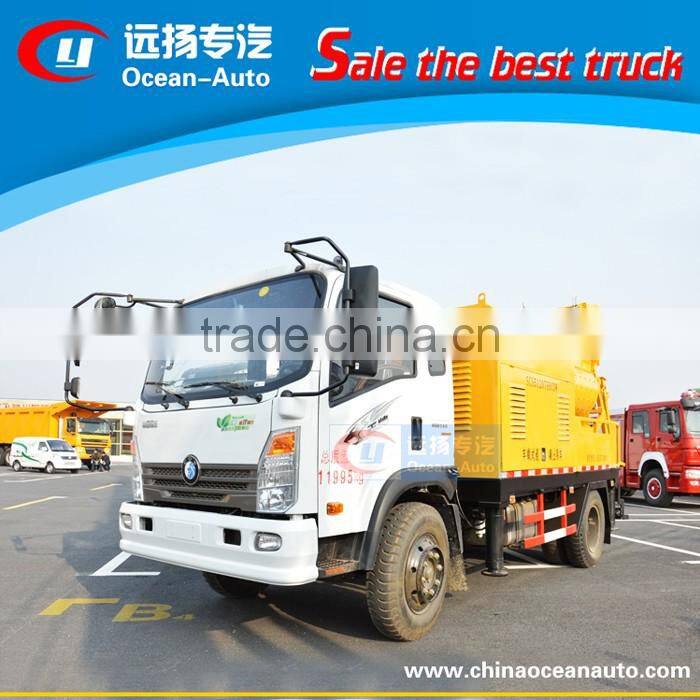

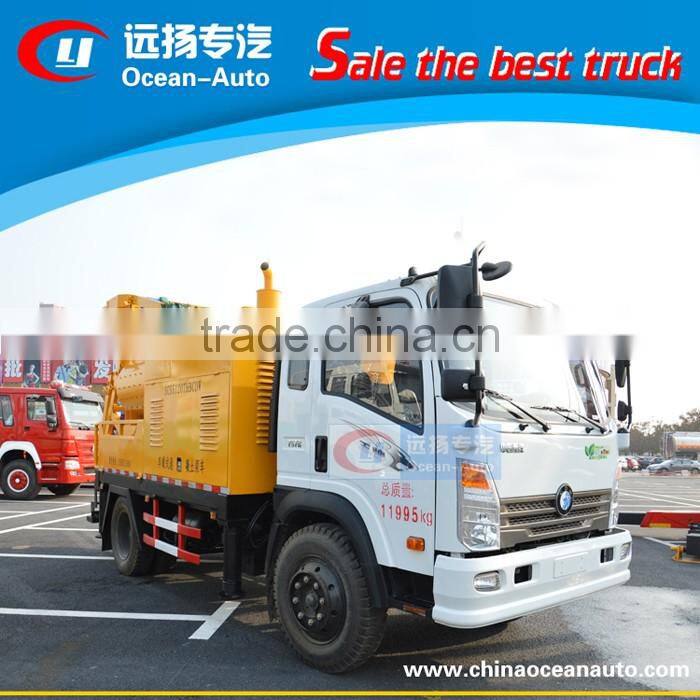

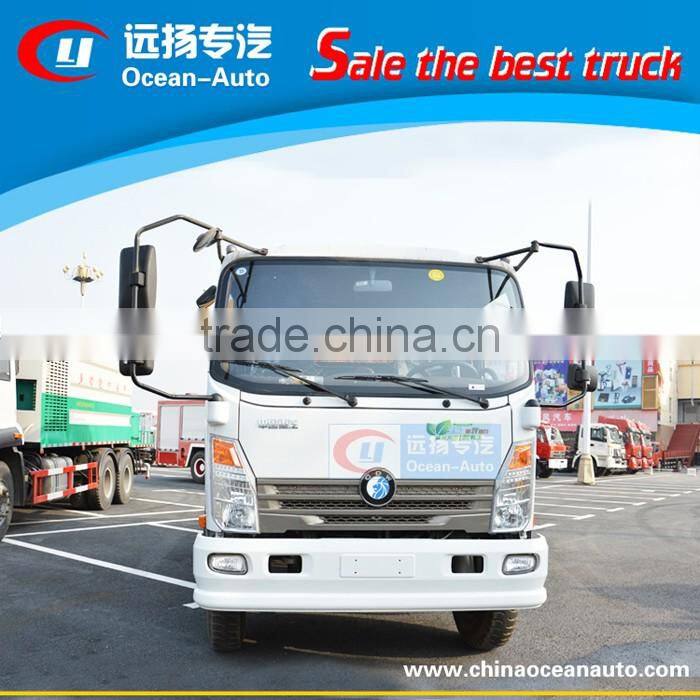

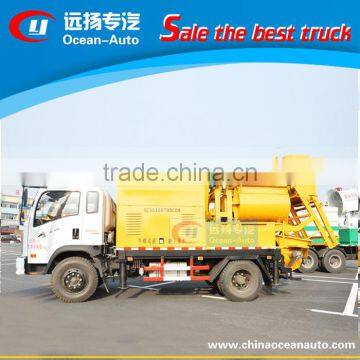

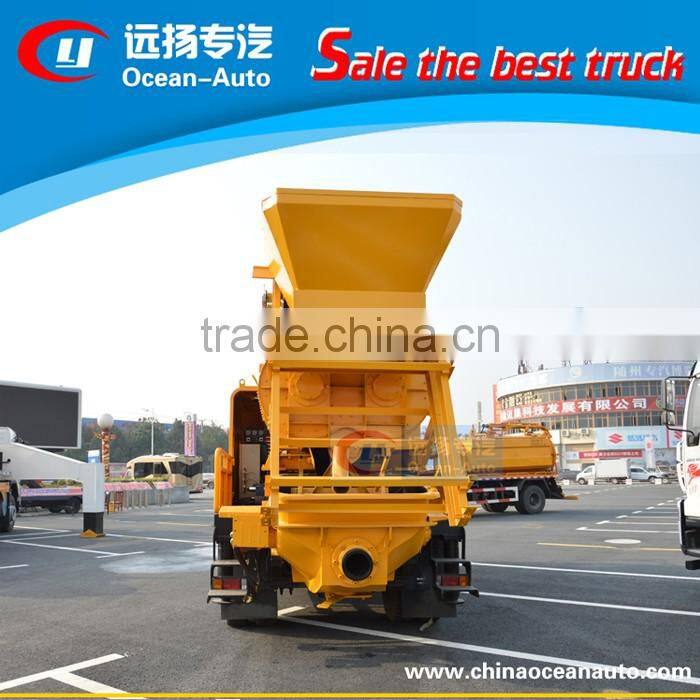

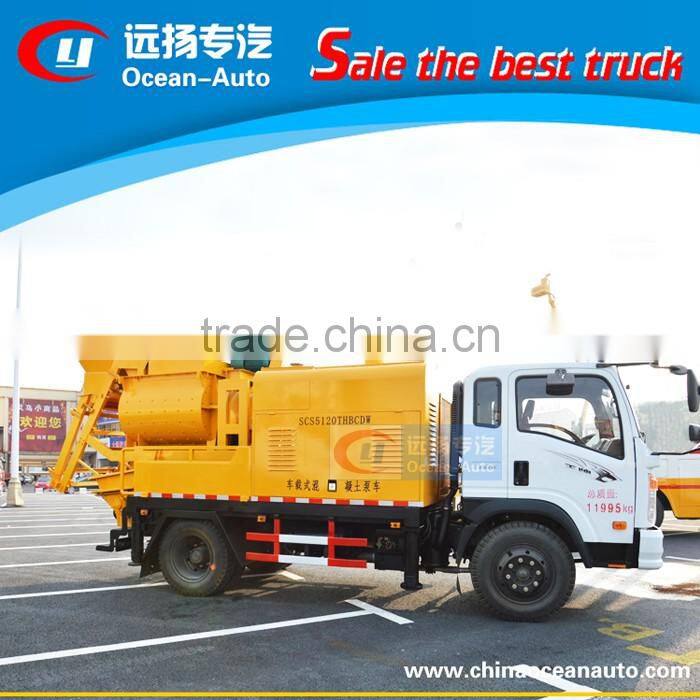

CDW Concrete Pump Truck / Truck-mounted Line Pump for Sale
Vehicle Name |
Truck -Mounted Concrete Pump |
|
Brand |
Sinotruck |
|
Engine Power |
Engine Model |
YN33CRD1 |
Engine Brand |
Kunmin Yunnei Engine Co., Ltd |
|
Fuel Type |
Diesel |
|
Displacement / Power |
3298ml / 85kw, 115HP |
|
Engine Type |
Turbocharged inner cooled, 4 cylinder inline, electric controled in common rail. |
|
Rated Speed |
3200rpm |
|
Max Torque |
315N.m |
|
Max torque(N.m/rpm) |
1600-2400rpm |
|
Emission Stand |
Euro II, III or IV can be choosed |
|
Fuel tank capacity (L) |
200 |
|
Number of speeds, |
5 Forward, 1 Reverse |
|
Chassis |
Chassis Type |
CDW1120HA1Q4 |
Drive Type |
4X2 |
|
No. of Axles |
2 |
|
Cab seats |
3 |
|
Max Speed(km/h) |
80 |
|
Tire |
8.25-20,8.25R20 |
|
Tire No.'s |
6+ 1 spare |
|
Chassis load |
4000/7995 |
|
Front/Rear suspension |
1285/1080 |
|
Appr/Dep Angle |
25/23 |
|
Ground clearance (rear/mm) |
>=220 |
|
|
Weight & Dimension |
Gross Vehicle Weight(kg) |
11995 |
Curb Weight(kg) |
11800 |
|
Rated Weight / load(kg) |
195 |
|
Wheelbase(mm) |
3650 |
|
Track width F/R (mm) |
1750/1650 |
|
Overall Dimension(mm) |
7670 x2350×3590 |
|
(length ×width×height ) | ||
Upper Structure |
Pumping engine manufacturer |
Weichai DEUTZ |
Pumping engine model |
WP4D66E201 |
|
Type of hydraulic oil circuit |
3 pump 3 circuit |
|
Type of distribution valve |
S pipe valve |
|
Max pressure of system |
32Mpa |
|
Max aggregate grain diameter |
grait <=40mm ; gravel <=35mm |
|
Forced agitating model |
JS500 |
|
Hydraulic oil tank capacity |
300ml |
|
Conveyor cylinder diameter |
200mm |
|
|
Lubricating method of pump machine |
Concentrating automatic lubrication |
|
Discharging hole diameter |
180mm |
|
Agitator total power |
24kw |
|
Max agitating capacity in theory |
>=18-25m3/h |
|
|
Max horizontal delivery distance in theory |
200 m |
|
|
Max vertical delivery distance in theory |
80 m |
|
Max delivery capacity in theory |
50m3/h |
|
|
Max discharging pressure in theory |
13 Mpa |
|
Production equipment introduction
3.Quality
The above goods shall be in accordance with the Manufacturer’s standards and Chinese export standards
4.TIME OF DELIVERY
Within 15-20 working days from the receipt date of deposit payment.
5.GUARANTEE PERIOD
The guarantee period for all equipment/accessories and spare parts shall be valid 12 months from Shipment date or 25000klm.
