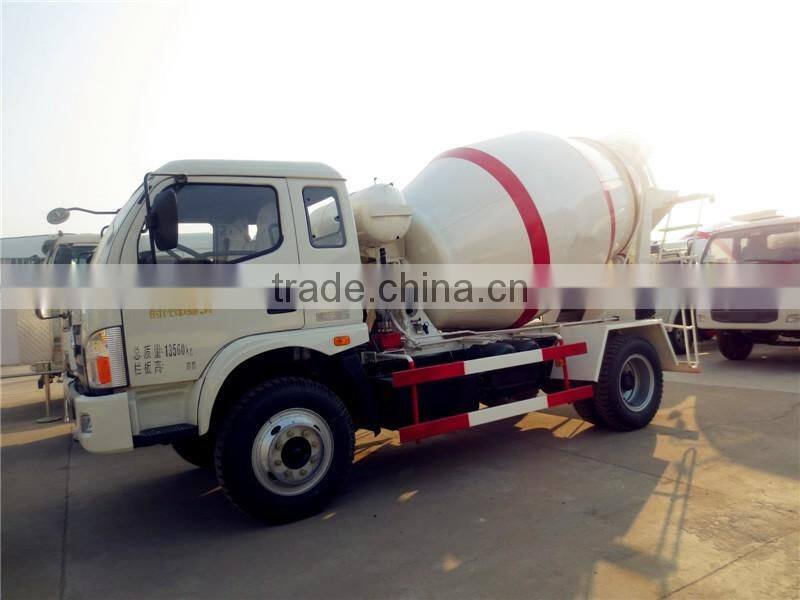

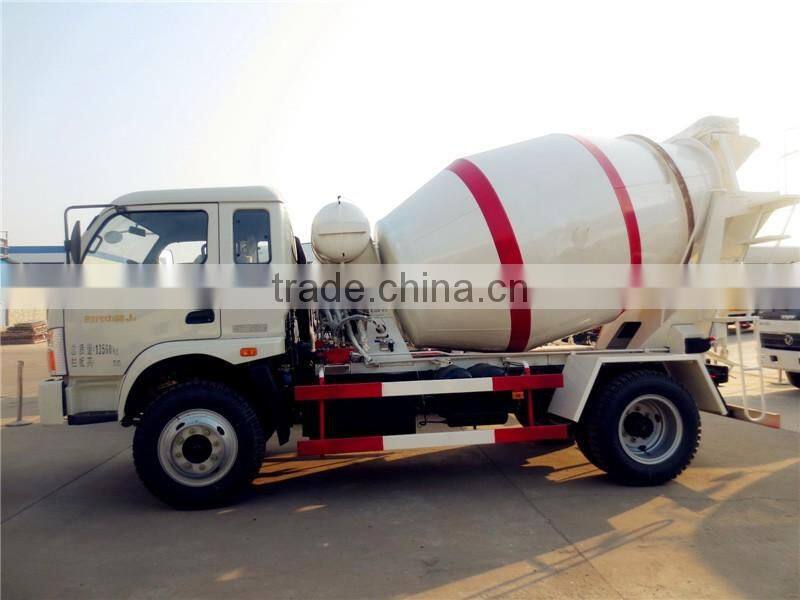

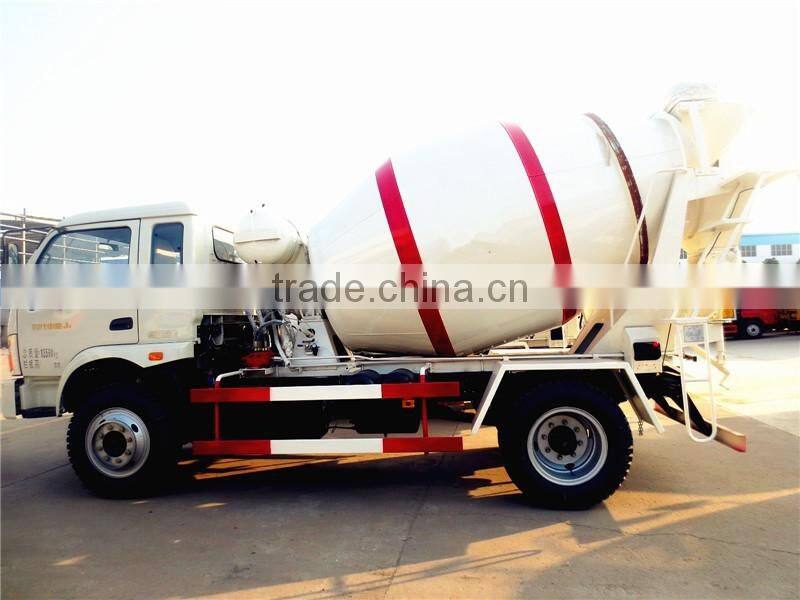

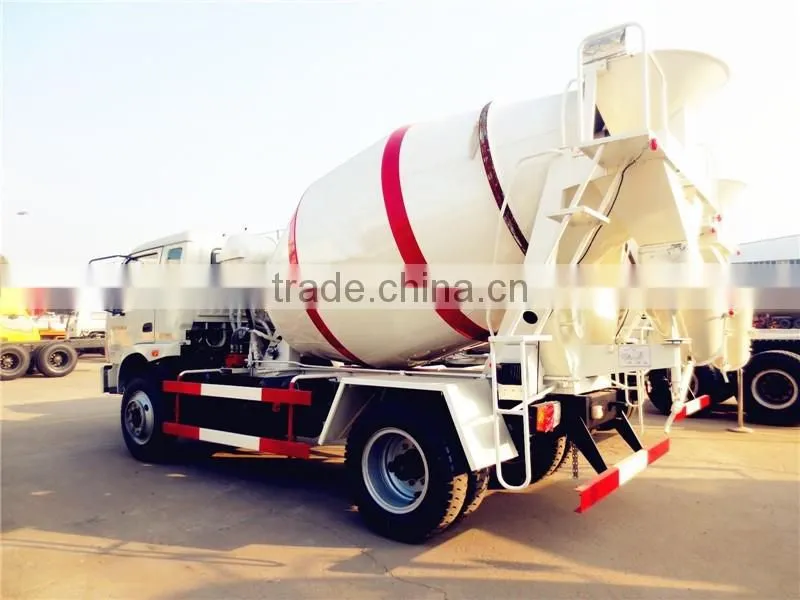

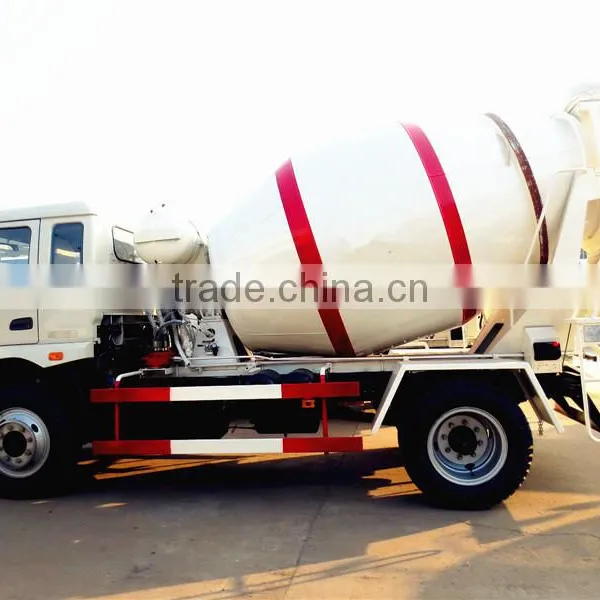

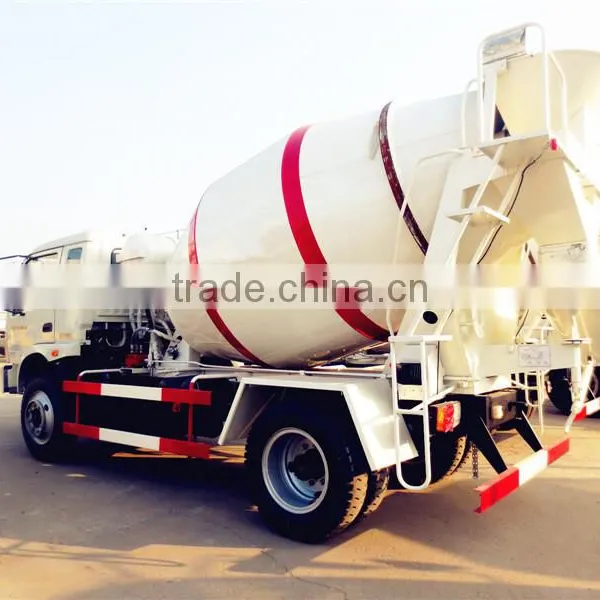

Foton Small 3 Cubic Meters Concrete Mixer Truck for Sale

Name: Foton Small 3 Cubic Meters Concrete Mixer Truck for Sale
Brand: Foton
SKU: 140781906
Availability: InStock

Hubei Ocean Special Automobile Co., Ltd.

US$ 23,000 - 29,800 MOQ: 1 Set

Key Specifications

Condition:

New

Place of Origin:

Hubei, China

Brand Name:

Foton

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai or other port of china

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Hubei, China

Brand Name Foton

Model Number BJ5142GJB-G1

Weight 13560

Dimension(L*W*H) 7125*2300*3600

Power(W) 96kw

Certification ISO9001:2008

Warranty 12 Months

After-sales Service Provided Engineers available to service machinery overseas

Foton small 3 cubic meters concrete mixer truck for sale

Product Description

1. We are professional manufacturers for the special vehicles,locate in Suizhou City,Hubei

province,which is the birthplace of special purpose vehicle .We coulld supply all kinds of brand of special

trucks, such as Dongfeng ,Faw,Jmc,Shacman,north Benz(beiben),Toton,Sinotruck,Jac,etc.

2.The drive type could be 4X2, 4X4, 6X2, 6X4, 6X6, 8X4

3.LHD (left hand drive) or RHD (right hand drive) vehicles are optional .

4.We can customize the truck according to your requirement, such as material, tanker capacity,

color, paint, logo, etc.

Below specification is just for your reference. More information of our Special Trucks, please

feel free to contact with Ms. April Zhu. we have a professional team and professional answer

for you.

Main specifications
Product model,name	BJ5142GJB-G1 Concrete mixer truck
Gross weight(Kg)	13560		Drive type	4x2
Payload(Kg)	7505		Overall demension(mm)	7125×2300×3600
Curb weight(Kg)	5860		Cab seats(man)	2
Approach/departure angle(°)	29/20,29/22		Front/rear hang(mm)	1245/1980
Number of axles	2		Wheelbase(mm)	3600
Axle load(Kg)	5150/8410		Max speed(Km/h)	80
Chassis specifications
Chassis model	BJ1143VJPFA-1		Manufacture	Beiqi Foton Motor Co.
Brand name	Foton		Overall dimension(mm)	6345×2300×2600
Tire specification	8.25-20		Tires No.	6
Steel spring number	9/11+9		Front track(mm)	1790
Fuel type	Diesel		Rear track(mm)	1725
Emission standard	Euro III		Transmission	5 forward gear
Cab	D1900 flat with a sleeper, Right-hand driving, luxurious interiors and seats, with the direction of power, the optional air conditioning
Engine model	Engine manufacutre	Displacement(ml)		Power(kw)
YC4D130-41	Guangxi Yuchai Machinery Co., Ltd..	4200		96
Concrete mixer truck performance
Tank volume(m3)	3-5	Material of tank		Q345
Pump	Made In China	Motor		Made In China
Reducer	Made In China	Surplus ratio		≤1.0
Water tank volume(L)	150L	The supplied water method		Pneumatic
Concrete mixer truck features
This is mainly used for the modern roads and major construction projects, which is for ensure the quality of the concrete poured by stirring the concrete slowly and continuously during transporting or one the construction site.
