SHACMAN F3000 truck concrete mixing with 8~10cbm capacity for sale
1.running stable
2.quality reliable
3.inner environmental comfortable
4.energy efficient
5.famous brand chassis
Main specifications | ||||
Product model,name | SX5256GJBDR364(F3000) Concrete mixer truck | |||
Gross weight(Kg) | 25000 | Drive type | 6 x 4 | |
Payload(Kg) | 12555,12490 | Overall demension(mm) | 9060×2500×3950 | |
Curb weight(Kg) | 12315 | Cab seats(man) | 2,3 | |
Approach/departure angle(°) | 28/18 | Front/rear hang(mm) | 1525/2560 | |
Number of axles | 3 | Wheelbase(mm) | 3575+1400 | |
Axle load(Kg) | 7000/18000 | Max speed(Km/h) | 77 | |
Chassis specifications | ||||
Chassis model | SX5256GJBDR364 | Manufacture | Shaanxi Automobile Group Co., Ltd. | |
Brand name | SHACMAN | Overall dimension(mm) | 8575×2495×3270 | |
Tire specification | 12.00R20 | Tires No. | 10 | |
Steel spring number | 10/12 | Front track(mm) | 2036 | |
Fuel type | Diesel | Rear track(mm) | 1860/1860 | |
Emission standard | Euro IV | Transmission | 9 forward gear(9JS135) | |
Cabin | Flat belt sleeper, Luxury interior and Instrument bar, with automatic constant temperature air conditioning . | |||
Engine model | Engine manufacutre | Displacement(ml) | Power(kw) | |
WP10.300E40 | Weichai Power Co., Ltd | 9726 | 221 | |
WP10.336E40 | Weichai Power Co., Ltd | 9726 | 247 | |
Concrete mixer truck performance | ||||
Tank volume(m3) | 8 ~10CBM | Material of tank | Q345 | |
Pump | Import | Motor | Import | |
Reducer | Import | Surplus ratio | ≤1.0% | |
Water tank volume(L) | 350L | The supplied water method | Pneumatic | |
Concrete mixer truck features | ||||
This is mainly used for the modern roads and major construction projects, which is for ensure the quality of the concrete poured by stirring the concrete slowly and continuously during transporting or one the construction site. | ||||

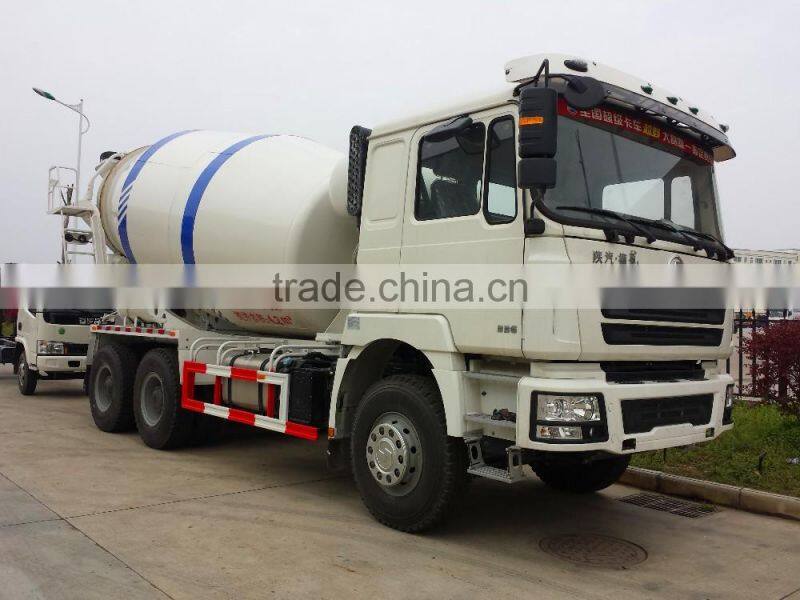

SHACMAN F3000 truck concrete mixing with 8~10cbm capacity for sale
image as below:
Production equipment introduction
