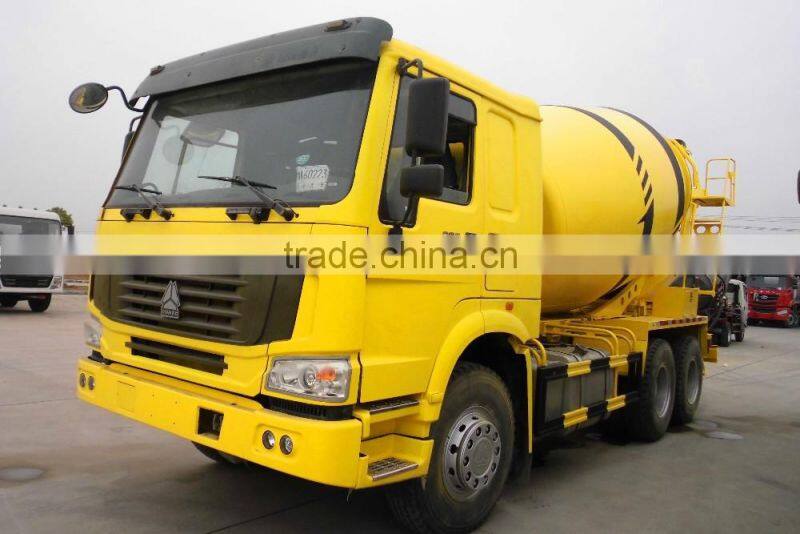

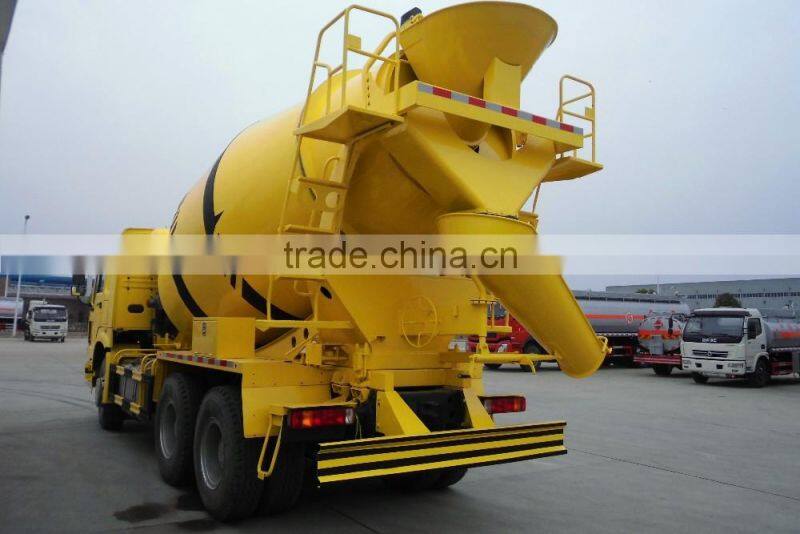

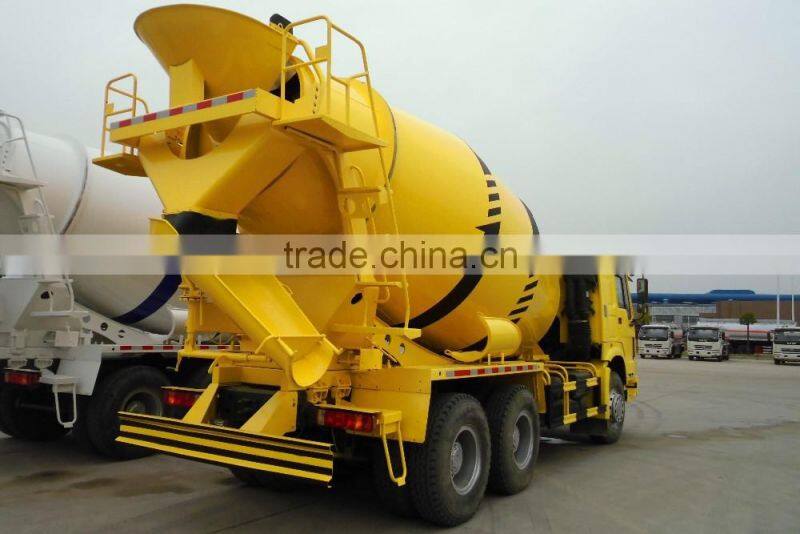

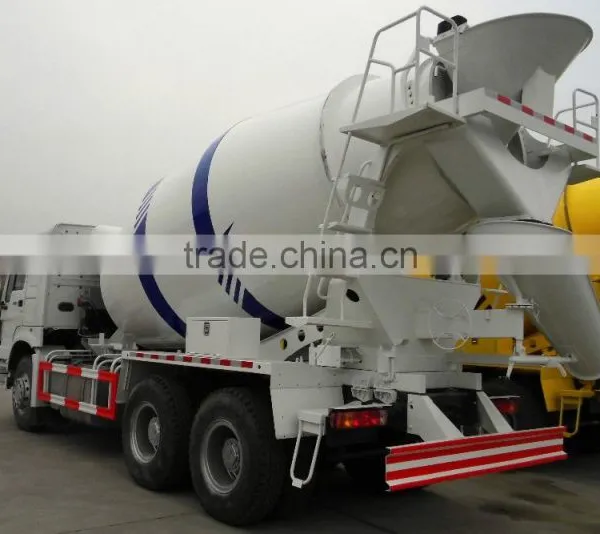

6x4 SINOTRUK HOWO concrete delivery truck for sale
Main specifications | ||||
Product model,name | CLW5250GJBZ3 Concrete mixer truck | |||
Gross weight(Kg) | 25000 | Drive type | 6x4 | |
Payload(Kg) | 10500 | Overall demension(mm) | 9760×2500×3990 | |
Curb weight(Kg) | 14370 | Cab seats(man) | 2 | |
Approach/departure angle(°) | 16/15 | Front/rear hang(mm) | 1500/2885 | |
Number of axles | 3 | Wheelbase(mm) | 4025+1350 | |
Axle load(Kg) | 7000/18000 | Max speed(Km/h) | 85 | |
Chassis specifications | ||||
Chassis model | ZZ1257N4048W | Manufacture | China National Heavy Duty Truck G roup Co., Ltd | |
Brand name | SINOTRUK | Overall dimension(mm) | 8575×2496×2958 | |
Tire specification | 12.00R20 | Tires No. | 10 | |
Steel spring number | 9/12,4/12,9/- | Front track(mm) | 2022 | |
Fuel type | Diesel | Rear track(mm) | 1830 | |
Emission standard | Euro III | Transmission | 10 forward gear | |
Cabin | Luxury interior and Instrument bar, with air conditioning and sleeper. | |||
Main engine model | Engine manufacutre | Displacement(ml) | Power(kw) | |
WD615.95E | China National Heavy Duty Truck G roup Co., Ltd | 9726 | 247 | |
Concrete mixer truck performance | ||||
Tank volume(m3) | 12 | Material of tank | Q345 | |
Pump | Import | Motor | Import | |
Reducer | Import | Surplus ratio | ≤1.0% | |
Water tank volume(L) | 350L | The supplied water method | Pneumatic | |
Concrete mixer truck features | ||||
This is mainly used for the modern roads and major construction projects, which is for ensure the quality of the concrete poured by stirring the concrete slowly and continuously during transporting or one the construction site. | ||||

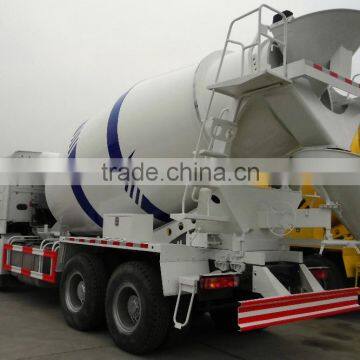

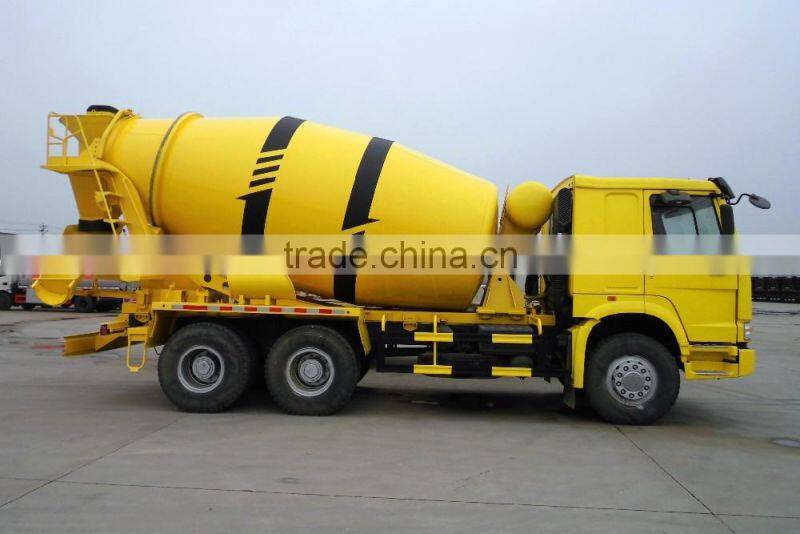

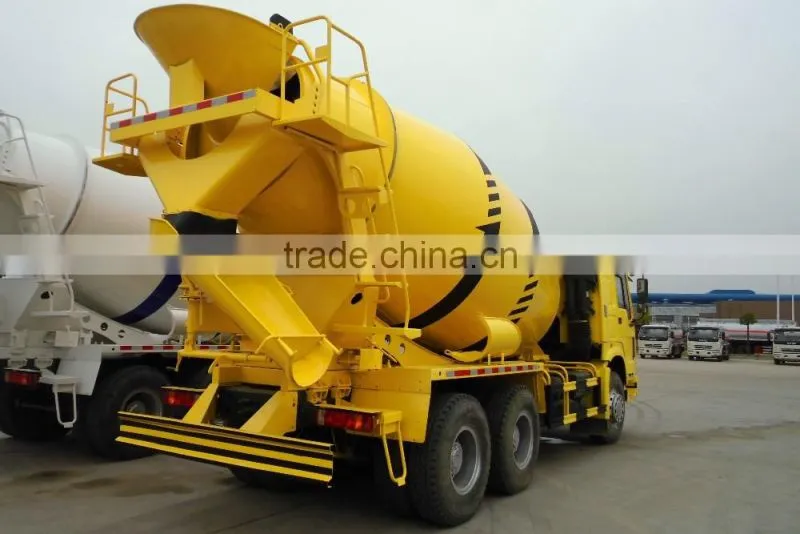

6x4 SINOTRUK HOWO concrete delivery truck for sale
Production equipment introduction
3.Quality
The above goods shall be in accordance with the Manufacturer’s standards and Chinese export standards.
4.TIME OF DELIVERY
Within 15-20 working days from the receipt date of deposit payment.
5.GUARANTEE PERIOD
The guarantee period for all equipment/accessories and spare parts shall be valid 12 months from Shipment date or 25000klm.
