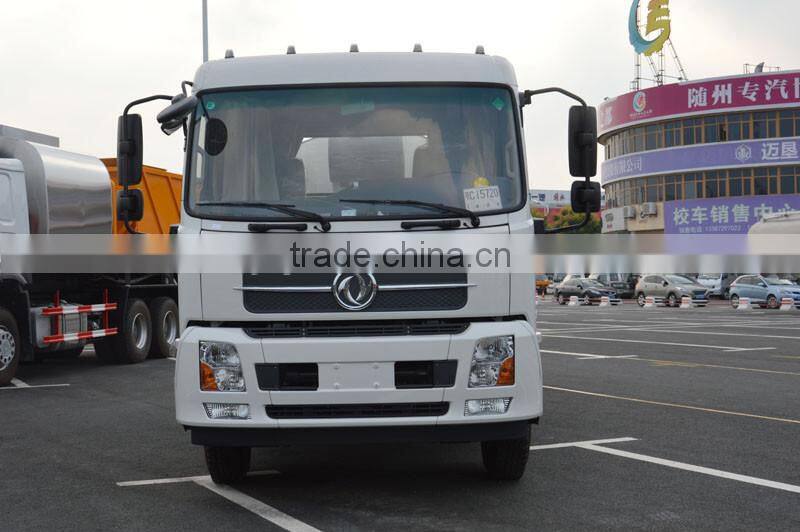

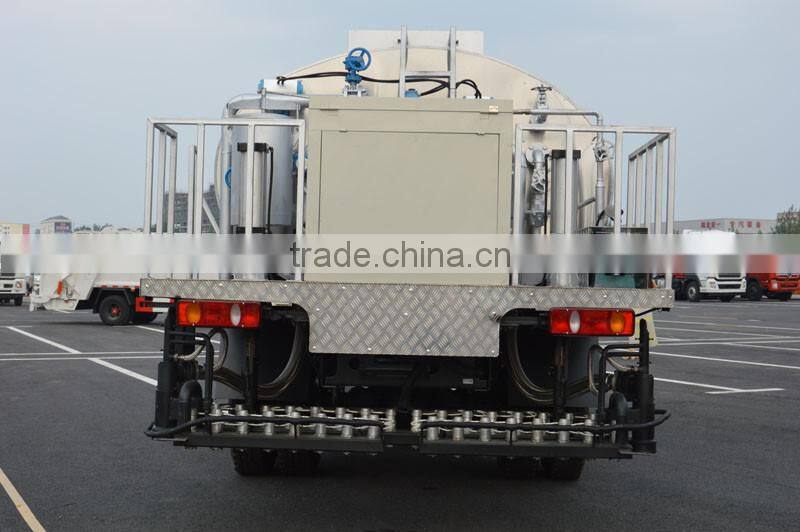

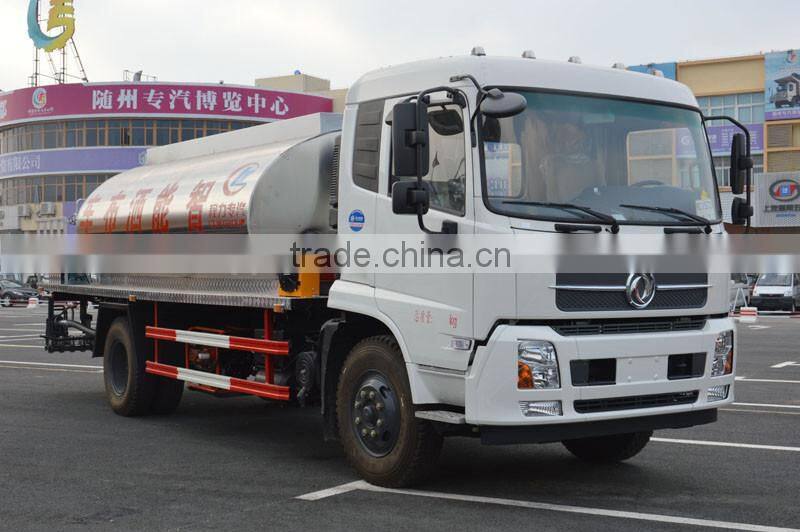

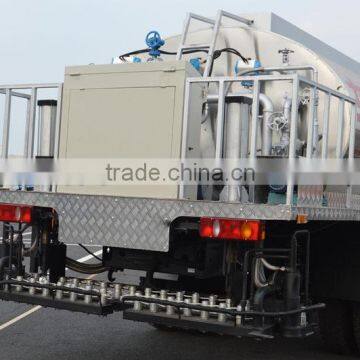

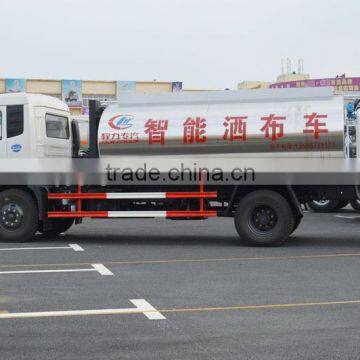

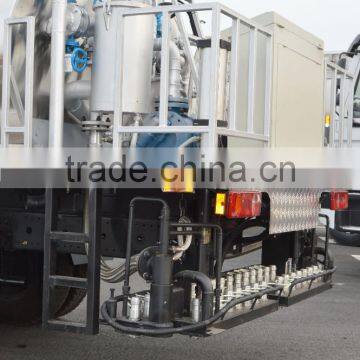

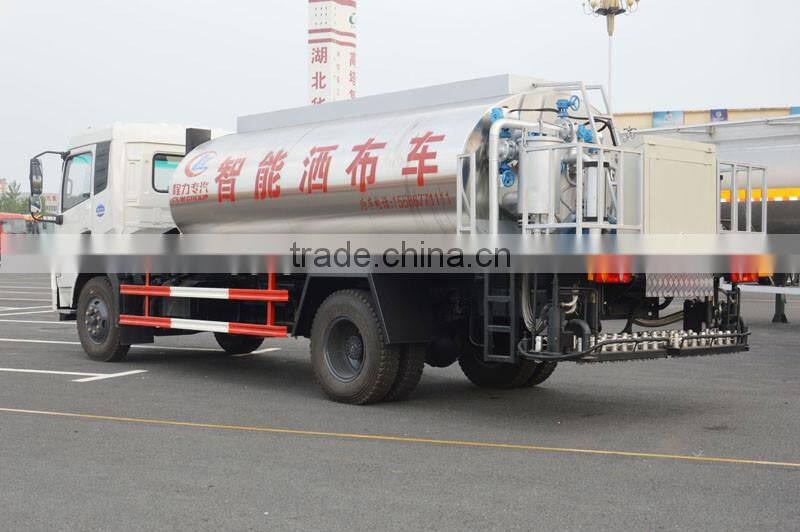

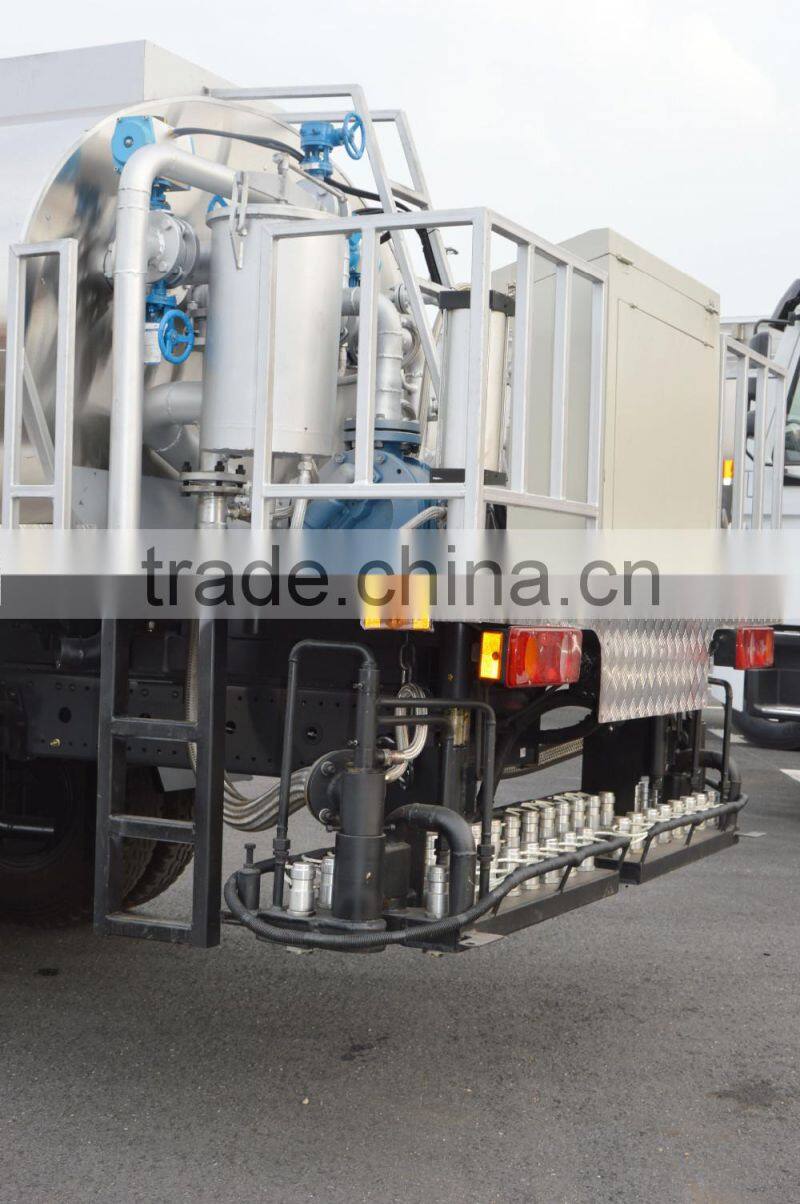

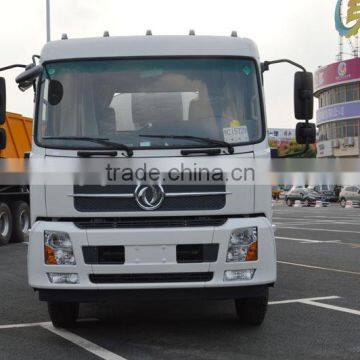

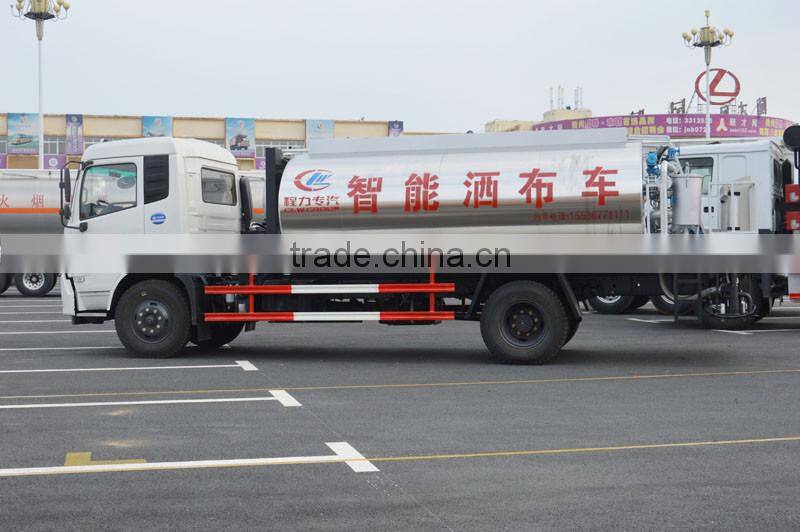

10 cbm Dongfeng Kingrun Asphalt Spray Truck
The bitumen distributor truck consist of chassis, asphalt tank, asphalt pump , spray system, hot oil heating system , hydraulic system, burning system, control system, pneumatic system and operational platform. It is a kind of professional distributing emulsified asphalt, heat diluted asphalt, asphalt, high viscosity modified asphalt, it is an intelligent automation high-tech truck. The truck sprinkles road surface with asphalt and spray the priming oil, waterproof layer, bond layer on asphalt roadbed. It is widely used in highway, urban road, airport and wharf.
No. | Item | Unit | Specification |
1 | Vehicle Name |
| Semi-intelligent Bitumen Spray Truck |
2 | Driving type |
| 4x2 |
3 | Tank Volume | M³(L) | 8-10 |
4 | Overall Dimension | mm | 8995×2490×3200 |
5 | Gross Weight | kg | 16000 |
6 | Payload | kg | 5705 |
7 | Curb Weight | kg | 10100 |
8 | Axle No. |
| 2 |
9 | Wheelbase | mm | 4700 |
10 | Max speed | Km/h | 90 |
11 | Chassis Model |
| DFL1160BX |
12 | Chassis Brand |
| Dongfeng |
13 | Chassis Manufacturer |
| Dongfeng Motor Company |
14 | Chassis Category |
| Cargo truck chassis |
15 | Engine Model |
| B190-33 |
16 | Engine Manufacturer |
| Dongfeng Cummins Engine Co., Ltd |
17 | Displacement / Power | ml/kw | 5900 / 140 |
18 | Emission Standard |
| Euro III |
19 | Fuel Type |
| Diesel |
20 | Tire specification / Number |
| 10.00R20 / 6+1 |
21 | Transmission |
| DF6S900 |
22 | Front Axle /Rear Axle | T | 7T/10T |
23 | Cab | D530 flat,one and half row flat cab, electric window regulator,central control door lock, PXD-B dashboard with air condition | |
24 | Cab Seats | man | 3 |
25 | Spray Width | mm | 6000 |
26 | Nozzle Quantity | pcs | 48 |
