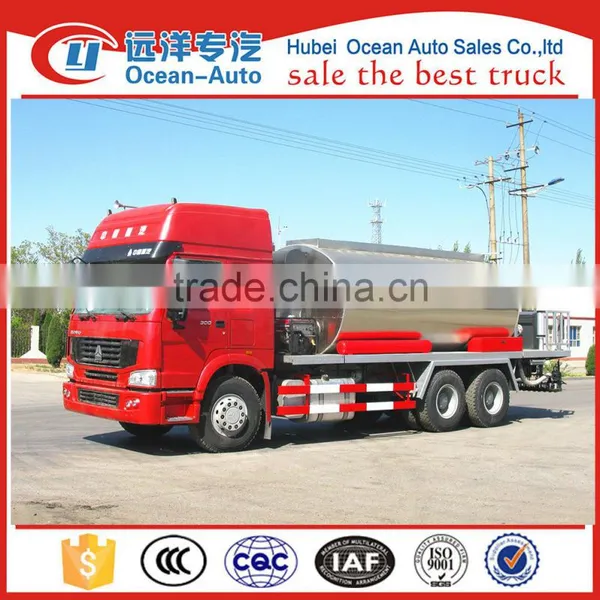

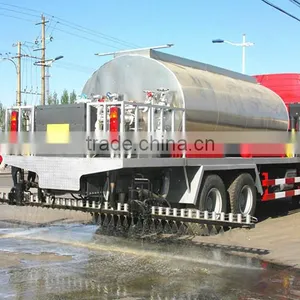

SINOTRUK HOWO 12ton asphalt transportation truck for sale
Truck introduction & Function

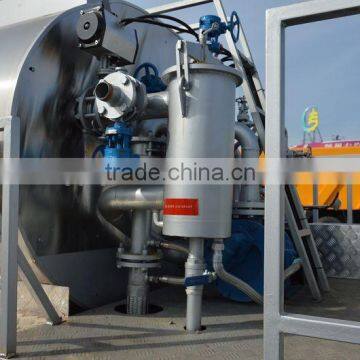

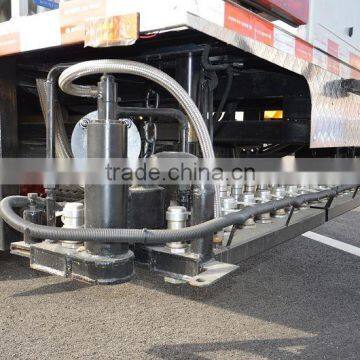

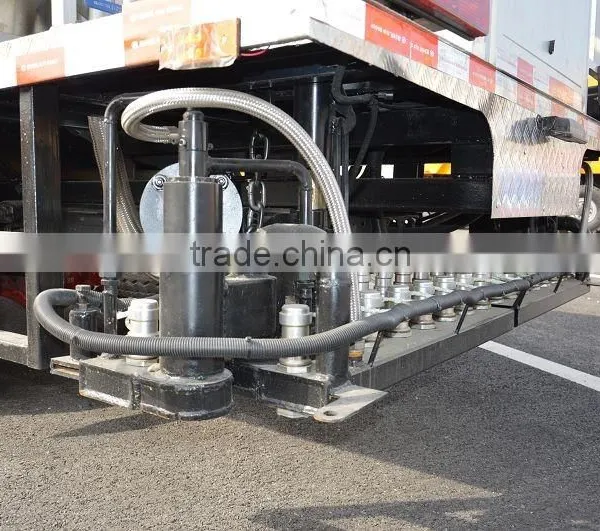

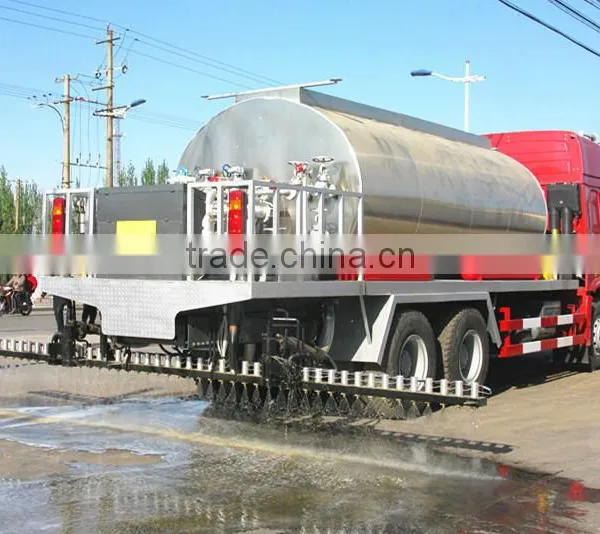

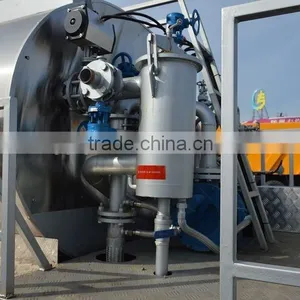

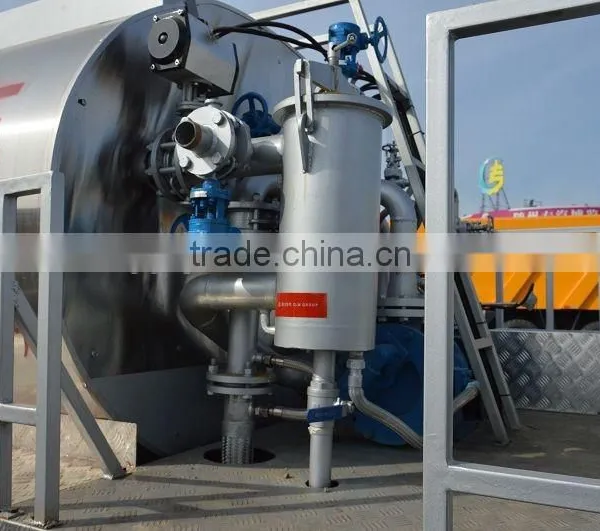

The bitumen distributor truck consist of chassis, asphalt tank, asphalt pump , spray system, hot oil heating system, hydraulic system, burning system, control system, pneumatic system and operational platform. It is a kind of professional distributing emulsified asphalt, heat diluted asphalt, asphalt, high viscosity modified asphalt, it is an intelligent automation high-tech truck. The truck sprinkles road surface with asphalt and spray the priming oil, waterproof layer, bond layer on asphalt roadbed. It is widely used in highway, urban road, airport and wharf.
No. | Name | Technical specification | Remarks |
1 | Chassis | ZZ1257M4647C | SINOTRUK |
2 | Engine | WD615.93 | SINOTRUK |
3 | Displacement / Power | 9726ml/213kw |
|
4 | Emission standard | Euro III |
|
5 | Fuel type | Diesel |
|
6 | Wheelbase | 4600+1350 mm |
|
7 | Tire specification | 12.00-20 |
|
8 | Gross weight | 25000 kg |
|
9 | Payload | 9000 kg |
|
10 | Curb weight | 15870 kg |
|
11 | Asphalt Tank volume | 12000 TO 14000 L |
|
12 | Hydraulic pump | CBQ563-L | Made in China |
13 | Asphalt pump hydraulic drive pump | 05-110-BD31 | Made in China |
14 | relief valve / reversing valves | Made in China | Made in China |
15 | proportional valve | EFBG-03-160-HF | Made in Taiwan |
16 | Asphalt pump | QGB950( max displacement 950L/min) | Made in China |
17 | Burner | G20 | Made in Italy |
18 | Heat-transfer oil pump | 40-25-160 | Made in China |
19 | Control system | Semi intelligent control(Manual:one operation two) |
|

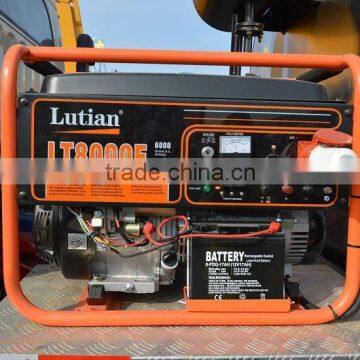

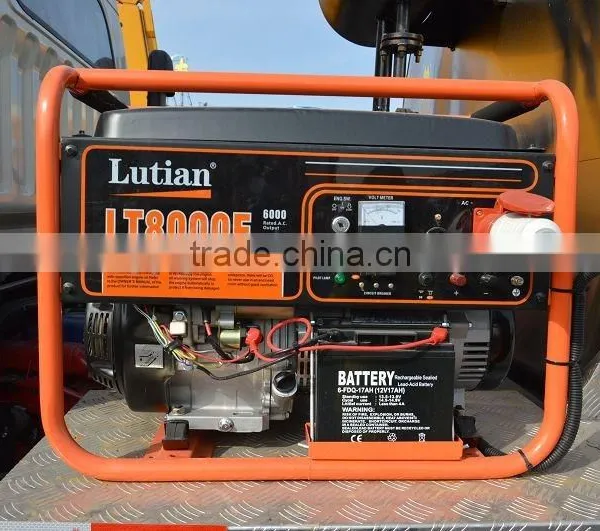

20 | Generator | 6 KW( gasoline generator ) | Honda |
