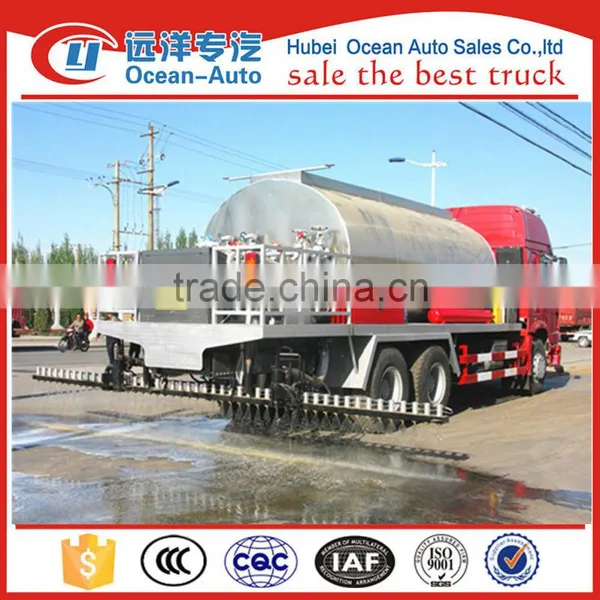

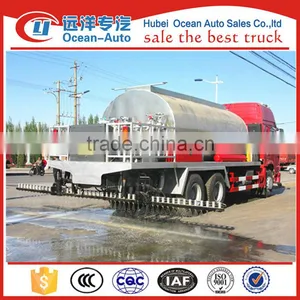

Help CenterSINOTRUK HOWO 12000L Bitumen Distributor Paving Truck for Sale
Related Products
-
SINOTRUK HOWO 14ton Asphalt Pavement Distributor Truck for SaleUS$ 72,000 - 85,000MOQ: 1 Set -
Sinotruk 8000L Pavement Maintenance Truck/intelligent Asphalt Distributor Truck for SaleUS$ 70,000 - 73,500MOQ: 1 Set
-
Famous China Howo Truck,bitumen Emlsion Sprayer for Sale in Truck MarketUS$ 43,000 - 50,000MOQ: 1 Set
-
China Heay Duty Sinotruck Howo Heated Asphalt Tanker Truck With Left Hand Drive and RHDUS$ 43,000 - 50,000MOQ: 1 Set
-
Factory Directly Sale Howo Bitumen Sprayer Truck,liquid Asphalt Tanker Truck for SaleUS$ 43,000 - 50,000MOQ: 1 Set

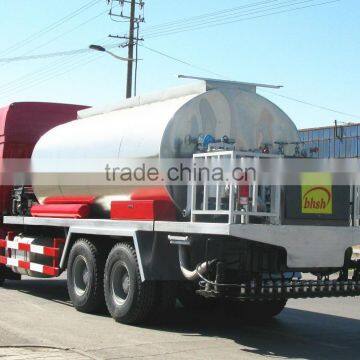

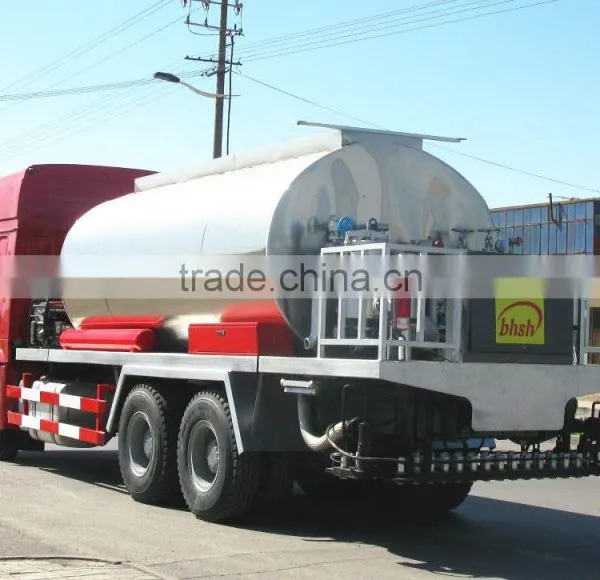

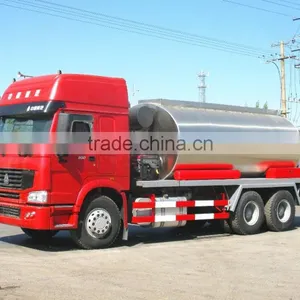

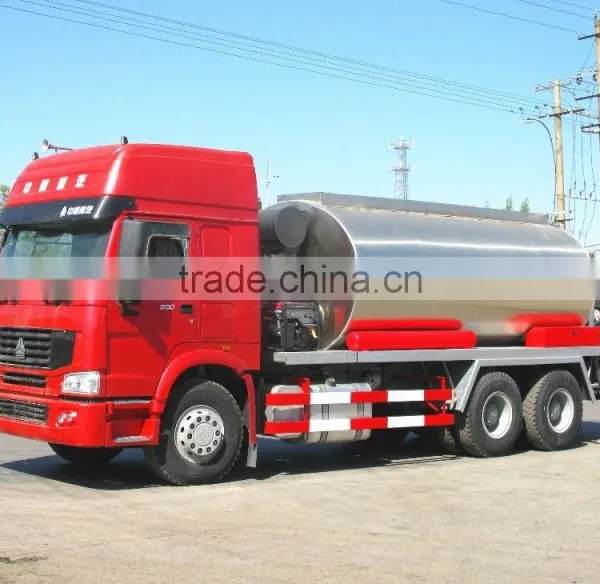

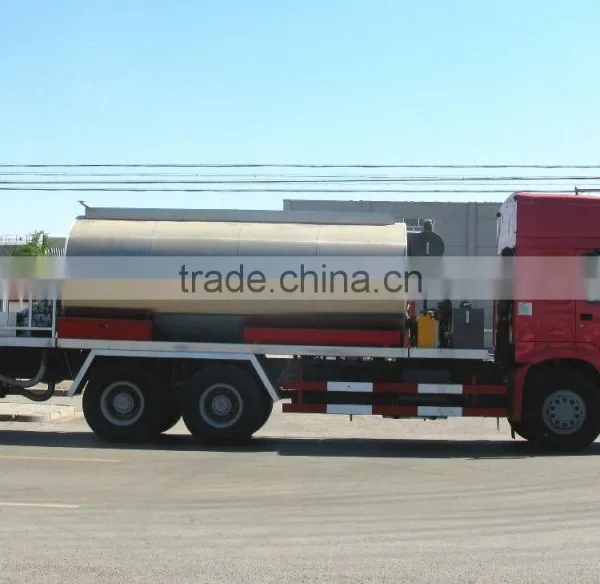

SINOTRUK HOWO 12000L bitumen distributor paving truck for sale
Truck introduction & Function
The bitumen distributor truck consist of chassis, asphalt tank, asphalt pump , spray system, hot oil heating system, hydraulic system, burning system, control system, pneumatic system and operational platform. It is a kind of professional distributing emulsified asphalt, heat diluted asphalt, asphalt, high viscosity modified asphalt, it is an intelligent automation high-tech truck. The truck sprinkles road surface with asphalt and spray the priming oil, waterproof layer, bond layer on asphalt roadbed. It is widely used in highway, urban road, airport and wharf.

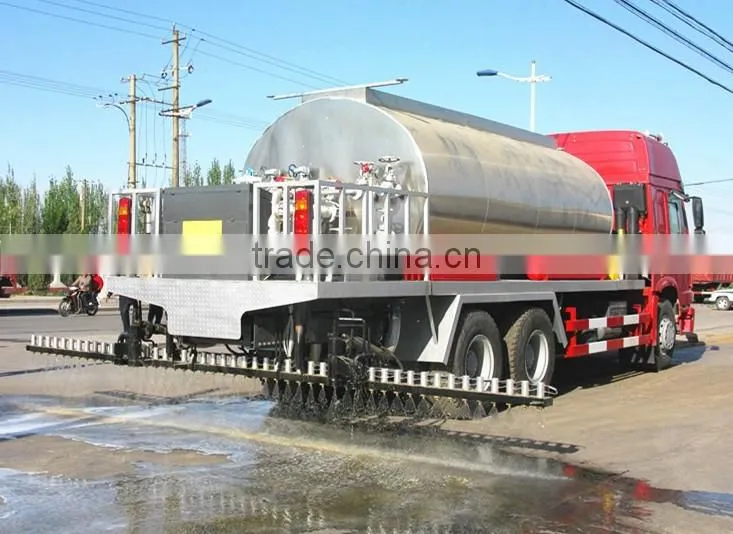

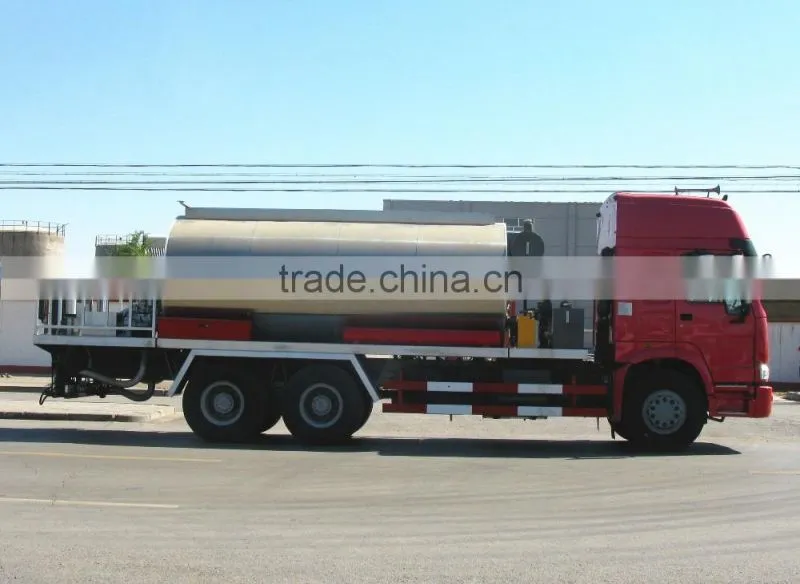

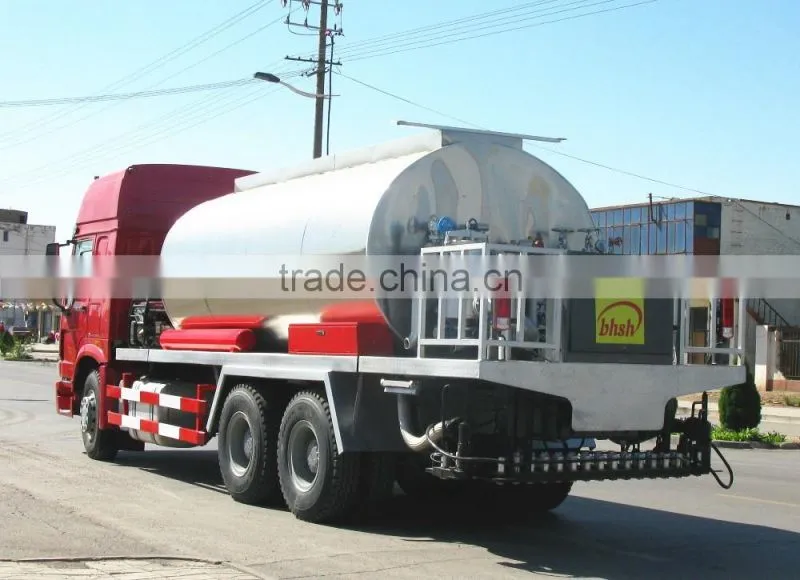

SINOTRUK HOWO 12000L bitumen distributor paving truck for sale
No. |
Name |
Technical specification |
Remarks |
1 |
Chassis |
ZZ1257M4647C |
SINOTRUK |
2 |
Engine |
WD615.93 |
SINOTRUK |
3 |
Displacement / Power |
9726ml/213kw |
|
4 |
Emission standard |
Euro III |
|
5 |
Fuel type |
Diesel |
|
6 |
Wheelbase |
4600+1350 mm |
|
7 |
Tire specification |
12.00-20 |
|
8 |
Gross weight |
25000 kg |
|
9 |
Payload |
9000 kg |
|
10 |
Curb weight |
15870 kg |
|
11 |
Asphalt Tank volume |
12000 TO 14000 L |
|
12 |
Hydraulic pump |
CBQ563-L |
Made in China |
13 |
Asphalt pump hydraulic drive pump |
05-110-BD31 |
Made in China |
14 |
relief valve / reversing valves |
Made in China |
Made in China |
15 |
proportional valve |
EFBG-03-160-HF |
Made in Taiwan |
16 |
Asphalt pump |
QGB950( max displacement 950L/min) |
Made in China |
17 |
Burner |
G20 |
Made in Italy |
18 |
Heat-transfer oil pump |
40-25-160 |
Made in China |
19 |
Control system |
Semi intelligent control(Manual:one operation two) |
|
20 |
Generator |
6 KW( gasoline generator ) |
Honda |

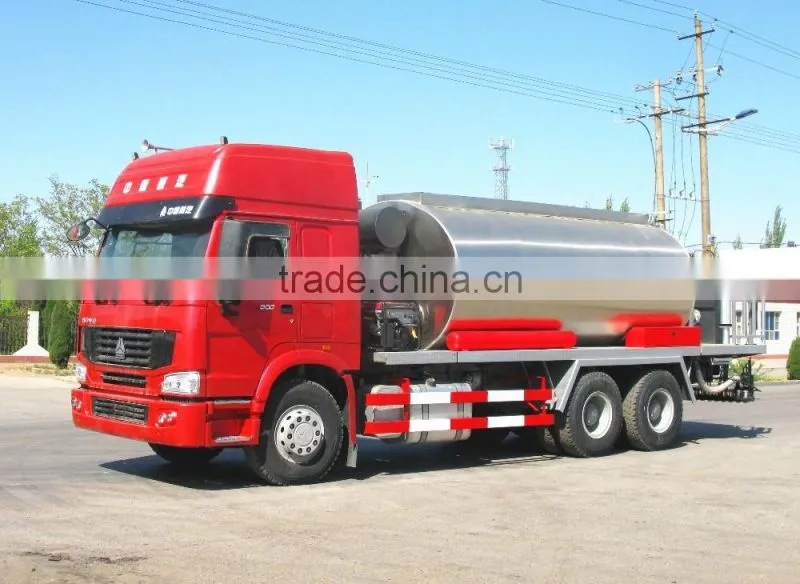

SINOTRUK HOWO 12000L bitumen distributor paving truck for sale
